Home > products > Fluid Level Meter >
Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL

Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KUM2500A

Document:

KUM2500A Ultrasonic Fuel Le....2.pdf

Contact Us
Request A Quote
Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL
Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL
Product Details
Working Voltage:
DC 9V~36V.
Working Temperature:
-30℃~+80℃
Storage Temperature:
-40℃~+85℃.
Measure Range:
3~100cm (4m Can Be Customized).
Accuracy:
0.5%FS
Peripheral Interface:
RS232 / RS485 / TTL
Inbreaking Protection:
IP67
Highlight:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
89
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price KDI Series Display Controller Supporting Multi - Machine Communication online Video

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price
Good price KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution online Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price
Good price Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation online Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price
Good price KDI Series Light Column Display Controller With Digital And Analog Measurement online Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL

Introduction

The Non-invasive ultrasonic level transmitter is a crucial device for fuel monitoring. It operates without direct contact, ensuring safety and minimal interference. With peripheral interfaces like RS232, RS485, and TTL, it enables seamless data transfer and integration with other systems. This transmitter offers accurate and reliable fuel level measurements for efficient management.

Working Principle

KUM2500A ultrasonic level sensor uses the ultrasonic echo ranging principle. The sensor is installed on the outer surface of the bottom of the fuel tank, and sends out ultrasonic signals from the bottom. When it encounters the liquid surface, it reflects back, and then calculates the liquid level height according to the time and speed. At the same time, combined with digital signal processing technology, it overcomes the influence of the container wall, realizes high-precision non-contact measurement of the liquid level in the container, and can meet the requirements of industrial applications in application.

Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 0

Features

  • Long range
  • High precision
  • Simple installation
  • Multiple interface
  • High stability

Application

  • Internet of vehicles solutions
  • Industrial control - textile mills
  • Rainwater monitoring
  • Road water monitoring

Technical Parameter

No. Item Introduction
1 Working Voltage DC 9V~36V.
2 Working Temperature -30℃~+80℃
3 Storage temperature -40℃~+85℃.
4 Measure Range 3~100cm (4m can be customized).
5 Maximum power consumption 0.36W/12VDC
6 Measurement accuracy ±0.5%FS
7 Measurement resolution 0.1mm
8 Inbreaking Protection IP67
9 Peripheral interface RS232 / RS485 / TTL
10 Tank Materials conventional fuel tanks such as aluminium alloy/iron/plastic
11

Communication port

parameter

 default baud rate is 9600 (the baud rate can be configured), no parity bit, 8 data bits, 1 stop bit, and no flow control.

Note: About the measurement range:

• For 5mm thick Q235 type steel plate, with No. 0 diesel, the measuring range is 3~100cm

• The rest is based on the actual height measured, depending on the material and thickness of the container.

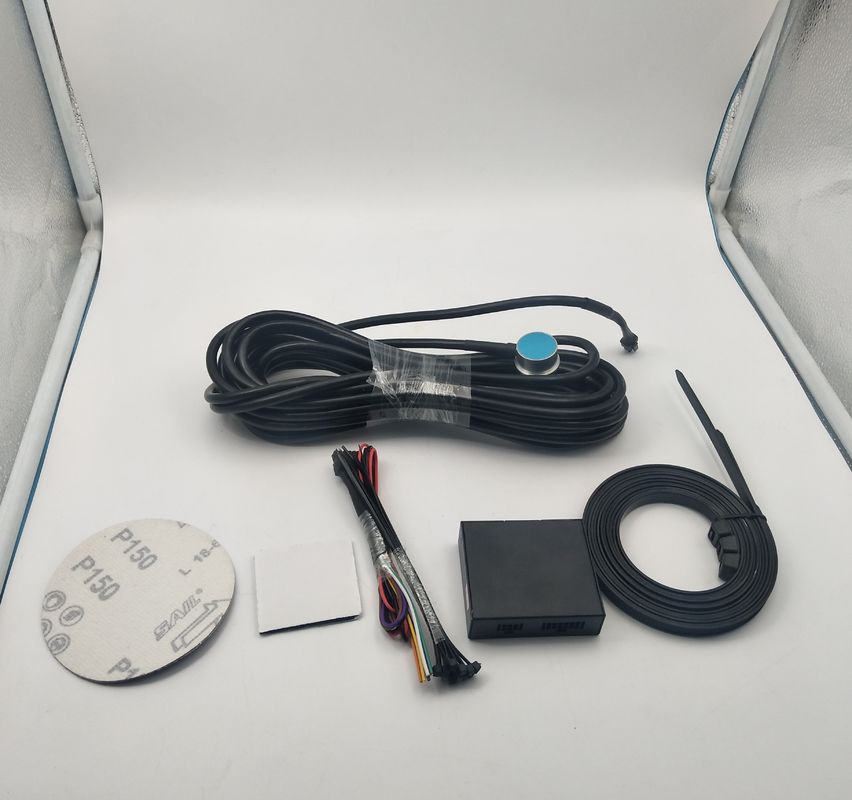

Package



Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 1c

Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 2





In order to choose the suitable pressure sensor for you, please send us below information with the feedback.



1. Application field
2. accuracy
3. output signal
4. power supply voltage
5. Measuring range
6. medium
7. temperature range



Application Picture



Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 3

Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 4

Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 5Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 6

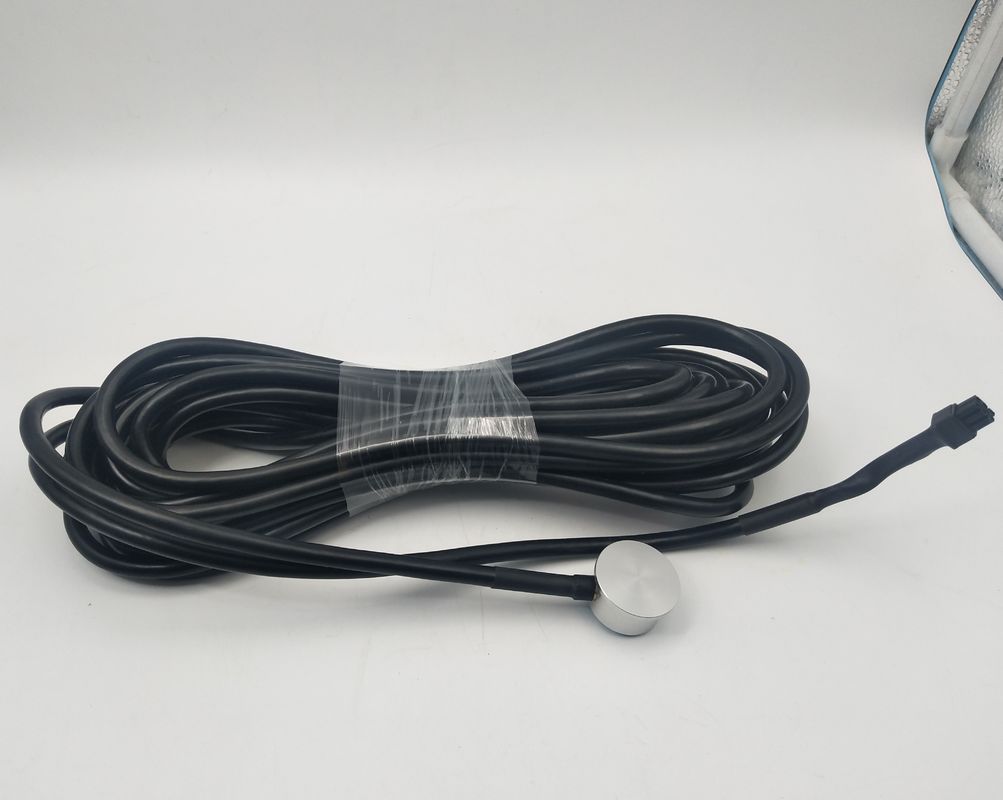

Product Picture



Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 7Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 8Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 9

Feedback

Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 10





Certifications

Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 11



Company Information

Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Non-invasive ultrasonic level transmitter for fuel monitoring with peripheral interface RS232 / RS485 / TTL 12



Our Services

  • Your inquiry will be replied in 24hours.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design product and some of our sensors.
  • Protection for your marketting area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
