Product Description

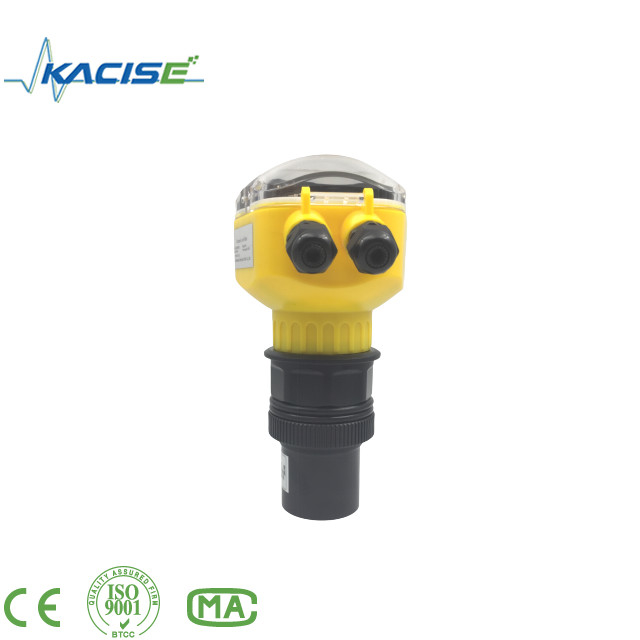

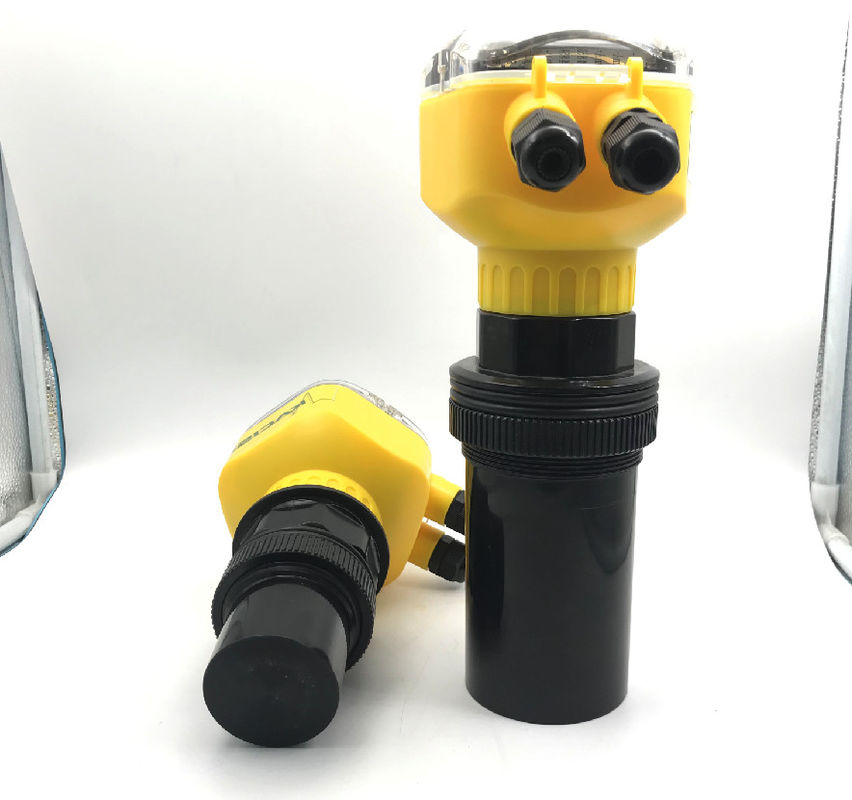

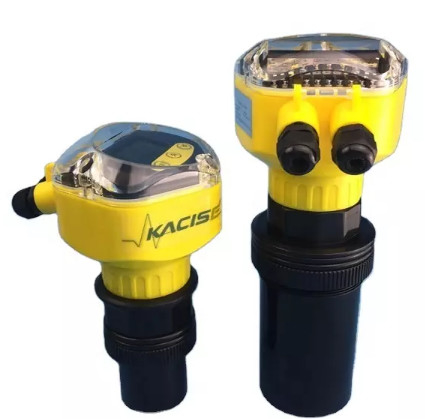

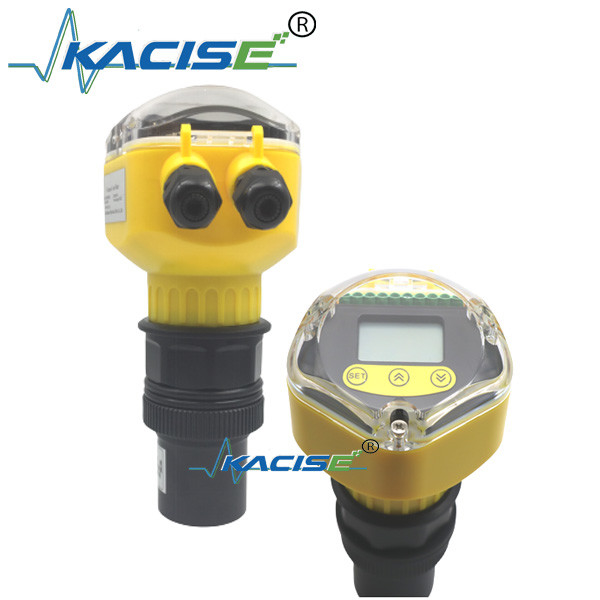

High precision ultrasonic level meter Ultrasonic level detector 24vdc power supply

The High precision ultrasonic level meter, also known as an Ultrasonic level detector, is a remarkable device. Powered by a 24vdc supply, it utilizes ultrasonic technology to measure levels with outstanding accuracy. It is suitable for a wide range of applications, from industrial tanks to water reservoirs, providing reliable and detailed level data for efficient operation and control.

1. Technical Features:

Non-contact, can be used in various applications;
High accuracy: 0.5%, 1%
Various types of probes are available to meet the requirements of various applications.

2. Technical Specifications:

Specs	Value
Pressure Voltage	5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Accuracy	0.5%, 1.0%
Display	LCD
Ambient Temperature	Display instrument-20～+60℃ transducer-20～+80℃
Medium	liquid and solid
Analog Output	4-20mA
Digital Output	RS485, RS232 (both are optional)
Power Supply	24Vdc
Protection Grade	Display instrument IP65,transducer IP68
Probe Type	PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy

3. Structure:

High precision ultrasonic level meter Ultrasonic level detector 24vdc power supply 0

4. Applications and Installations:

Distance measurement
Depth measurement

High precision ultrasonic level meter Ultrasonic level detector 24vdc power supply 1

High precision ultrasonic level meter Ultrasonic level detector 24vdc power supply 2

High precision ultrasonic level meter Ultrasonic level detector 24vdc power supply 3

5.Company Information

High precision ultrasonic level meter Ultrasonic level detector 24vdc power supply 4

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
