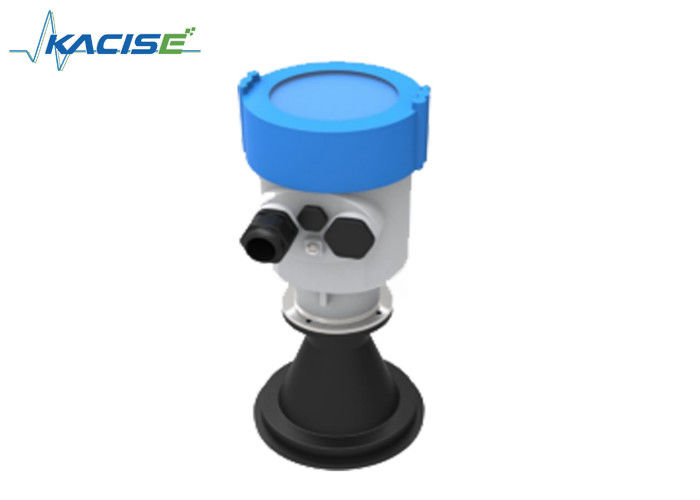

Name: Radar Fluid Level Meter 80G Frequency Modulation 3° Beam Angle CE Certification
Brand: KACISE
SKU: KLD-800
Rating: 4.8 (130 reviews)

Home Products Fluid Level Meter

Radar Fluid Level Meter 80G Frequency Modulation 3° Beam Angle CE Certification

Product Details:

Place of Origin:	China (Mainland)
Brand Name:	KACISE
Certification:	CE
Model Number:	KLD-800

Payment & Shipping Terms:

Minimum Order Quantity:	0-100
Packaging Details:	each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Frequency:	76GHz-81GHz	Measuring Range:	120meters
Accuracy:	±1mm	Explosion-proof:	Exia IIC T6
Protection:	IP67	Blind Area:	7~8cm
Beam Angle:	3°	Power Supply:	18~28VDC
High Light:	ultrasonic level transmitter , ultrasonic liquid level sensor

Radar Level Meter 80G Frequency Modulation High Accuracy Small Blind Area and with large range for strond dust area

Product Description

We also produce 26G, 6G and Guided wave radar level meter.

Introduction

76-81 GHZ frequency modulation wave FMCW radar products (also called a millimeter wave radar), because it USES higher than Ku band radar frequency millimeter wave band, the remote target detection, strong smoke dust environment, remote imaging, the respect such as multi-spectral imaging have important applications, and can detect more than microwave radar small goal and achieve a more accurate positioning, with a higher resolution and more privacy.

Application field

The emission angle is less than 3 °, which is suitable for narrow space or guided wave pipeline measurement
Measuring range could reach to 120M, which is suitable for the measurement of large storage tanks
Measurement dead zone is in the range of 7-8CM, suitable for the measurement of small storage tanks
The product has extremely high measurement accuracy, suitable for high-precision measurement level measurement
The product has rich echo processing algorithms and empirical data of various working conditions; it has unique advantages than other similar products in the application of extremely harsh working conditions such as strong dust, steam, or special process storage tanks with stirring and heating rods.

Features of 80G Radar Level Sensor

76GHz-81GHz FM wave radar
5GHz ultra-large FM scanning frequency width, wide application
Support standard HART, RS485 / MODBUS bus protocol
Support operation mode such as upper computer setting software, tank side table, etc.
24VDC power supply
Simple installation structure, adapt to various installation forms on site

Parameters

Frequency	76GHz~81GHz,FM sweep frequency width 5GHz
Range	0: 0.2 m~60m(Solid)(T0 Series blind area add 0.2m) 1: 0.0 m ~30m(Liquid)(T0 Series blind area add 0.2m) 2: 0.6m~120m(Solid)(T0Series blind area add 0.2m)
Accuracy	±1mm
Beam Angle	3°,8°
The usage dielectric constant range	>=2
Power Supply	18~28.0VDC, 4 wire 2 wire
Communication Mode	MODBUS HART
Signal Output	4~20mA or RS-485 4~20mA
The Fault Output	3.8mA,4mA,20mA,21mA, maitain
Field operation / programming	128×64 dot matrix display /4 button Upper computer setup software can be configured
Temperature/humidity	-40~85℃/≤95%RH
Shell material	Alluminum alloy, stainless steel
Antenna Type	Lens antenna, can be equipped with lens antenna shield/anti-corrosion antenna/antenna cooling paste/quartz isolation flange
Process pressure	-0.1~2MPa
Outline	Ø100*270mm
Cable Connection	M20*1.5
Commend cable	AWG18 or 75mm²
Protection Grade	IP67
Explosion Grade	ExdiaIICT6
Installation	Screw or flange

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services

Your inquiry will be replied in 24hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
OEM&ODM, we can help you to design and your request will be put into product.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
Discounts are offered based on order quantities.
We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
