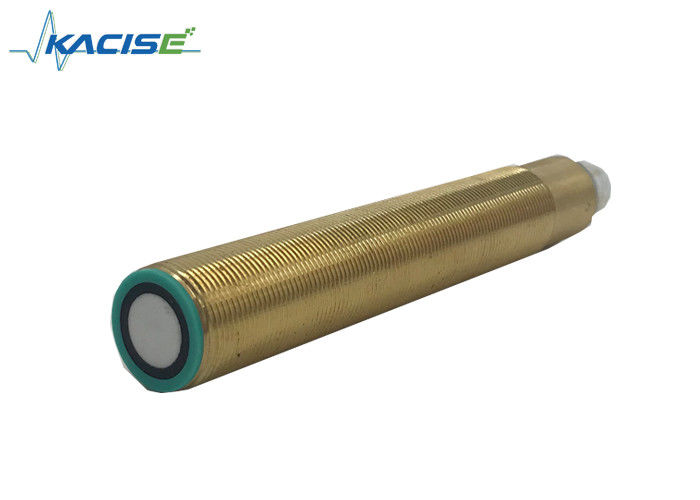

    Product: Ultrasonic Distance Sensor Detection Range: 50mm~1000mm
    Transducer Frequency: 40KHZ Operating Voltage: 24VDC
    Limit Working Voltage: 3.6VDC~30VDC IP Grade: IP67
    High Light:

    ultrasonic level transmitter

    ,

    ultrasonic liquid level sensor

    High accuracy Small Blind Small Distance Ultrasonic Distance Sensor Transducer Switch

    1. Parameter

    General specifications

    Sensing range 100... 1000 mm
    Adjustment range
    Unusable area 0 ... 100 mm
    Standard target plate 100 mm x 100 mm
    Transducer frequency approx.220 kHz
    Response delay approx. 50 ms



    Indicators/operating means

    LED blue power-on



    LED yellow

    indication of the switching state

    flashing: program function object detected



    LED red

    permanently red: Error Red,flashing:program function,object not detected

    Electrical specifications

    Operating voltage UB 15 ... 30 V DC , ripple 10 %SS
    No-load supply current I0 ≤ 45 mA

    Input

    Input type 1 TEACH-IN input

    operating range A1: -UB ... +1 V, operating range A2: +6 V ...

    +UB

    input impedance: > 4.7 kΩ ; TEACH-IN program pulse: ≥ 1 s

    Output

    Output type 1 switch output E4, NPN NO/NC,programmable
    Rated operating current Ie 200 mA , short-circuit/overload protected
    Default setting Switching point A1:70mm Switching point A2: 800mm
    Voltage drop ≤ 2.5 V
    Repeat accuracy ≤1 %
    Switching frequency f ≤ 13 Hz
    Range hysteresis H 2 % of the set operating distance
    Temperature influence ±1.5% of full-scale value

    Ambient conditions

    Ambient temperature -25…70℃(248...343K)
    Storage temperature -40…85℃(233...358K)

    Mechanical specifications

    Connection V1 connector(M12×1),4-pin
    Protection degree IP67
    Material Housing brass, nickel-plated
    Transducer

    epoxy resin/hollow glass sphere mixture;

    foam polyurethane, cover PBT





    2. Dimensions

    High Accuracy Fluid Level Meter Waterproof Ultrasonic Sensor 50mm - 1000mm Range 0

    3. Electronic interface and signals definition

    High Accuracy Fluid Level Meter Waterproof Ultrasonic Sensor 50mm - 1000mm Range 1High Accuracy Fluid Level Meter Waterproof Ultrasonic Sensor 50mm - 1000mm Range 2


    4. Description of Sensor Functions

    Adjust the paramater

    The ultrasonic sensor features a switch output with two teachable switching points. These are set by applying the supply voltage - UB or + UB to the TEACH-IN input. The supply voltage must be applied to the TEACH-IN input for at least 1 s.LEDs indicate whether the sensor has recognised the target during the TEACH-IN procedure. Switching point A1 is taught with - UB,A2 with +UB. Eight different output functions can be set.
    Switching point, Setting distance only after power on. The internal clock can assure can't be changed after 5 mins when power on. If want to change the switching point, the user can only setting the request distance after power restart.

    TEACH-IN window mode, normally-open function

    - Set target to near switching point

    - TEACH-IN switching point A1 with - UB

    - Set target to far switching point

    - TEACH-IN switching point A2 with + UB

    TEACH-IN window mode, normally-closed function

    - Set target to far switching point

    - TEACH-IN switching point A2 with - UB

    - Set target to near switching point

    - TEACH-IN switching point A1 with + UB

    TEACH-IN switching point, normally-open function

    - Set target to near switching point

    - TEACH-IN switching point A1 with - UB

    - Cover sensor with hand or remove all objects

    from sensing range

    - TEACH-IN switching point A2 with + UB

    TEACH-IN switching point, normally-closed function

    - Cover sensor with hand or remove all

    objects from sensing range

    - TEACH-IN switching point A2 with - UB

    - Set target to near switching point

    - TEACH-IN switching point A1 with + UB

    TEAC-IN large hysteresis interval, normally-open mode

    - Set target to near switching point

    - TEACH-IN switching point A1 with + UB

    - Set target to far switching point

    - TEACH-IN switching point A2 with - UB

    TEAC-IN large hysteresis interval, normally-closed mode

    - Set target to far switching point

    - TEACH-IN switching point A2 with + UB

    - Set target to near switching point

    - TEACH-IN switching point A1 with - UB

    TEACH-IN detection of objects presence normally open mode

    - Cover sensor with hand or remove all objects from

    sensing range

    - TEACH-IN switching point A2 with - UB

    - Cover sensor with hand or remove all objects from

    sensing range

    - TEACH-IN switching point A2 with + UB

    TEACH-IN detection of objects presence normally closed mode

    - Cover sensor with hand or remove all objects from sensing range

    - TEACH-IN switching point A2 with +UB

    - Cover sensor with hand or remove all objects from sensing range

    - TEACH-IN switching point A2 with -UB

    Default setting of switching point

    A1=blind range,A2=nominal distance

    High Accuracy Fluid Level Meter Waterproof Ultrasonic Sensor 50mm - 1000mm Range 3





    LED displays
    Displays in dependence on operating mode Red LED Yellow LED

    TEACH-IN switching point

    Object detected

    No object detected

    Object uncertain(TEACH-IN invalid)





    off flashes On





    flashes off

    off

    Normal operation off Switching state
    Fault on Previous state





    5. Installation conditions

    If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
