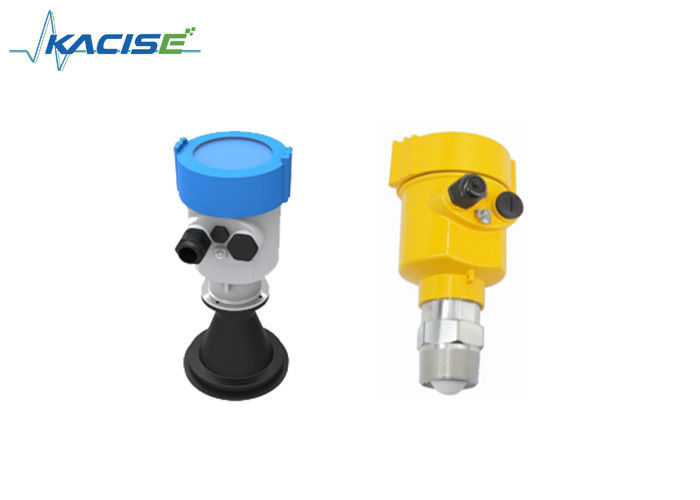

Small Range Radar Level Sensor Liquid Nitrogen Level Measure 24VDC Power Supply

Small Range Radar Level Sensor Liquid Nitrogen Level Measure 24VDC Power Supply

Small Range Radar Level Sensor Liquid Nitrogen Level Measure 24VDC Power Supply

Product Details:

Place of Origin: China (Mainland)
Brand Name: KACISE
Certification: CE
Model Number: KLD-800

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Frequency: 76GHz-81GHz Measuring Range: 120meters
Accuracy: ±1mm Explosion-proof: Exia IIC T6
Protection: IP67 Blind Area: 7~8cm
Beam Angle: Power Supply: 18~28VDC
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Small blind zone small range liquid nitrogen level measure FMCW Radar level sensor from 10cm up to 150meter



Introduction

76-81 GHZ frequency modulation wave FMCW radar products (also called a millimeter wave radar), because it USES higher than Ku band radar frequency millimeter wave band, the remote target detection, strong smoke dust environment, remote imaging, the respect such as multi-spectral imaging have important applications, and can detect more than microwave radar small goal and achieve a more accurate positioning, with a higher resolution and more privacy.



Application field



  • The emission angle is less than 3 °, which is suitable for narrow space or guided wave pipeline measurement
  • Measuring range could reach to 120M, which is suitable for the measurement of large storage tanks
  • Measurement dead zone is in the range of 7-8CM, suitable for the measurement of small storage tanks
    The product has extremely high measurement accuracy, suitable for high-precision measurement level measurement
  • The product has rich echo processing algorithms and empirical data of various working conditions; it has unique advantages than other similar products in the application of extremely harsh working conditions such as strong dust, steam, or special process storage tanks with stirring and heating rods.



Features of 80G Radar Level Sensor

  • 76GHz-81GHz FM wave radar
  • 5GHz ultra-large FM scanning frequency width, wide application
  • Support standard HART, RS485 / MODBUS bus protocol
  • Support operation mode such as upper computer setting software, tank side table, etc.
  • 24VDC power supply
  • Simple installation structure, adapt to various installation forms on site

Parameters

Frequency 76GHz~81GHz,FM sweep frequency width 5GHz
Range

0: 0.2 m~60m(Solid)(T0 Series blind area add 0.2m)

1: 0.0 m ~30m(Liquid)(T0 Series blind area add 0.2m)

2: 0.6m~120m(Solid)(T0Series blind area add 0.2m)

Accuracy ±1mm
Beam Angle 3°,8°
The usage dielectric constant range >=2
Power Supply

18~28.0VDC,

4 wire

2 wire

Communication Mode

MODBUS

HART

Signal Output

4~20mA or RS-485

4~20mA

The Fault Output 3.8mA,4mA,20mA,21mA, maitain
Field operation / programming

128×64 dot matrix display /4 button

Upper computer setup software can be configured

Temperature/humidity -40~85℃/≤95%RH
Shell material Alluminum alloy, stainless steel
Antenna Type Lens antenna, can be equipped with lens antenna shield/anti-corrosion antenna/antenna cooling paste/quartz isolation flange
Process pressure -0.1~2MPa
Outline Ø100*270mm
Cable Connection M20*1.5
Commend cable AWG18 or 75mm²
Protection Grade IP67
Explosion Grade ExdiaIICT6
Installation Screw or flange
