    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Model Number: GXUS-M56

    Payment & Shipping Terms:

    Minimum Order Quantity: 1ps
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work day
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 1000 Pieces per Week
    Contact Now
    Detailed Product Description
    Range: 0.1~0.5m、0.15~1m、0.3~3m、0.4~5m、0.5~6m Resolution: 3mm Or 0.1%(which Is Bigger)
    Response Time: < 200ms Display: LED (OPTIONAL)
    Emission Angle: 20° Analog Output: 4~20mA/500Ω LOADING
    Switch Output: RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL) RS232/485: MODBUS Protocol Or Customized Protocol (optional)
    Power Supply: Standard 24VDC (±15%) Ambient Temperature: -20~+60℃
    Protection Class: IP65 (IP66 Is Selectable) Installation: M56*2
    High Light:

    ultrasonic level transmitter

    ,

    ultrasonic liquid level sensor

    No Contact Ultrasonic Distance Sensor





    1. Product Description





    The Ultrasonic sensor uses sound waves to do non-contact and wear-free detection on target subjects. It can be used to detect either transparent or colored objects, metal objects or non-metallic objects, as well as solid, liquid or powdered substance. Ambient conditions such as environmental smoke, dust, environment or rain have very small affect on the detection performance of ultrasonic sensors.

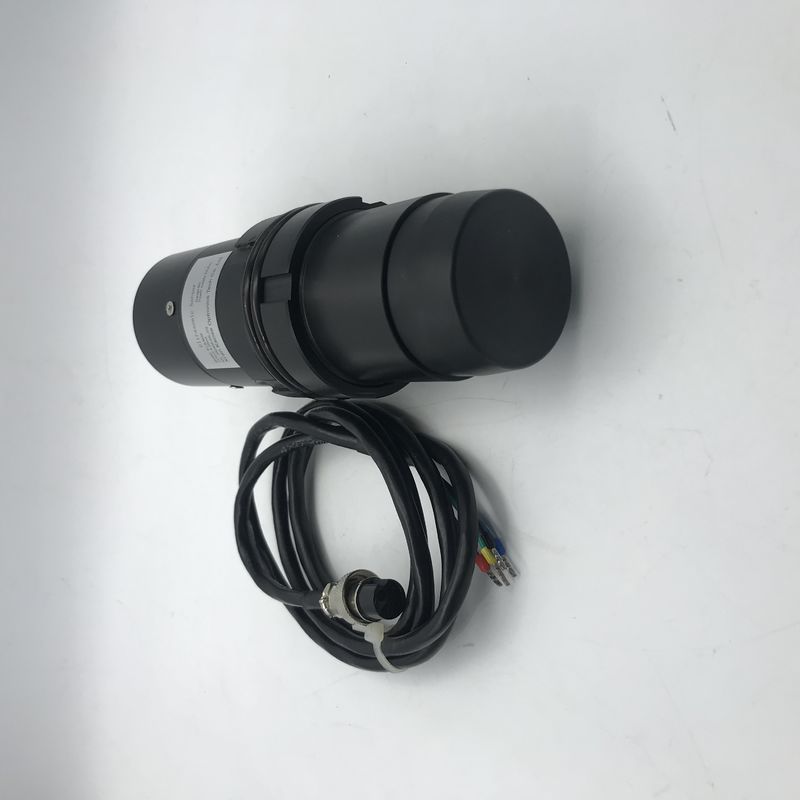

    High Precision Ultrasonic Sensor Distance Measurement M56 * 2 Installation 0



    2. Ultrasonic Ranging principle





    Transmitting ultrasonic transducer emits ultrasonic pulses propagated to the measured media through communication media, through reflection and then return to the receiving transducer through the acoustic medium, the measured ultrasonic pulse propagates from the transmitter to the receiver in the acoustic medium of time. Then according to the speed of sound in the acoustic medium, it can be considered from the transducer to the media surface distance. To determine the liquid level. Therefore, we can calculate the distance from the probe to the reflecting surface D = C * t / 2 (divided by 2 is because the sound waves from the transmitter to the receiver is actually a round, D is the distance, C is the speed of sound, t is the time).





    3. Parameter



    Range 0.1~0.5m,0.15~1m,0.3~3m,0.4~5m,0.5~6m
    Resolution 3mm or 0.1%(which is bigger)
    Response time < 200ms
    Display LED (OPTIONAL)
    Emission angle 20°
    Analog output 4~20mA/500Ω LOADING
    Switch output RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL)
    RS232/485 MODBUS protocol or customized protocol (optional)
    Power supply Standard 24VDC (±15%)
    Ambient temperature -20~+60℃
    Protection Class IP65 (IP66 is selectable)
    Installation M56*2

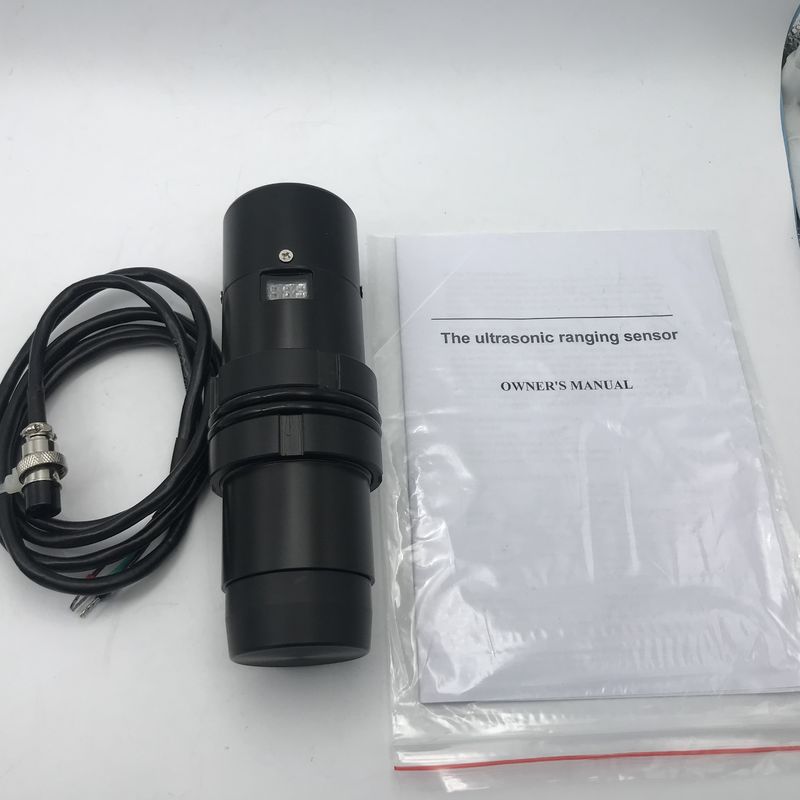

    High Precision Ultrasonic Sensor Distance Measurement M56 * 2 Installation 1







    4. Feature



    • High resolution

    • Short response time
    • Digital tube display measuring distance
    • Various springs available: switch, analog, or RS232/485





    5. Application Field



    • Non-destructive testing of metals
    • Ultrasonic thickness measurement
    • Level detection
    • Robot collision avoidance
    • Detecting container status
    • Can be used to detect transparent objects, liquids, any surface roughness, smooth, light dense materials and irregular objects
    • Applied to food processing plants
