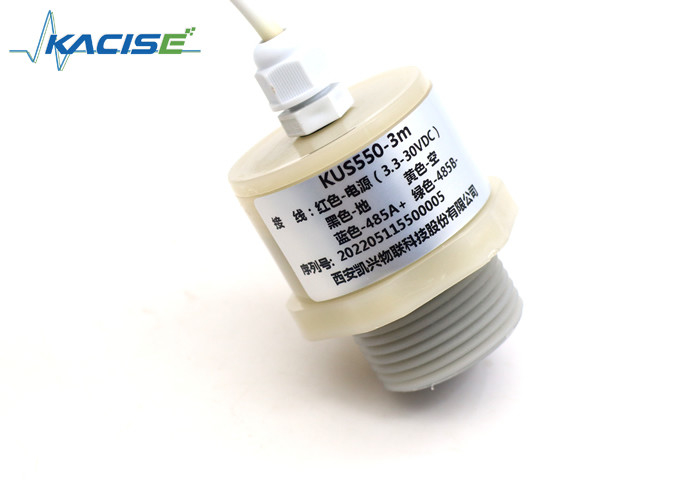

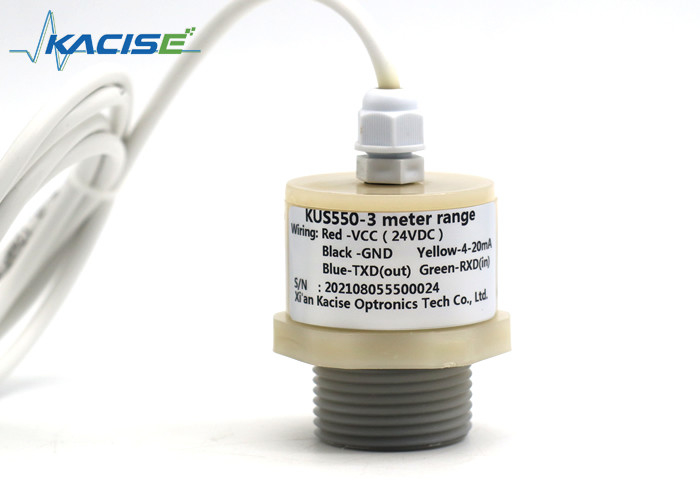

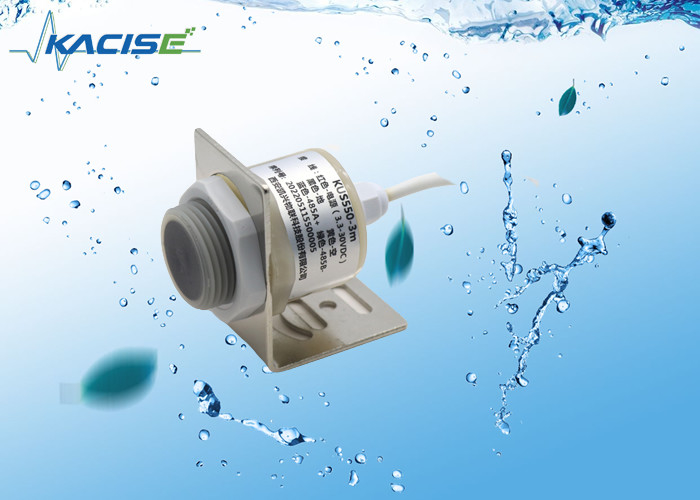

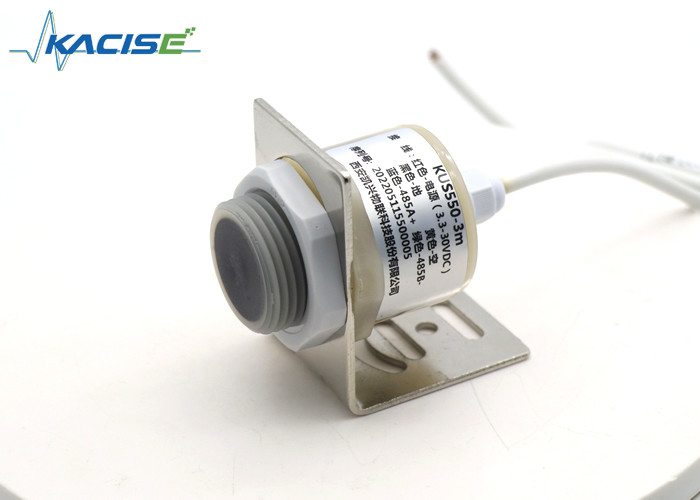

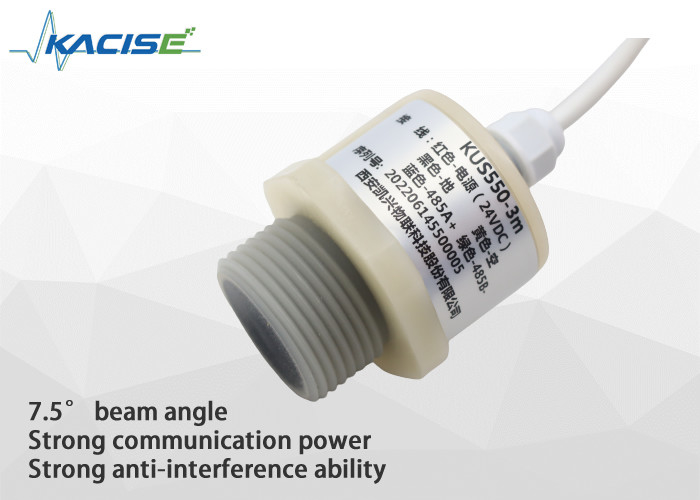

KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range

KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range

  • KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range
  • KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range
  • KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range
  • KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range
  • KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range
  • KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range
KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range
Product Details:
Place of Origin: China
Brand Name: Kacise
Model Number: KUS550A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 15*20*15cm,0.3kg
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100+
Contact Now
Detailed Product Description
Range: 0.25m~3m Supply Voltage: 3.3 ... 30 VDC
Working Current: ≤ 10 MA Output Signal: 0-3V,0-5V/4-20mA/NPN/PNP/RS485
Measurement Accuracy: ≤1 %F.S. Temperature Compensation: Yes
Ranging Resolution: 0.1mm Working Temperature: -40…85℃(233...358K)
Protection Class: IP68 Shell Material: PVDF
Electrical Connection: 5-core Cable (analog Output), 6-core Cable (switch Output)
High Light:

KUS550 Ultrasonic Liquid Level Sensors

,

3m Range Ultrasonic Liquid Level Sensors

,

PVDF Ultrasonic Liquid Level Sensors

KUS550 Series Ultrasonic Level Sensor

1.Features

  • High sensitivity.
  • Compact and robust structure.
  • IP68 high protection rating.
  • Corrosion resistant casing, suitable for corrosive medium and application

2.Dimension
Unit in the diagram is mm.
KUS550 Ultrasonic Liquid Level Sensors Low Power 3m Range 0



3.Description

KUS550 low-power ultrasonic level gauge is a real low-power ultrasonic sensor with low operating current, short settling time and good stability. Especially suitable for power supply, the response time is short, the transmission time does not exceed 1ms, and it adapts to the requirement of short wake-up time. It has the characteristics of low voltage, low power consumption, easy installation and use; temperature digital compensation function, wide operating temperature range; high precision, high frequency response, good stability; shock resistance, fatigue resistance, high reliability.



Adapt to the industry: Internet of things, water supply, industrial control and other fields.

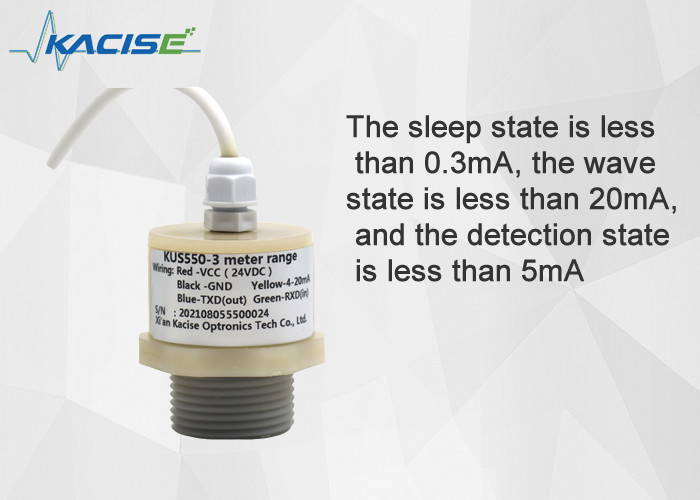

KUS550 low-power ultrasonic liquid level meter sleep state is less than 0.3mA, the wave state is less than 20mA, and the detection state is less than 5mA. That is, when the power supply is 3.3V, the sleep current is 0.3mA, and the power consumption at this time is 0.0003X3.3=0.00099W. This series of low-power ultrasonic level gauges are especially suitable for applications in the smart IoT industry, such as manholes, factory water tanks, tanks, municipal engineering, tap water, sewage treatment, water conservancy and hydropower, steel, coal mines, electricity, petrochemicals, urban inland rivers and lakes, Transportation and food processing industries. Collect data through high-precision ultrasonic level gauges, monitor liquid level/level height and temperature in real time, update cloud platform data in real time and issue real-time alarms, thereby reducing the cost of manual inspections and accurately grasping the system status.



4.Low power consumption mode

Work mode set to 2 is low power concumption working mode.

How to realize the low power consumption ultrasonic level and distance sensor



  a) Use low power ICs

          We use almost new ICs by wich the power consumption is normally low.

  b) Controll the power of each circuit in the sensor.

      There are three parts of the circuit in the sensor, the transmitting circuit, the receiving circuit and the basic circuit of the mcu. The mcu realizes power consumption management by enabling control of the work of each part of the circuit, and then controls the power        consumption.

  c) When the mcu itself is not working, it enters sleep mode to further reduce power consumption.



5.Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.



6.Ordering information



KUS Model Output Max range Description
  550
Customized
  SW-1 Switch Output,SW-1 for one switch output,SW-2 for 2 switch outputs
mA 3 wire 4-20mA output
5V Output is Vout 0-5V
3V Output is Vout 0-3V
RS485 Output is RS485
TTL UART TTL output
    XX m

XX m is the maxim range can be detected, the max range is 5 meters

Default is 2.5m

KUS 550 RS485 2m
