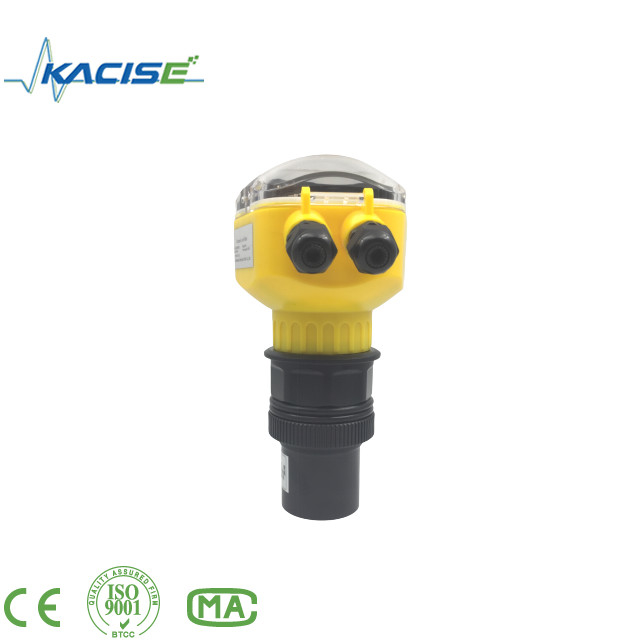

RS485 output barn ultrasonic level meter

RS485 output barn ultrasonic level meter

Barn Ultrasonic Level Meter

Fish Pond Ultrasonic Level Sensor

RS485 Water Level Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof,

Model Number:

KUM-A

Contact Us
Request A Quote
Product Details
Product Type:
Integrated
Power Supply:
24 VDC Optional: 220V AC+15% 50Hz
Display:
English Led Display
Cable Probe:
No
Digital Output:
RS485
Resolution:
3mm Or 0.1%
Product Name:
Digital Integrated Ultrasonic Level Meter Non-Contact Level Sensor Level Mesurement Used In Municipal Project
Apply:
Liquid Solid
Highlight:

Barn Ultrasonic Level Meter

,

Fish Pond Ultrasonic Level Sensor

,

RS485 Water Level Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD157 to USD610 per pc
Packaging Details
Individual carton packaging, gift box packaging, custom packaging
Delivery Time
5 work days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 Pieces per Week
Product Description

RS485 output barn ultrasonic level meter

Product introduction

Our RS485 output barn ultrasonic level meter is an outstanding device crafted with precision and innovation for diverse applications.
This ultrasonic level meter is specifically designed to function within barn environments. It utilizes ultrasonic technology to measure the level of various substances accurately. With its RS485 output interface, it enables seamless communication with other control systems and devices, allowing for easy integration into existing setups.
In barns, it can be used to measure the levels of feed storage bins, ensuring that there is always an adequate supply for livestock. It can also monitor liquid levels in water tanks or other liquid - containing vessels in the barn area. The device's high - quality construction makes it resistant to dust, humidity, and other environmental factors commonly found in barns. Its accurate measurement capabilities provide farmers and barn managers with reliable data, facilitating efficient operation and better decision - making for the overall management of the barn's resources.

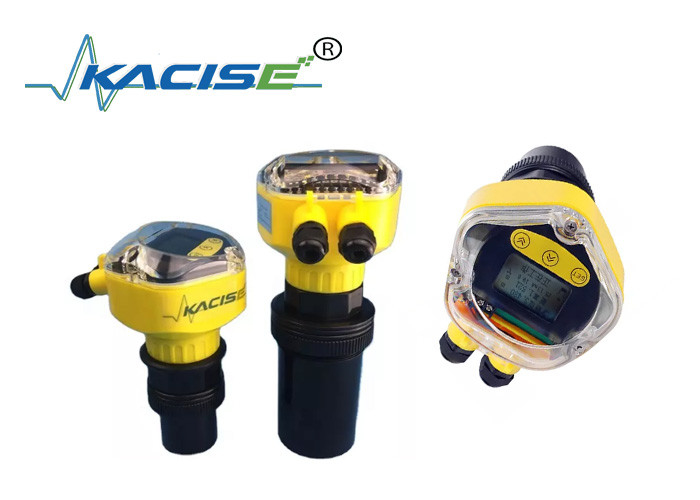

RS485 output barn ultrasonic level meter 0



Technical Features

  • Non-contact, can be used in various applications;
  • Various types of probes are available to meet the requirements of various applications.
  • High accuracy: 0.5%, 1%
  • English LED Display

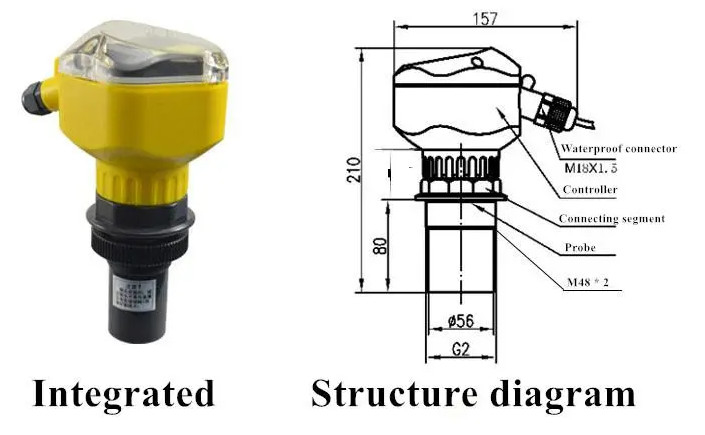

Structure



RS485 output barn ultrasonic level meter 1



Technical Specifications



Specs Value
Pressure Voltage 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Accuracy 0.5%, 1.0%
Display LCD
Ambient Temperature Display instrument-20~+60℃
transducer-20~+80℃
Medium liquid and solid
Analog Output 4-20mA
Digital Output RS485, RS232 (both are optional)
Power Supply 24Vdc
Protection Grade Display instrument IP65,transducer IP68
Probe Type PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy



 Model Selection



KUM-A
  Measurement Range
A 5m
B 10m
C 15m
D 20m
E 30m
F 40m
G 50m
H 60m
  Output Signal
A 4-20mA
  Accuracy
0.5 0.5%
1.0 1%
  Power Supply
A 24Vdc
B 11~30Vdc
  Probe Type
A PVDF
B Aluminum alloy
C ABS
D Stainless steel 316L
E Teflon
F Titanium alloy



Applications and Installations

  • Distance measurement
  • Depth measurement

RS485 output barn ultrasonic level meter 2

RS485 output barn ultrasonic level meter 3

RS485 output barn ultrasonic level meter 4



Common problems and solutions guidance during installation



Fault description cause of issue Solution
Meter does not display, does not work Wrong power supply Wrong wiring Check whether the DC24v power supply is correct Check whether the wiring is correct
The instrument has display, does not work 1. The level gauge is not aligned with the liquid level or material level
2. The liquid level fluctuates greatly
3. The material surface is extremely uneven
4. The liquid surface has a thicker foam layer
5. The bottom of the container is not flat after the liquid is emptied and the material is emptied
6. Out of measurement range
1. Adjust the alignment direction of the level gauge, and use a spirit level to calibrate and add a plastic tube to the container
2. Use a level gauge with a larger range
3. Use a level gauge with a larger range or other measurement methods
4. Naturally resume work after adding liquid or material
5. Use a level gauge with a larger range
The instrument display is unstable or the measured value has a large deviation 1. The material level enters the blind spot
2. The distance measurement value is greater than the installation height
3. There is strong electromagnetic interference
4. Objects that block sound waves
5. A metal flange is prepared on the level meter
6. The emitting surface or side of the probe is in contact with metal
1. Elevate the level meter or prevent the level from being too high
2. Modify the installation height to the correct value
3. The instrument must be connected to the ground, and shield the level gauge
4. Change the installation position or add plastic pipes
5. Switch to plastic flanges
6. Use rubber pads to isolate from metal





For the container with the installation port or the probe placed in the round pipe, the length of the flange connection of the 4m, 6m and 8m type level gauge container should be less than 400mm, and the length of the 12m level gauge container should be less than 400mm.
150mm, 15m, 20m, 30m level sensor probes should protrude from the installation port.



Product folw

RS485 output barn ultrasonic level meter 5



Application

RS485 output barn ultrasonic level meter 6



Company Information


RS485 output barn ultrasonic level meter 7

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

We supply high quality Turbine Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.



Our Services

  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.

FAQ



1. Q: What information need to be provided to choose the suitable RS485 output barn ultrasonic level meter?

A: Please provide us: measuring range,medium,power supply,output, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
