KUS550 Waterproof Ultrasonic Water - level Meter with a measurement range of 0.25m to 3m

KUS550 Waterproof Ultrasonic Water - level Meter with a measurement range of 0.25m to 3m

1.Features

• Strong penetrating power
• Health and Environmental Protection
• Convenient and safe​

2.Dimension
Unit in the diagram is mm.

3.Description

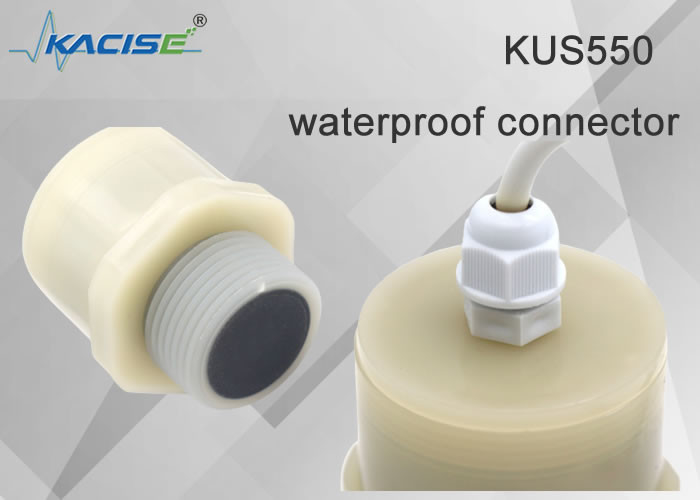

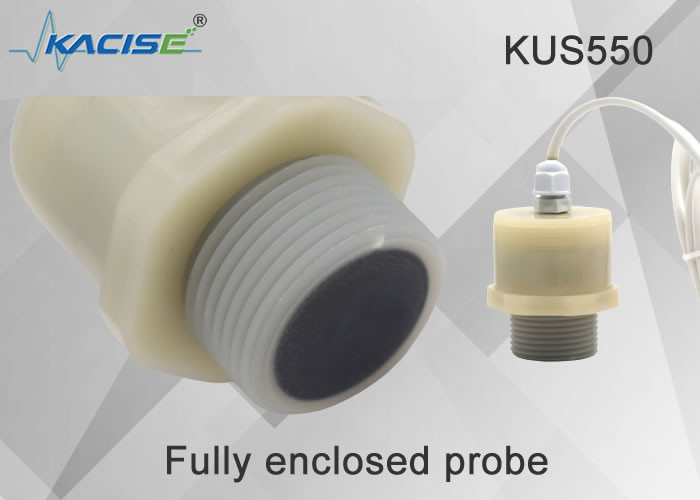

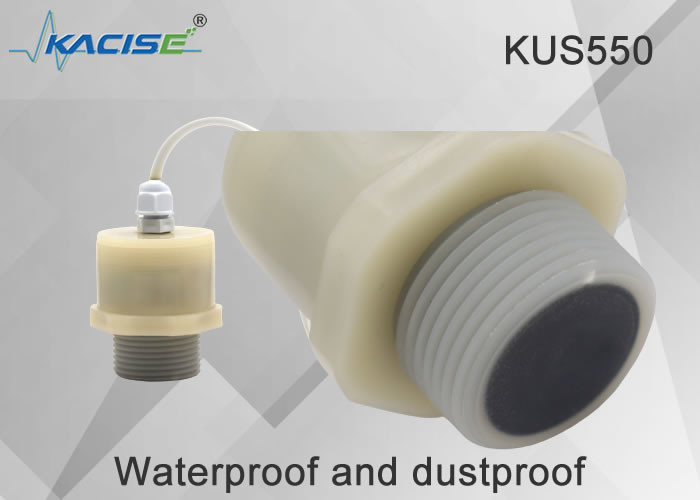

The KUS550 Waterproof Ultrasonic Water - level Meter is a top - notch device for accurate water - level monitoring. With a measurement range spanning from 0.25m to 3m, it can be applied in various scenarios, from small - scale water tanks to larger water bodies. Its waterproof design ensures stable operation even in harsh, wet environments. Using ultrasonic technology, it provides reliable and precise readings. This meter is easy to install and maintain, making it an ideal choice for both professionals and those new to water - level measurement tasks.

4.Low power consumption mode

Work mode set to 2 is low power concumption working mode.

How to realize the low power consumption ultrasonic level and distance sensor

  a) Use low power ICs

          We use almost new ICs by wich the power consumption is normally low.

  b) Controll the power of each circuit in the sensor.

      There are three parts of the circuit in the sensor, the transmitting circuit, the receiving circuit and the basic circuit of the mcu. The mcu realizes power consumption management by enabling control of the work of each part of the circuit, and then controls the power        consumption.

  c) When the mcu itself is not working, it enters sleep mode to further reduce power consumption.

5.Installation conditions

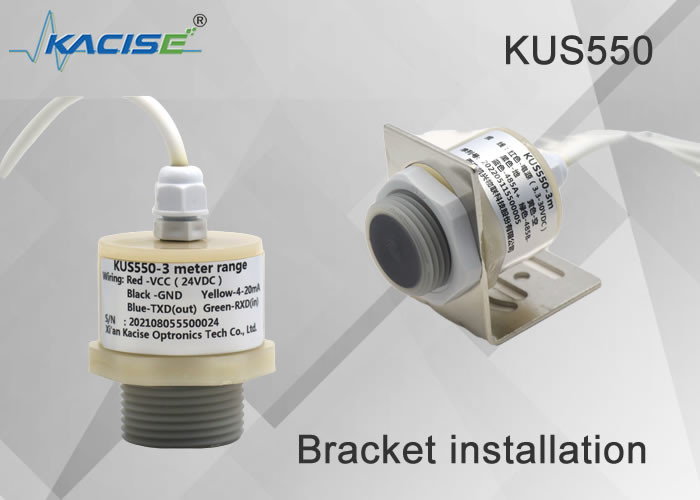

If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

6.Ordering information

KUS550 series ultrasonic sensor datasheet_v2.8.pdf...
