RS485 Non Contact Radar Level Transmitter 200m Smart Liquid Level Meter

RS485 Non Contact Radar Level Transmitter 200m Smart Liquid Level Meter

RS485 Radar Level Transmitter

200m Smart Liquid Level Meter

Liquid Radar Level Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KLD-2601

Contact Us
Request A Quote
RS485 Non Contact Radar Level Transmitter 200m Smart Liquid Level Meter RS485 Non Contact Radar Level Transmitter 200m Smart Liquid Level Meter RS485 Non Contact Radar Level Transmitter 200m Smart Liquid Level Meter RS485 Non Contact Radar Level Transmitter 200m Smart Liquid Level Meter
Product Details
Measuring Range:
70meters
AccuracyExia IIC T6 Ga/Exd Ia IIC T6 Gb:
±15mm
Process Connection:
Univeral Flange
Explosion-proof:
Exia IIC T6 Ga/Exd Ia IIC T6 Gb
Protection:
IP67
Frequency:
26GHz
Highlight:

RS485 Radar Level Transmitter

,

200m Smart Liquid Level Meter

,

Liquid Radar Level Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price KDI Series Display Controller Supporting Multi - Machine Communication online Video

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price
Good price KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution online Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price
Good price Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation online Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price
Good price KDI Series Light Column Display Controller With Digital And Analog Measurement online Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

Kacise KLD2601 80G Water radar level controller china, digital water radar level recorder, water tank radar level gauge

Product Overview



This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.



​Technical Specification and Model Selections:



Suitable for Medium Strongly corrosive liquid
Application HCl, H2SO4, HF and strong base in tank, etc.
Measuring Range 10m
Process Connection Flange, Min. flange is DN80
Medium Temperature -40 ~ 120 ℃
Process Pressure -0.1 ~ 0.1MPa
Accuracy ±5~10mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

The Electrical Connection

(4~20)mA/HART (Two wire system)     The power supply and the output current signal sharing a two core shield cable. The supply voltage range see technical data.

For intrinsically safe type must be a safety barrier between the power supply and the  instrument.

(4~20)mA/HART(Four wire system)     Separate power supply and the current signal, respectively using a two-core shielded cable. The supply  voltage range see technical data.

RS485 / Modbus     Power supply and Modbus signal line separate drespectively using a two-core shielded cable, the power supply voltage range see technical data.

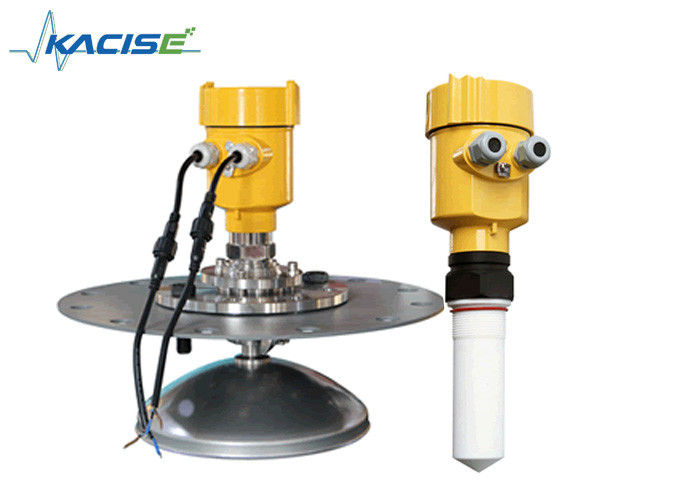

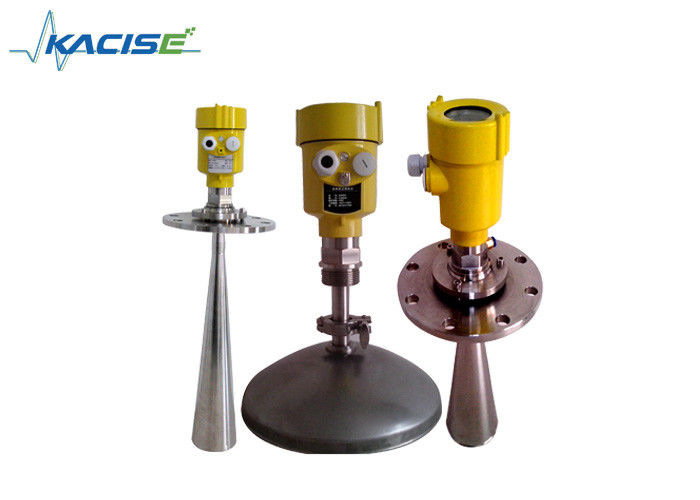

RS485 Non Contact Radar Level Transmitter 200m Smart Liquid Level Meter 0

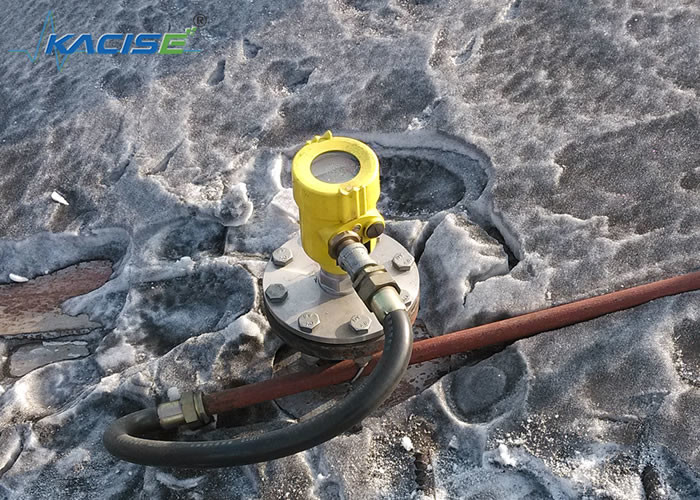

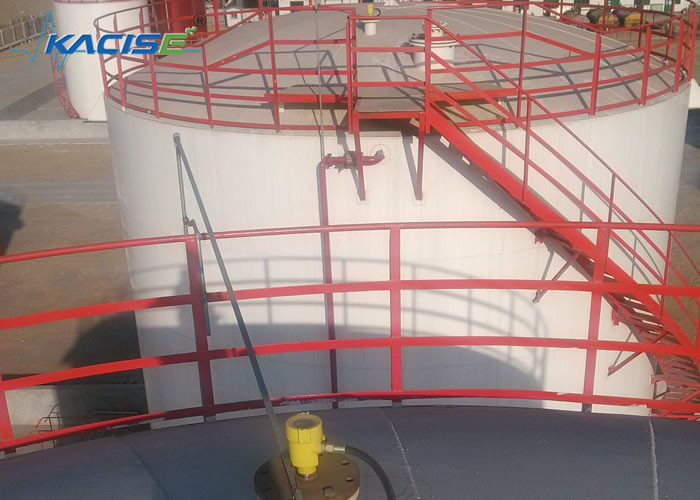

 Applications and Cases:



RS485 Non Contact Radar Level Transmitter 200m Smart Liquid Level Meter 1
