Medium: | Strong Corrosive Liquid, Steam, Foam, High Temperature. And High Pressure | Measuring Range: | 0.1m~10/20/30/60/100m |
---|---|---|---|
Process Connection: | Flange ≥ DN80 | Process Temperature: | -40~200℃ |
Process Pressure: | -0.1~2.5MPa | Antenna Size: | 76mm Lens Antenna (according To Flange Size) |
Antenna Material: | PTFE/overall Filling | Accuracy: | ±1mm |
Protection Class: | IP67 | Center Frequency: | 80GHz |
Launch Angle: | 3° | Power Supply: | DC24V/DC12~24V /AC220V |
Casing: | Aluminum / Plastic / Stainless Steel | Signal Output: | 4...20mA/HART Protocol/RS485 Modbus |
High Light: | Flange Mounting Radar Level Transmitter,IP67 High Pressure Radar Level Transmitter,High Temperature Water Level Radar Sensor |

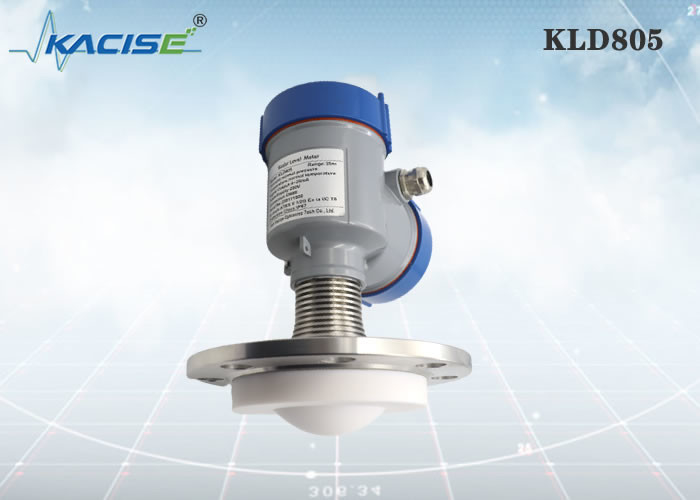

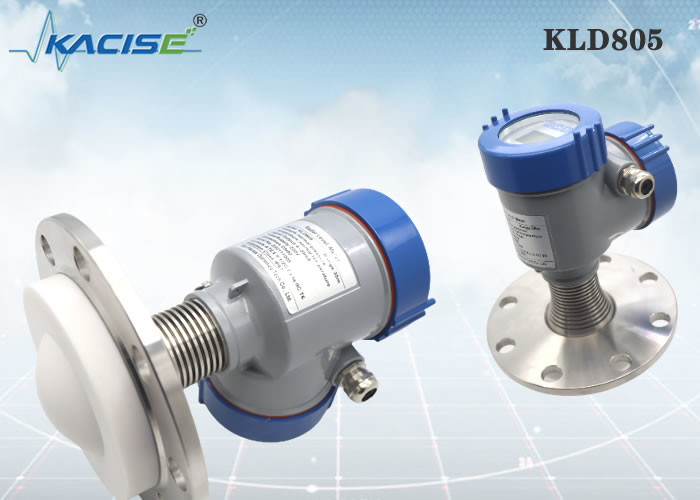

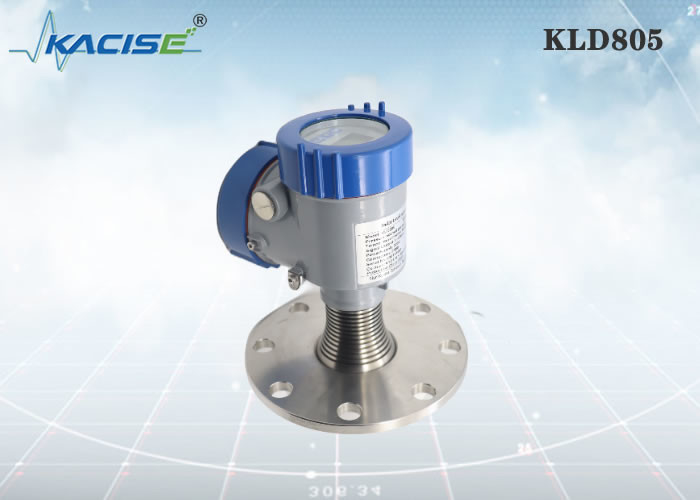

KLD805 80G FM Radar Level Sensor
Introduction
Apure radar level meter is operating at 76-81 GHz, which has a maximum measuring range of 100m and a minimum blind zone of 10cm. It supports 4-wire and 2-wire applications.
Higher operating frequency and shorter wavelength make it ideal for solid applications, including those with extreme dust and high temperature to + 200℃. The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning.
Feature
PTFE material:Being hydrophobic, non-wetting, high density and resistant to high temperatures.
KLD805 |
Medium: strong corrosive liquid, steam, foam, high temperature. and high pressure Measuring range: 0.1m~10/20/30/60/100m Process connection: flange ≥ DN80 Process temperature: -40~200℃ Process pressure: -0.1~2.5MPa Antenna size: 76mm lens antenna (according to flange size) Antenna material: PTFE/overall filling Accuracy: ±1mm Protection class: IP67 Center frequency: 80GHz Launch angle: 3° Power supply: two-wire /DC24V four-wire /DC12~24V four-wire /AC220V Casing: aluminum / plastic / stainless steel Signal output: two-wire /4...20mA/HART protocol four-wire 4...20mA/ RS485 Modbus |
Installation
Installation Requirements
When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.
Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.
Installation connection diagram:
The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.
Too long installation connection will affect the radar performance.
Dimensions
Casing Dimension
Unit in mm:
