Kacise 80GHz Radar Level Gauge for Non Corrosive Liquid with 4-20mA Output and 30m Range

Kacise 4 - 20mA 30m Non Corrosive Liquide Level Measurement 80G Radar Level Gauge

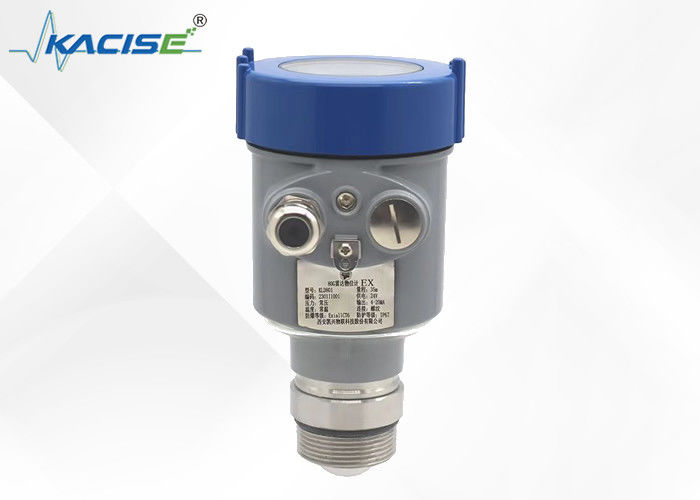

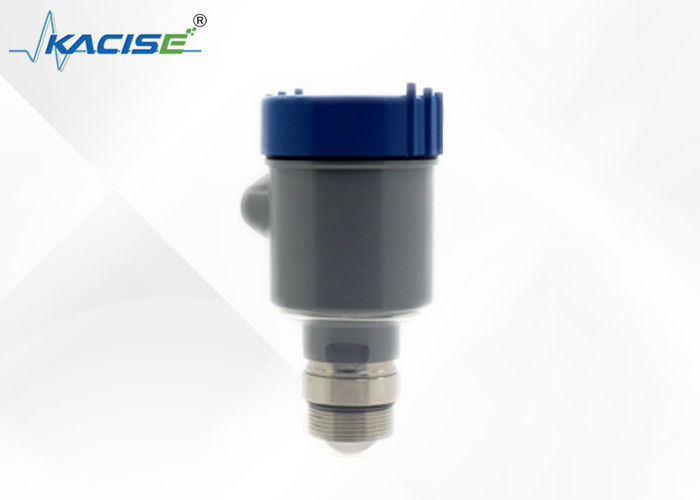

The Kacise 4 - 20mA 30m Non Corrosive Liquide Level Measurement 80G Radar Level Gauge is a remarkable product. It is specifically designed to accurately measure the level of non-corrosive liquids. With a 4 - 20mA signal output and a measuring range of up to 30 meters, it provides reliable and precise data. The 80G radar technology ensures excellent performance even in challenging environments. It is suitable for various industrial applications where monitoring liquid levels is crucial. Its advanced features enable efficient operation and contribute to enhanced process control, helping industries optimize their production and ensure the smooth running of operations related to liquid storage and management.

1. Product Dimension

2. Working Principle
The radar antenna transmites narrow microwave pulse which will be reflected back when reaching the surface of the medium tested and then received again by the antenna system. The signals shall be transmitted to the electric circuit and then converted into level signals. As the transmission speed of microwave is so fast, the time used for the microwave transmission to the surface of the medium tested and then reflected back is almost 0.

3. Technical Features

• Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the minimum measurement blind zone is 0.05m.
• The smaller antenna size satisfies the measurement of more working conditions.
• A variety of lens antennas, smaller launch angles, more concentrated energy, stronger echo signals, and higher reliability than other radar products under the same industrial and mining conditions.
• It has stronger penetration and can be used normally in the case of adhesion and condensation.
• The dynamic signal range is larger, and the measurement of low dielectric constant media is more stable.
• Multiple measurement modes, radar response in fast measurement mode

4. Technical Specification and Model Selections

5. Installation Requirements
When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.

6. Electrical Connection
Power Supply
(4～20) mA/HART(2 wire)
The power supply and the output current signal share a two-core shielded cable. Please refer to the technical data for the specific supply voltage range.
(4～20) mA(4 wire/6 wire)
The power supply needs to be powered separately, and a four-core shielded cable is used for the power supply and current signal (the current signal and the RS485 interface can be output at the same time, and a six-core shielded cable is required for simultaneous output).
RS485/Modbus
The power supply needs to be powered separately, and a four-core shielded cable is used for power supply and digital signal. (The current signal and the RS485 interface can be output at the same time, and a six-core shielded cable is required for simultaneous output).

7. Connection

8. Safety Guide
Please observe the requirements of the local electrical installation regulations! Follow local regulations for personnel health and safety. All operations on the electrical components of the instrument must be completed by professionals who have received formal training. Please check the nameplate of the instrument to ensure that the product specification meets your requirements. Please ensure that the power supply voltage is consistent with the requirements on the nameplate of the instrument.

9. Grade of Protection
This instrument fully meets the requirements of protection class IP66/67, please ensure the waterproofness of the cable sealing head. As shown below:

How to ensure that the installation meets the requirements of IP67:
Make sure the sealing head is not damaged.
Make sure the cable is not damaged.
Please make sure that the cables used meet the requirements of the electrical connection regulations.
Before entering the electrical interface, bend the cable down to ensure that water will not flow into the housing, see ①
Please tighten the cable gland, see ②
Please plug the unused electrical interface with a blind plug, see ③

10. Sensor linearity
Beam Angle
The beam angle is the beam angle at which the energy density of the radar wave reaches half of its maximum value (3dB width). Microwaves emit signals out of beam range and can be reflected by interfering objects.

The larger the antenna size and the smaller the beam angle α, the less interference echoes will be generated.
For more accurate measurements, avoid installing any internal devices (such as limit switches, temperature sensors, bases, vacuum rings, heating coils, baffles, etc.) within the range of the signal beam.
KLD800 series product show
