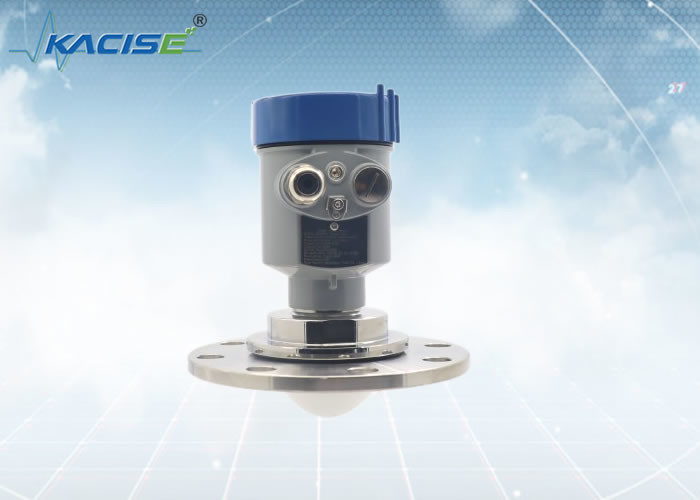

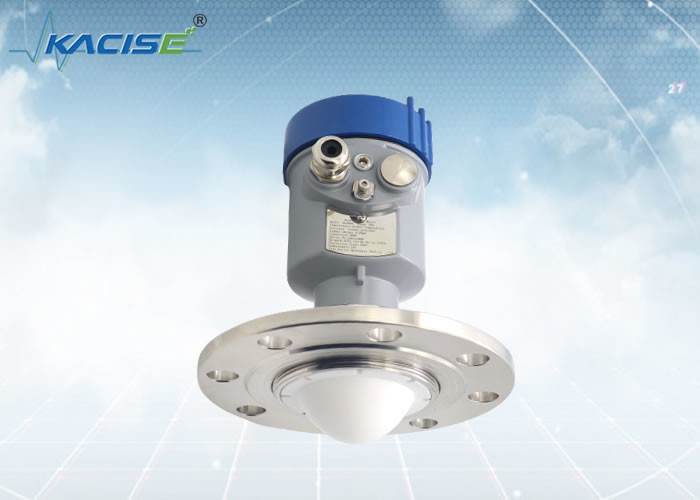

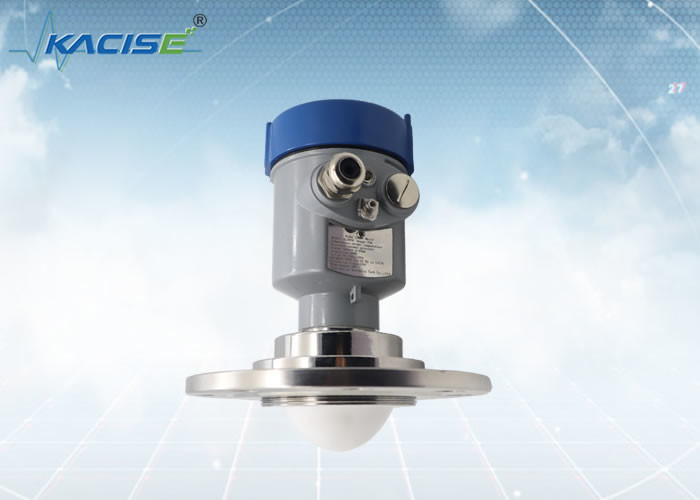

Name: KLD804 Liquid Water Radar Type Level Transmitter 76mm Lens Antenna Strong Transmit
Brand: Kacise
SKU: KLD804
Rating: 4.9 (112 reviews)

Home Products Fluid Level Meter

KLD804 Liquid Water Radar Type Level Transmitter 76mm Lens Antenna Strong Transmit

Product Details:

Place of Origin:	China
Brand Name:	Kacise
Certification:	CE/Explosion-proof
Model Number:	KLD804

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100+

Contact Now

Detailed Product Description

Medium:	Strong Corrosive Liquid, Steam, Foam	Measuring Range:	0.1m～10/20/30/60/100m
Process Connection:	Flange ≥ DN50	Process Temperature:	-40～130℃
Process Pressure:	-0.1～1.0MPa	Antenna Size:	76mm Lens Antenna (according To Flange Size)
Antenna Material:	PTFE	Accuracy:	±1mm
Protection Class:	IP67	Center Frequency:	80GHz
Launch Angle:	2°	Power Supply:	DC24V/DC12~24V /AC220V
Casing:	Aluminum/plastic/stainless Steel	Signal Output:	4...20mA/HART Protocol/RS485 Modbus
High Light:	76mm Water Level Radar Sensor , Liquid Radar Type Level Transmitter , DN50 Radar Type Level Transmitter

KLD804 80G FM Radar Level Sensor

Introduction

• Measurement accuracy

The measurement accuracy of the terahertz frequency-modulated continuous wave radar level meter is ±1mm. Reliable and high-precision measurement. It really reduces the workload of field operators.

• Launch angle

Radar wave emission angle <2°. Even in extremely complex installation environment, it can measure the material level stably and accurately.

• Measuring range

The measurement range of the terahertz FM radar level meter is 0.1m-100m. It has a very small blind area and a large measurement range. It can meet most measurement occasions.

• Penetration

The terahertz frequency-modulated continuous wave radar level gauge is extremely penetrating. According to the dielectric constant of the crystalline medium, it can penetrate the crystalline layer of up to 100mm.

Feature

High Frequency 80GHz, More Focus
One type of PTFE Antenna, no cable, rod, or drop structure.
Suitable for long/tall/narrow applications
Not affected by temperature changes, dust or vapors

KLD804

KLD804 Liquid Water Radar Type Level Transmitter 76mm Lens Antenna Strong Transmit 0

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～1.0MPa

Antenna size: 76mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 2°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

Casing Dimension

Unit in mm:

KLD804 Liquid Water Radar Type Level Transmitter 76mm Lens Antenna Strong Transmit 1

Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

datum plane
vessel center or axis of symmetry

KLD804 Liquid Water Radar Type Level Transmitter 76mm Lens Antenna Strong Transmit 2

Hoisting Installation

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.

What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
