KLD804 Water Level Radar Sensor For Strong Corrosive Liquid Steam Foam Medium

Product Details:

Place of Origin:	China
Brand Name:	Kacise
Certification:	CE/Explosion-proof
Model Number:	KLD804

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100+

Contact Now

Detailed Product Description

Medium:	Strong Corrosive Liquid, Steam, Foam	Measuring Range:	0.1m～10/20/30/60/100m
Process Connection:	Flange ≥ DN50	Process Temperature:	-40～130℃
Process Pressure:	-0.1～1.0MPa	Antenna Size:	76mm Lens Antenna (according To Flange Size)
Antenna Material:	PTFE	Accuracy:	±1mm
Protection Class:	IP67	Center Frequency:	80GHz
Launch Angle:	2°	Power Supply:	DC24V/DC12~24V /AC220V
Casing:	Aluminum/plastic/stainless Steel	Signal Output:	4...20mA/HART Protocol/RS485 Modbus
High Light:	Strong Corrosive Liquid Level Sensor , Water Radar Level Transmitter

KLD804 80G FM Radar Level Sensor

Introduction

• Strong corrosiveness

It has good penetration performance. For strong corrosion occasions, the front end of the antenna can be equipped with PTFE or PFA anti-corrosion sheath. And the maximum thickness of 30mm fluoroplastic can be added. It has good pressure resistance while anti-corrosion.

• Foam products

It has good penetration performance. Therefore, it can penetrate the foam up to 1000mm for liquid level measurement. The terahertz frequency modulation radar level gauge can also measure the foam itself.

• Sensitivity

It has three adjustable sensitivity. When high sensitivity is selected, the radar response time is less than 1S.

FMCW Radar Level Transmitter Working Principle

Feature

more concentrated energy
smaller launch angle
Large lens antenna with strong signal emission

KLD804

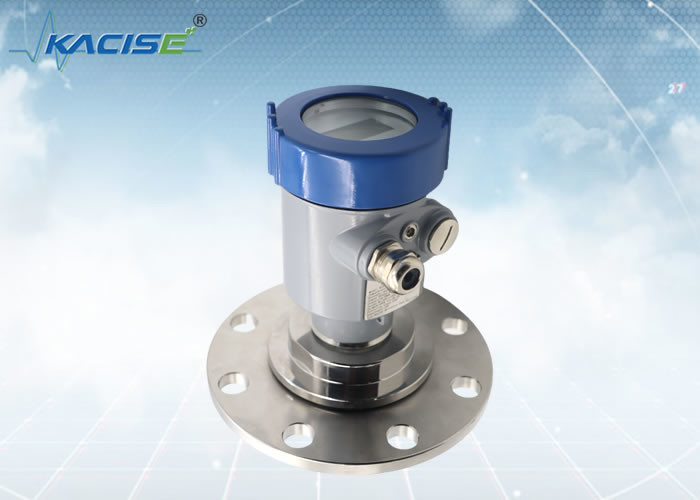

KLD804 Water Level Radar Sensor For Strong Corrosive Liquid Steam Foam Medium 1

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～1.0MPa

Antenna size: 76mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 2°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

Casing Dimension

Unit in mm:

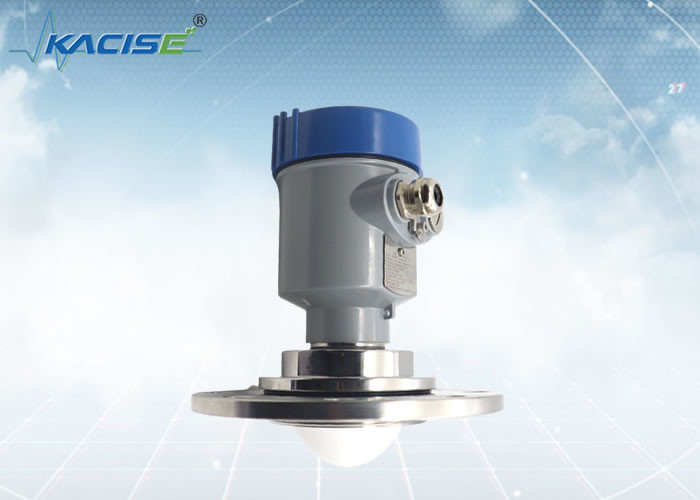

KLD804 Water Level Radar Sensor For Strong Corrosive Liquid Steam Foam Medium 2

Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

datum plane
vessel center or axis of symmetry

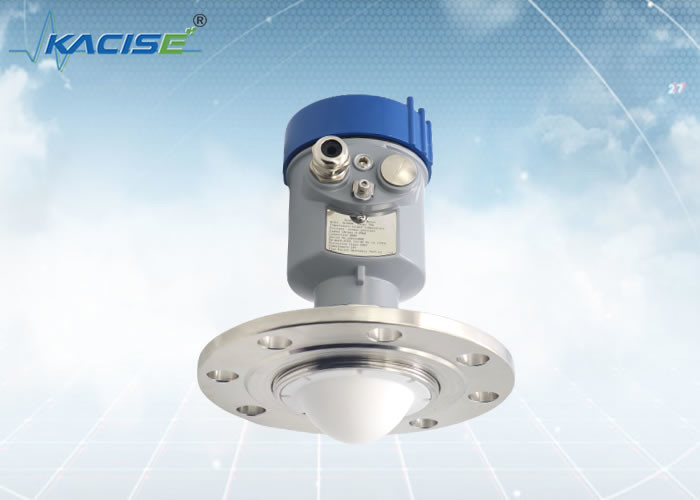

KLD804 Water Level Radar Sensor For Strong Corrosive Liquid Steam Foam Medium 3

Hoisting Installation

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.

What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
