| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | CE/Explosion-proof |
| Model Number: | KLD804 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Medium: | Strong Corrosive Liquid, Steam, Foam | Measuring Range: | 0.1m～10/20/30/60/100m |
|---|---|---|---|
| Process Connection: | Flange ≥ DN50 | Process Temperature: | -40～130℃ |
| Process Pressure: | -0.1～1.0MPa | Antenna Size: | 76mm Lens Antenna (according To Flange Size) |
| Antenna Material: | PTFE | Accuracy: | ±1mm |
| Protection Class: | IP67 | Center Frequency: | 80GHz |
| Launch Angle: | 2° | Power Supply: | DC24V/DC12~24V /AC220V |
| Casing: | Aluminum/plastic/stainless Steel | Signal Output: | 4...20mA/HART Protocol/RS485 Modbus |
| High Light: | Large Lens Antenna Radar Level Sensor,AC220V Radar Level Sensor,Alkali Medium Radar Level Transmitter |
||

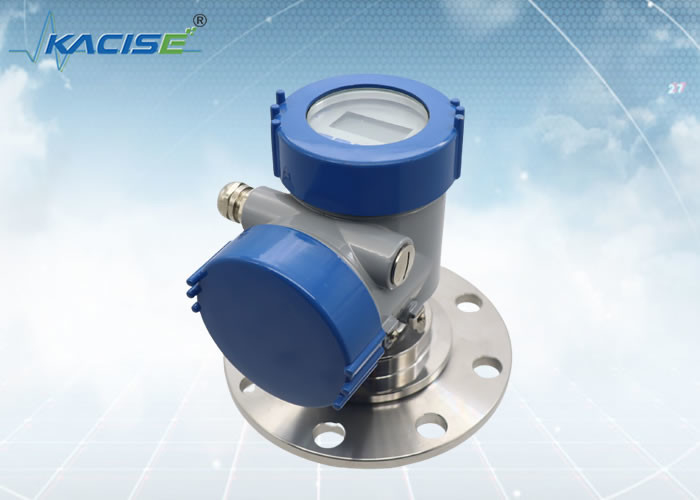

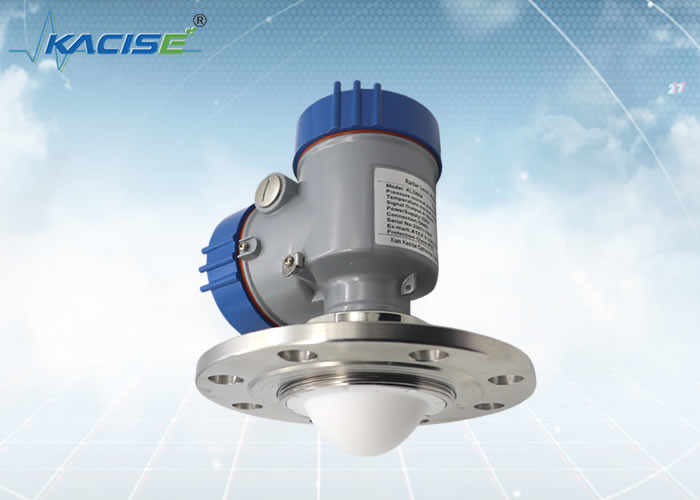

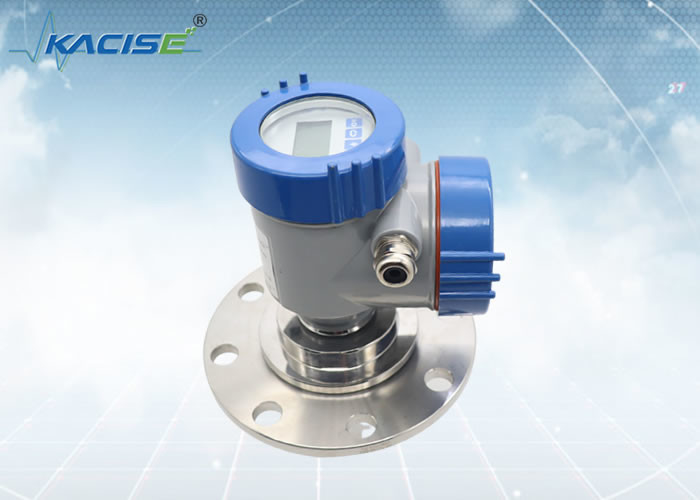

KLD804 80G FM Radar Level Sensor
Introduction
· The hardware system uses advanced microprocessors and embedded system processing software. The signal algorithm processing integrates advanced Echo-capture signal processing technology. This makes the product applicable to various complex industrial plant conditions.
· The “empty tank pretreatment” technology enables the instrument to correctly identify effective echoes and obtain correct measurement results even in the presence of multiple false echo interference.
· Not affected by various complicated working conditions. Such as strong surface fluctuations, foam, moisture and dust interference.
FMCW Radar Level Transmitter Working Principle
Feature
|
KLD804
|
Medium: strong corrosive liquid, steam, foam Measuring range: 0.1m~10/20/30/60/100m Process connection: flange ≥ DN50 Process temperature: -40～130℃ Process pressure: -0.1～1.0MPa Antenna size: 76mm lens antenna Antenna material: PTFE Accuracy: ±1mm Protection class: IP67 Center frequency: 80GHz Launch angle: 2° Power supply: two-wire /DC24V four-wire /DC12~24V four-wire /AC220V Casing: aluminum/plastic/stainless steel Signal output: two-wire /4...20mA/HART protocol four-wire 4...20mA/ RS485 Modbus |
Casing Dimension
Unit in mm:
Installation Method
Flange Installation
When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.
Hoisting Installation
Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
