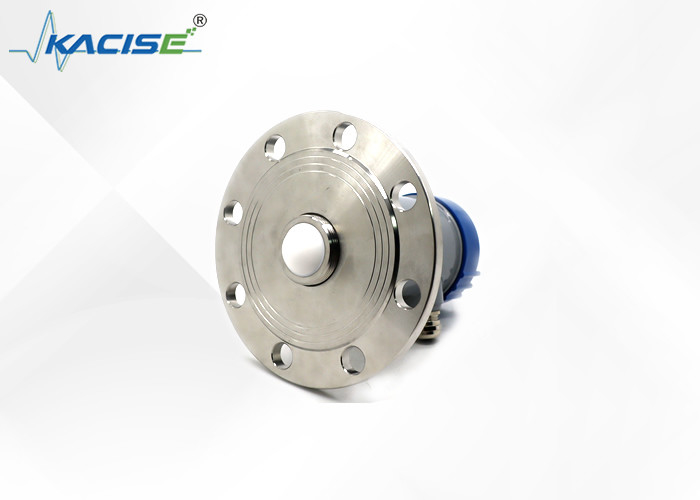

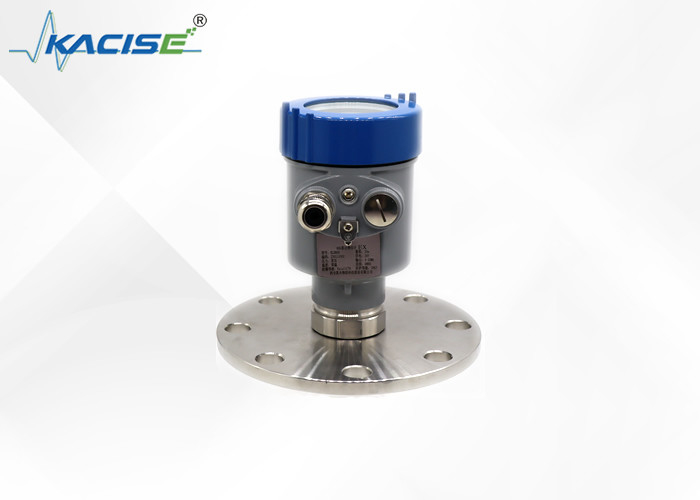

KLD802 Non Contact FMCW OEM RS485 Radar Level Gauge For Slurry Storage Tank

Non Contact FMCW Radar Level Gauge

Slurry Storage Tank Radar Level Gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLD802

Document:

KLD800 Series Radar Level S...v1.pdf

Request A Quote

KLD802 Non Contact FMCW OEM RS485 Radar Level Gauge For Slurry Storage Tank

Product Details

Frequency:

80GHz

Output:

Two-wire /4...20mA/HART Protocol

Explosion-proof:

Exia IIC T6 Ga/Exd Ia IIC T6 Gb

Protection:

IP67

Range:

0.1m～100m

Medium:

Non-corrosive Liquid, Slightly Corrosive Liquid

Process Pressure:

-0.1～1.6MPa

Power Supply:

Two-wire /DC24V Four-wire /DC12~24V Four-wire /AC220V

Highlight:

Non Contact FMCW Radar Level Gauge

Slurry Storage Tank Radar Level Gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

200-700

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram， Paypal

Supply Ability

1000 Piece/Pieces per Week negotiable

KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot

Get Best Price

Video

0.1m~3m Capacitive Water Level Sensor High Performance And Wide Range

Get Best Price

1m Liquid Tank Level Sensor IP67 Fluid Level Meter RS485 Output

Get Best Price

Video

RS232 Output 1m Ultrasonic Level Meter 40KHZ Frequency IP67 Tank Water Level Sensor

Get Best Price

86--17719566736

Contact Now

Product Description

KLD802 Non Contact FMCW OEM RS485 Radar Level Gauge For Slurry Storage Tank

Product Attributes

Attribute	Value
Frequency	80GHz
Output	two-wire /4...20mA/HART protocol
Explosion-proof	Exia IIC T6 Ga/Exd ia IIC T6 Gb
Protection	IP67
Range	0.1m～100m
Medium	non-corrosive liquid, slightly corrosive liquid
Process pressure	-0.1～1.6MPa
Power supply	two-wire /DC24V four-wire /DC12~24V four-wire /AC220V

Product Description

The KLD802 80G radar level gauge adopts frequency modulated continuous wave (FMCW) technology. The antenna emits a high-frequency FM radar signal, and the frequency of the radar signal increases linearly. The transmitted radar signal is received by the same antenna after being reflected by the measured medium.

1. Product Dimension

2. Working Principle

The radar antenna transmits narrow microwave pulse which will be reflected back when reaching the surface of the medium tested and then received again by the antenna system. The signals shall be transmitted to the electric circuit and then converted into level signals.

3. Technical Features

Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the minimum measurement blind zone is 0.05m.
The smaller antenna size satisfies the measurement of more working conditions.
A variety of lens antennas, smaller launch angles, more concentrated energy, and stronger echo signals.
Stronger penetration capability for use in conditions with adhesion and condensation.
Larger dynamic signal range for more stable measurement of low dielectric constant media.
Multiple measurement modes with fast radar response.

4. Technical Specification and Model Selections

Model	KLD802
Medium	non-corrosive liquid, slightly corrosive liquid
Measuring range	0.1m~10/20/30/60/100m
Process connection	flange ≥ DN80
Process temperature	-40～110℃
Process pressure	-0.1～1.6 MPa
Antenna size	32mm lens antenna
Antenna material	PTFE
Accuracy	±1mm (range below 35m) ±5mm (range between 35m and 100m)
Protection class	P67
Center frequency	80GHz
Launch angle	3°
Power supply	Two-wire /DC24V / four-wire /DC12~24V / four-wire /AC220V
Casing	aluminum/plastic/stainless steel
Signal output	two-wire /4...20mA/HART protocol four-wire / 4...20mA/ RS485 Modbus

5. Installation Requirements

When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles.

6. Electrical Connection

Power Supply (4～20) mA/HART(2 wire): The power supply and the output current signal share a two-core shielded cable.

(4～20) mA(4 wire/6 wire): The power supply needs to be powered separately, and a four-core shielded cable is used for the power supply and current signal.

RS485/Modbus: The power supply needs to be powered separately, and a four-core shielded cable is used for power supply and digital signal.

7. Connection

8. Safety Guide

Please observe the requirements of the local electrical installation regulations! Follow local regulations for personnel health and safety. All operations on the electrical components of the instrument must be completed by professionals who have received formal training.

9. Grade of Protection

This instrument fully meets the requirements of protection class IP66/67. Please ensure the waterproofness of the cable sealing head.

10. Sensor Linearity

The beam angle is the beam angle at which the energy density of the radar wave reaches half of its maximum value (3dB width). Microwaves emit signals out of beam range and can be reflected by interfering objects.
