Place of Origin:
CHINA
Brand Name:
KACISE
Certification:
CE,ISO9001
Model Number:
KLD803
Document:

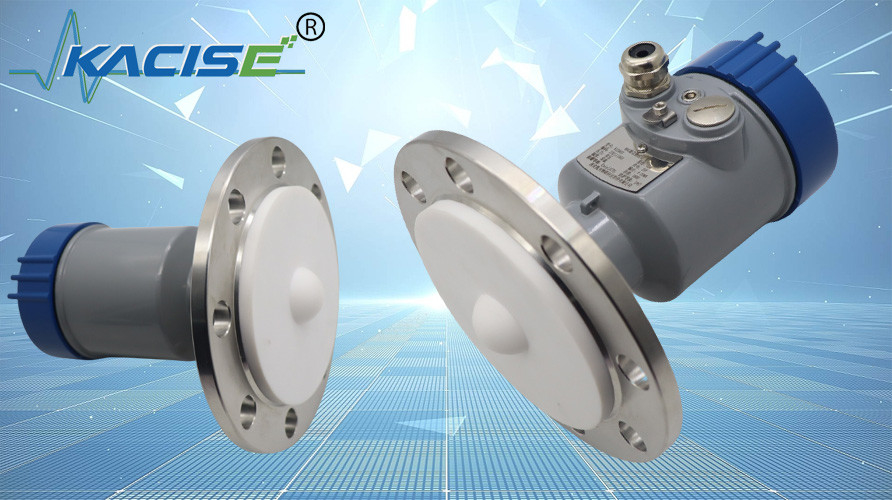

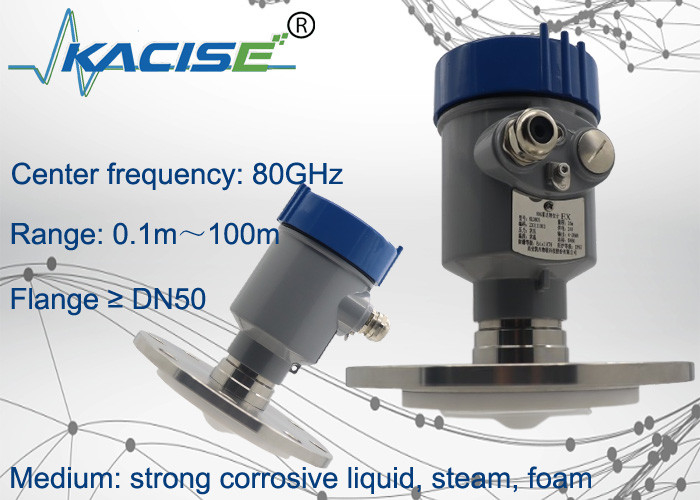

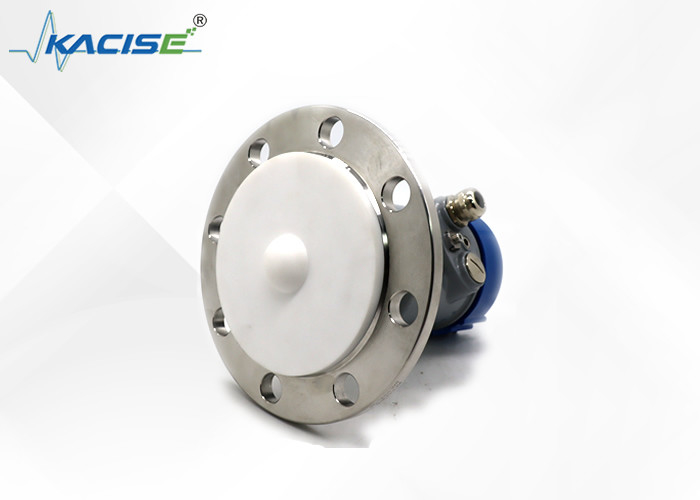

Steam 20m Non Contact Radar Level Gauge OEM RS485 Radar Level Gauge
The Steam 20m Non-Contact Radar Level Gauge is a remarkable OEM product. It is designed to handle steam environments and can accurately measure levels up to 20 meters. With an RS485 interface, it enables seamless communication and integration into various systems. This radar level gauge offers reliable and efficient level sensing for industrial steam applications.
1.Product Dimension
2. Working Principle
The radar antenna transmites narrow microwave pulse which will be reflected back when reaching the surface of the medium tested and then received again by the antenna system. The signals shall be transmitted to the electric circuit and then converted into level signals. As the transmission speed of microwave is so fast, the time used for the microwave transmission to the surface of the medium tested and then reflected back is almost 0.
3. Technical Features
⚫ Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the minimum measurement blind zone is 0.05m.
⚫ The smaller antenna size satisfies the measurement of more working conditions.
⚫ A variety of lens antennas, smaller launch angles, more concentrated energy, stronger echo signals, and higher reliability than other radar products under the same industrial and mining conditions.
⚫ It has stronger penetration and can be used normally in the case of adhesion and condensation.
⚫ The dynamic signal range is larger, and the measurement of low dielectric constant media is more stable.
⚫ Multiple measurement modes, radar response in fast measurement mode
4. Technical Specification and Model Selections
| Model | KLD803 |
| Medium | strong corrosive liquid, steam, foam |
| Measuring range | 0.1m~10/20/30/60/100m |
| Process connection | flange ≥ DN50 |
| Process temperature |
-40～130℃ |
| Process pressure | -0.1～2.5 MPa |
| Antenna size | 34mm lens antenna (according to flange size) |
| Antenna material | PTFE |
| Accuracy | ±1mm (range below 35m) ±5mm (range between 35m and 100m) |
| Protection class | P67 |
| Center frequency | 80GHz |
| Launch angle | 3° |
| Power supply | Two-wire /DC24V / four-wire /DC12~24V / four-wire /AC220V |
| Casing | aluminum/stainless steel |
| Signal output | two-wire /4...20mA/HART protocol four-wire / 4...20mA/ RS485 Modbus |
| Lens Antenna Diameter |
Φ32mm lens Antenna |
Φ42mm lens Antenna |
Φ76mm lens Antenna |
Φ74.7mm lens Antenna with air purge |
| Beam Angle | 7° | 6° | 3° | 3° |
