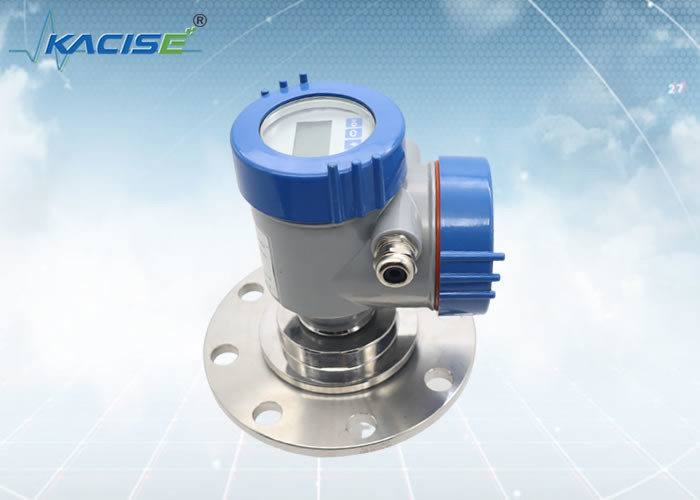

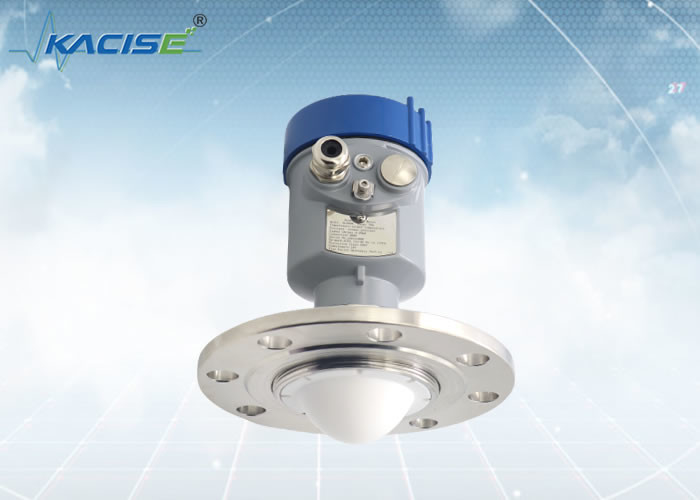

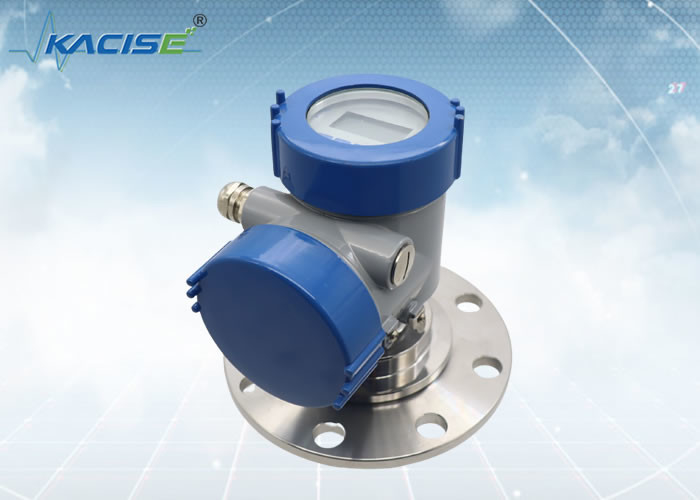

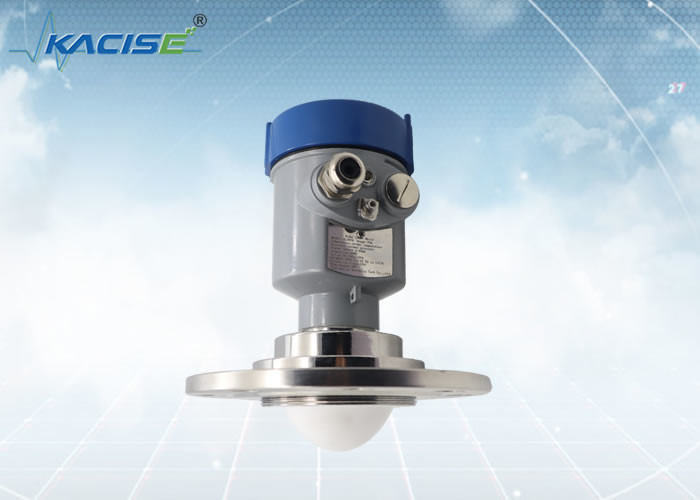

KLD804 Flange Connection Radar Water Level Sensors Two Wire System

KLD804 80G FM Radar Level Sensor

Introduction

80GHz FM continuous wave radar products support four-wire and two-wire applications. Multiple models, the maximum range of the product can reach 100 meters, and the blind area can reach 0.1 meters. Because its lens antenna is larger and its wavelength is shorter, it is especially suitable for the application of strong corrosive liquid, steam and foam. The working mode of transmitting and receiving electromagnetic waves through the lens has unique advantages in high dust and harsh temperature environment (+130 ℃). The instrument shall be fixed by flange or thread to make installation convenient and easy.

Feature

• Strong corrosiveness
• It has good penetration performance. For strong corrosion occasions, the front end of the antenna can be equipped with PTFE or PFA anti-corrosion sheath. And the maximum thickness of 30mm fluoroplastic can be added. It has good pressure resistance while anti-corrosion.
• Foam products
• It has good penetration performance. Therefore, it can penetrate the foam up to 1000mm for liquid level measurement. The terahertz frequency modulation radar level gauge can also measure the foam itself.
• Launch angle
• Radar wave emission angle <2°. Even in extremely complex installation environment, it can measure the material level stably and accurately.

Casing Dimension

Unit in mm:

Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

• datum plane
• vessel center or axis of symmetry

Hoisting Installation

Note: Please avoid vibration, strong electromagnetic interference and loads during installation.

Misalignment method:
1. On-line calibration: on-site process equipment needs to stop production;
2. Reference point calibration: full scale setting;
3. Upper computer calibration: 250Ω resistor, Hart converter, USB interface are required.

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.

What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
