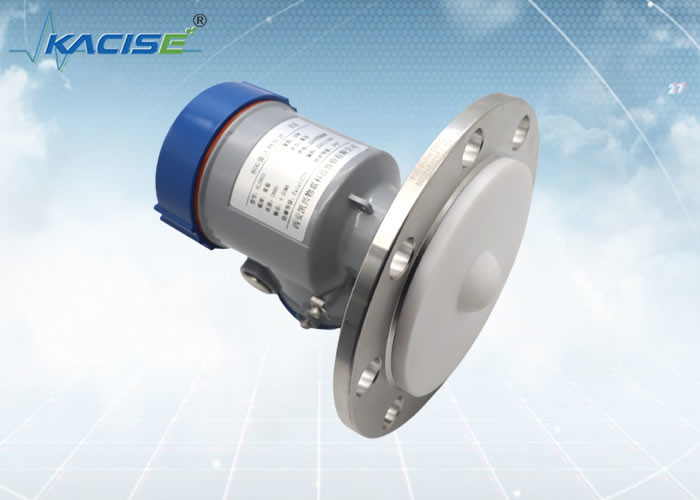

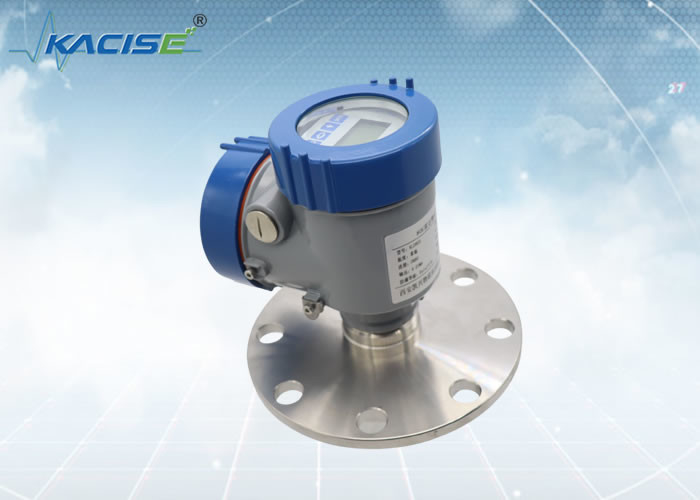

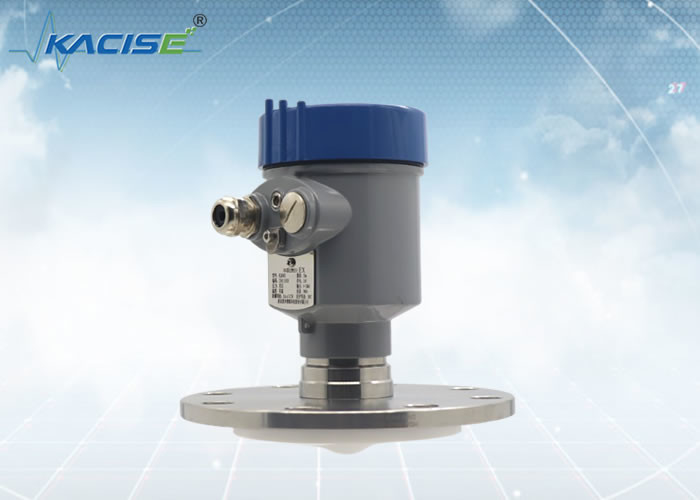

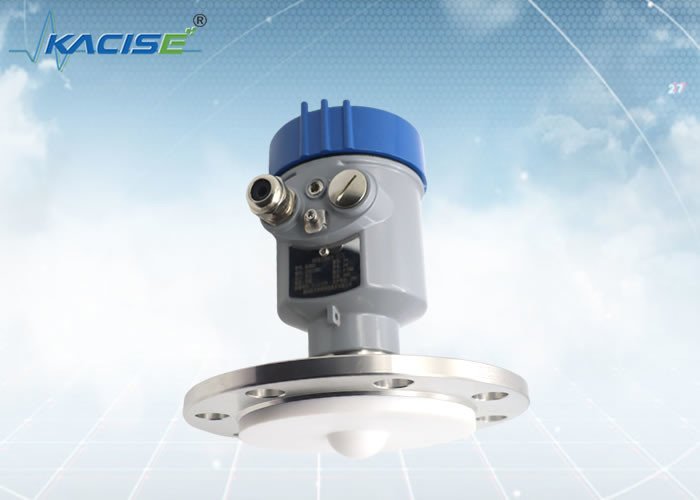

KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output

KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output

  • KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output
  • KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output
  • KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output
  • KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output
KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE/Explosion-proof
Model Number: KLD803
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100+
Contact Now
Detailed Product Description
Medium: Strong Corrosive Liquid, Steam, Foam Measuring Range: 0.1m~10/20/30/60/100m
Process Connection: Flange ≥ DN50 Process Temperature: -40~130℃
Process Pressure: -0.1~2.5MPa Antenna Size: 34mm Lens Antenna (according To Flange Size)
Antenna Material: PTFE Accuracy: ±1mm/±5mm
Protection Class: IP67 Center Frequency: 80GHz
Launch Angle: Power Supply: DC24V/DC12~24V /AC220V
Casing: Aluminum/plastic/stainless Steel Signal Output: 4...20mA/HART Protocol/RS485 Modbus
High Light:

PTFE Radar Distance Sensor

,

RS485 Radar Distance Sensor

,

Flange Radar Level Sensor



KLD803 80G FM Radar Level Sensor

Introduction

KLD800 series 80G radar level gauge adopts frequency modulated continuous wave (FMCW) technology. The antenna emits a high-frequency FM radar signal, and the frequency of the radar signal increases linearly. The transmitted radar signal is received by the same antenna after being reflected by the measured medium. At the same time, the frequency difference between the transmitted signal frequency and the received signal frequency is proportional to the measured distance. The collected frequency difference signal is subjected to fast Fourier transform (FFT) to obtain the spectrum of the reflected echo, and the distance to the target to be measured is calculated based on this.

Feature

△ The 80GHz continuous frequency modulated wave radar has a narrower beam angle, which can better penetrate the space between the mixing blades and the tank wall and reduce the interference caused by the mixing blades;
△ The radar adopts spherical lens, which is not easy to hang in large area, and has obvious advantages in measuring the working conditions of condensation environment combined with proprietary algorithms;
△ The radar has a highly stable algorithm, which can stably track the liquid level measurement such as liquid level splash, splash and eddy current caused by mixing and spoiler;


Advantages of PTFE

  • PTFE offers many unique advantages. These include:
  • Wide operating temperatures (-400° F to 500° F)
  • Resistance to Corrosion (great replacement for rubbers which are affected by corrosion)
  • Excellent Electrical Properties
  • Unlimited Shelf Life
  • High resistance to water, moisture & UV
  • Low coefficient of friction
  • High Flexural Strength
  • Strong non-stick properties
  • Good fatigue resistance under low stress
  • Availability of food, medical and high-purity grades
  • Low water absorption/hydrophobic

KLD803

KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output 0

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40~130℃

Process pressure: -0.1~2.5MPa

Antenna size: 34mm lens antenna (according to flange size)

Antenna material: PTFE

Accuracy: ±1mm (range below 35m)

±5mm (range between 35m and 100m)

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus



Product Dimension

Unit in mm:



KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output 1



Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

  • datum plane
  • vessel center or axis of symmetry

KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output 2   KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output 3



Hoisting Installation

KLD803 PTFE Material Radar Distance Level Sensor With RS485 4 - 20mA Output 4



Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.



Advantages of using a 4 to 20 mA Signal

  • It can be run over long distances with minimal signal losses compared to voltage type signals
  • A varying current loop load impedance or supply voltage will not significantly affect the signal as long as it does not exceed recommended component limits
  • Rugged signal with low electromagnetic susceptibility
  • Saves on cable wire because it only needs 2 wires to function
  • Live zero reading verifies sensor is electrically functional

The major advantages of RS-485 interface are:

  • Two-way data exchange via one twisted pair of wires;
  • support for several transceivers connected to the same line, i.e., the ability to create a network;
  • long length of the communication line;
  • high transmission speed.

What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
