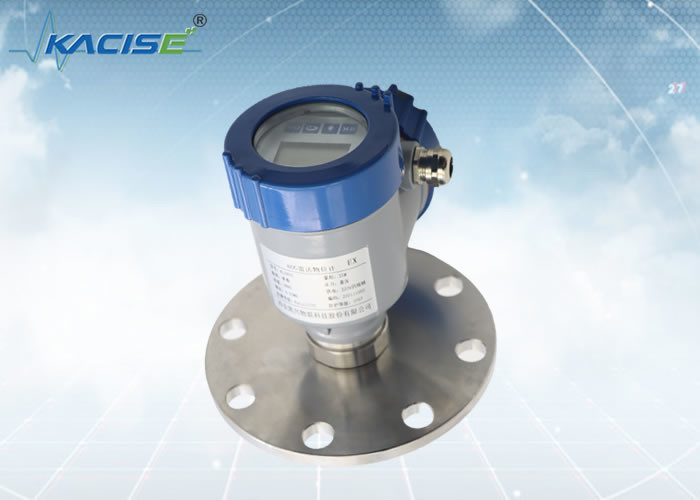

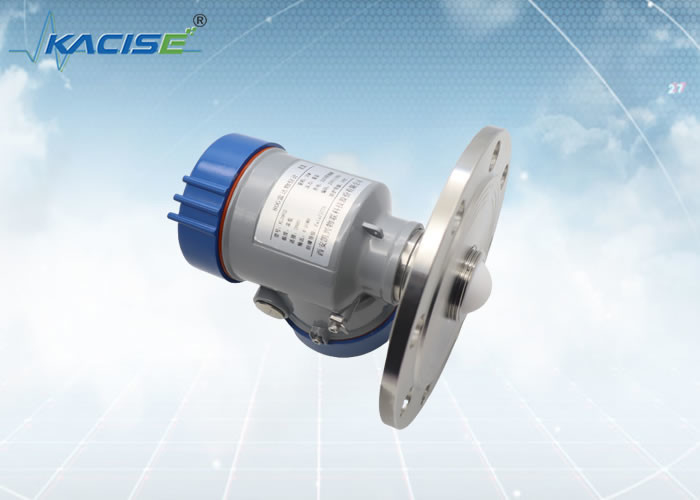

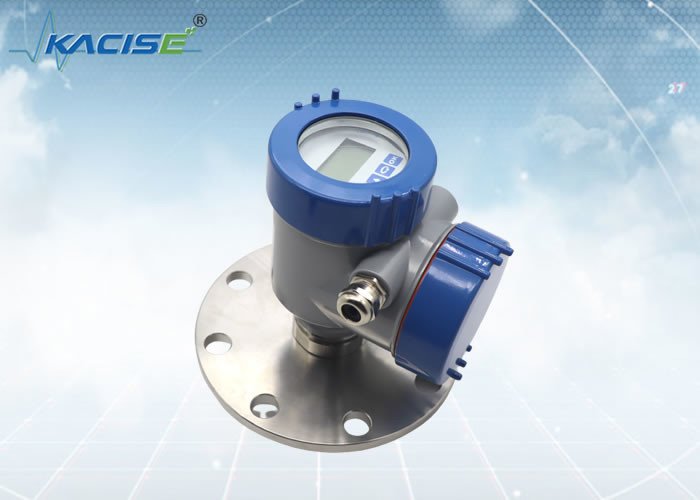

Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802

Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802

  • Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802
  • Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802
  • Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802
  • Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802
Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802
Product Details:
Place of Origin: China
Brand Name: Kacise
Model Number: KLD802
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100+
Contact Now
Detailed Product Description
Medium: Non-corrosive Liquid, Slightly Corrosive Liquid Measuring Range: 0.1m~10/20/30/60/100m
Process Connection: Flange ≥ DN80 Process Temperature: -40~110℃
Process Pressure: -0.1~1.6MPa Antenna Size: 32mm Lens Antenna
Antenna Material: PTFE/overall Filling Accuracy: ±1mm/±5mm
Protection Class: IP67 Center Frequency: 80GHz
Launch Angle: Power Supply: DC24V/DC12~24V /AC220V
Casing: Aluminum / Plastic / Stainless Steel Signal Output: 4...20mA/HART Protocol/RS485 Modbus
High Light:

RS485 Radar Sensor

,

Stainless Steel Casing Radar Sensor

,

20mA Water Level Monitoring System

KLD802 80G FM Radar Level Sensor

Introduction

Radar level sensor antenna emits and narrow microwave pulse. This pulse propagates in space at the speed of light. When it encounters the surface of the measured medium, part of its energy is reflected back and received by the same antenna. The time interval between the transmitted pulse and the received pulse is proportional to the distance from the antenna to the surface of the measured medium.

Feature

·Based on the self-developed CMOS millimeter wave RF chip, it can achieve a more compact RF architecture, higher signal-to-noise ratio and smaller blind area.
5GHz working bandwidth enables the product to have higher measurement resolution and measurement accuracy.
·The narrowest 3 ° antenna beam angle, the interference in the installation environment has less impact on the instrument, and the installation is more convenient.
With shorter wavelength and better reflection characteristics on the solid surface, it is not necessary to use universal flange for aiming.
Support remote debugging and remote upgrade, reduce waiting time and improve work efficiency.
·Support Bluetooth debugging of mobile phones, convenient for on-site maintenance



KLD802

Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 0





Medium: non-corrosive liquid, slightly corrosive liquid
Measuring range: 0.1m~10/20/30/60/100m
Process connection: flange ≥ DN80
Process temperature: -40~110℃
Process pressure: -0.1~1.6MPa
Antenna size: 32mm lens antenna
Antenna material: PTFE
Accuracy: ±1mm (range below 35m)
±5mm (range between 35m and 100m)
Protection class: IP67
Center frequency: 80GHz
Launch angle: 3°
Power supply: two-wire /DC24V
four-wire /DC12~24V
four-wire /AC220V
Casing: aluminum/sainless steel
Signal output: two-wire /4...20mA/HART protocol
four-wire / 4...20mA/ RS485 Modbus



Installation

1.Flange Installation
When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.
datum plane
vessel center or axis of symmetry
  Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 1Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 2

2.Hoisting Installation
    Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 3Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 4


Installation Requirements



When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.

Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 5Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 6
           Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 7



Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.



Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 8

Installation connection diagram:

The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.

Too long installation connection will affect the radar performance.

Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 9





Dimensions

Casing Dimension
Unit in mm:

Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 10



Production:

Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802 11



Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
