| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KLD802 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Medium: | Non-corrosive Liquid, Slightly Corrosive Liquid | Measuring Range: | 0.1m~10/20/30/60/100m |
|---|---|---|---|
| Process Connection: | Flange ≥ DN80 | Process Temperature: | -40～110℃ |
| Process Pressure: | -0.1～1.6MPa | Antenna Size: | 32mm Lens Antenna |
| Antenna Material: | PTFE/overall Filling | Accuracy: | ±1mm/±5mm |
| Protection Class: | IP67 | Center Frequency: | 80GHz |
| Launch Angle: | 3° | Power Supply: | DC24V/DC12~24V /AC220V |
| Casing: | Aluminum / Plastic / Stainless Steel | Signal Output: | 4...20mA/HART Protocol/RS485 Modbus |
| High Light: | Remote Debugging Water Tank Level Sensor,IP67 Hart Based Radar Level Sensor,20mA Water Tank Level Meter |
||

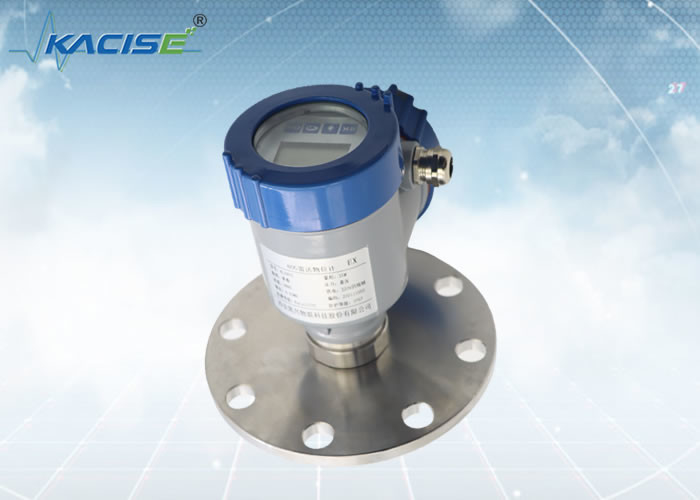

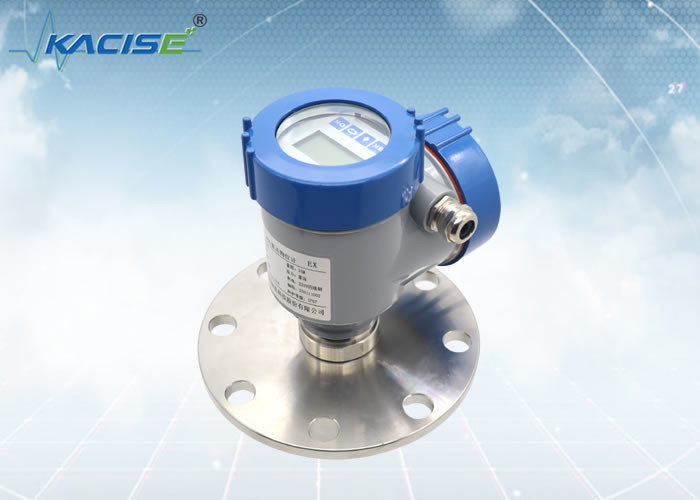

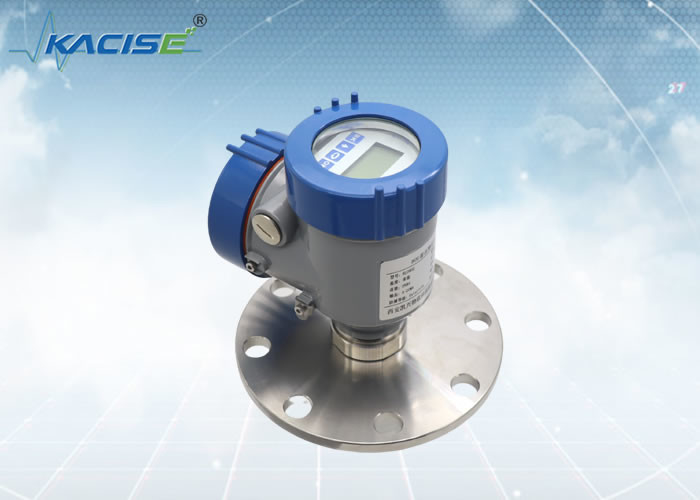

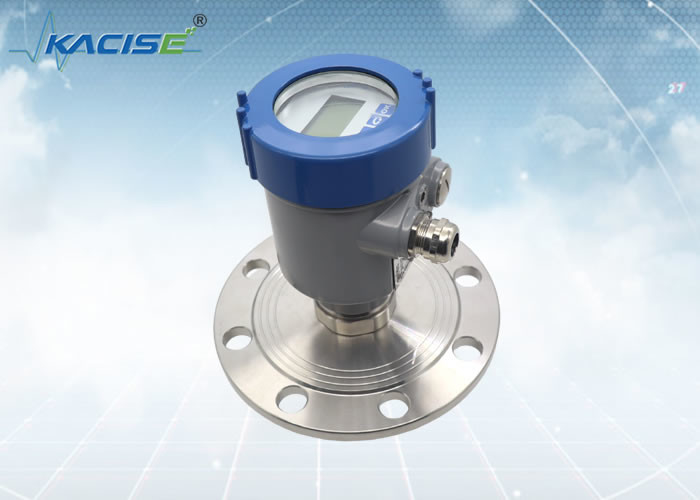

KLD802 80G FM Radar Level Sensor
Introduction
The benefits of choosing the HART protocol mainly include; digital capability, analog capability, availability & interoperability. This protocol can also be utilized with different devices and sensors. HART protocol-based devices are extensively accepted in industries.
Communication and commissioning
The instrument can be debugged through LCD on site, and the optional upper computer software can also be debugged on the PC. The communication between the instrument and PC is carried out through the following ways:
1. USB to RS485 serial port cable (four-wire system);
2. USB to TTL serial port cable (two-wire system);
3. USB to Hart-modem (two-wire system) for communication.
4. Through the Bluetooth debugging of mobile phones, the on-site debugging is safer and more convenient.
5. 4G network, remote debugging through remote module.
Feature
· Measurement accuracy
The measurement accuracy of the terahertz frequency-modulated continuous wave radar level meter is ±1mm. Reliable and high-precision measurement. It really reduces the workload of field operators.
·Sensitivity
It has three adjustable sensitivity. When high sensitivity is selected, the radar response time is less than 1S.
|
KLD802
|
Medium: non-corrosive liquid, slightly corrosive liquid
Measuring range: 0.1m~10/20/30/60/100m Process connection: flange ≥ DN80 Process temperature: -40～110℃ Process pressure: -0.1～1.6MPa Antenna size: 32mm lens antenna Antenna material: PTFE Accuracy: ±1mm (range below 35m) ±5mm (range between 35m and 100m) Protection class: IP67 Center frequency: 80GHz Launch angle: 3° Power supply: two-wire /DC24V four-wire /DC12~24V four-wire /AC220V Casing: aluminum/sainless steel Signal output: two-wire /4...20mA/HART protocol four-wire / 4...20mA/ RS485 Modbus |
Installation
Installation Requirements
When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.
Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.
Installation connection diagram:
The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.
Too long installation connection will affect the radar performance.
Dimensions
Casing Dimension
Unit in mm:
Production:
Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
