| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KLD806 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Medium: | Solid, Storage Container, Process Container, Strong Dust Application | Measuring Range: | 0.3m~10/20/30/60/100m |
|---|---|---|---|
| Process Connection: | Flange ≥ DN100 | Process Temperature: | -40～110℃ |
| Process Pressure: | -0.1～0.3MPa | Antenna Size: | 76mm Lens Antenna (purge Optional) |
| Antenna Material: | PTFE | Accuracy: | ±5mm |
| Protection Class: | IP67 | Center Frequency: | 80GHz |
| Launch Angle: | 3° | Power Supply: | DC24V/DC12~24V /AC220V |
| Casing: | Aluminum / Plastic / Stainless Steel | Signal Output: | 4...20mA/HART Protocol/RS485 Modbus |
| High Light: | Flange Mounting Silo Radar Level Sensor,Rs485 Silo Radar Level Sensor,PTFE Antenna Radar Transmitter |
||

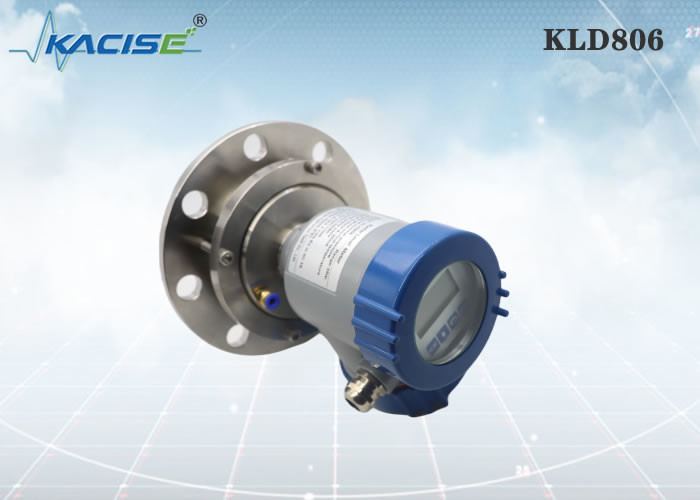

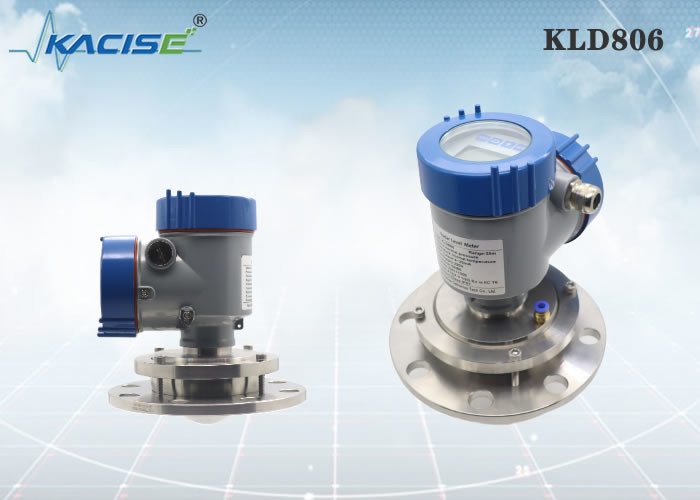

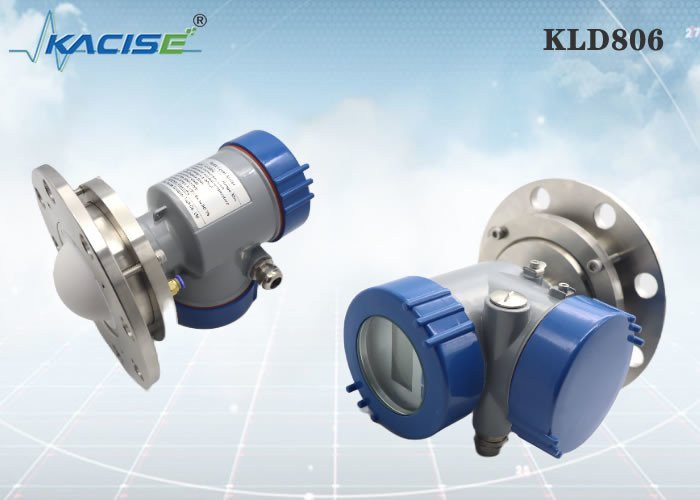

KLD806 80G FM Radar Level Sensor
Introduction
Radar level sensor antenna emits and narrow microwave pulse. This pulse propagates in space at the speed of light. When it encounters the surface of the measured medium, part of its energy is reflected back and received by the same antenna. The time interval between the transmitted pulse and the received pulse is proportional to the distance from the antenna to the surface of the measured medium.
Feature
The best choice for applications with high range dust, strong dust and dust adhesion.
80G continuous frequency modulation wave measurement has better penetrability to high dust environment;
|
KLD806
|
Medium: solid, storage container, process container, strong dust application Measuring range: 0.3m~10/20/30/60/100m Process connection: flange ≥ DN100 Process temperature: -40～110℃ Process pressure: -0.1～0.3MPa Antenna size: 76mm lens antenna (purge optional) Antenna material: PTFE Accuracy: ±5mm Protection class: IP67 Center frequency: 80GHz Launch angle: 3° Power supply: two-wire /DC24V four-wire /DC12~24V four-wire /AC220V Casing: aluminum/plastic/stainless steel Signal output: two-wire /4...20mA/HART protocol four-wire 4...20mA/ RS485 Modbus |
Dimensions
Installation
Installation Requirements
When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.
Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.
Installation connection diagram:
The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.
Too long installation connection will affect the radar performance.
Dimensions
Casing Dimension
Unit in mm:
Production:
Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
