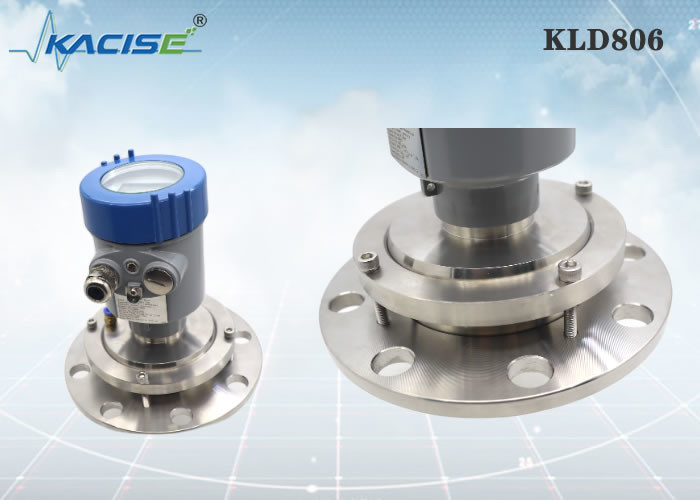

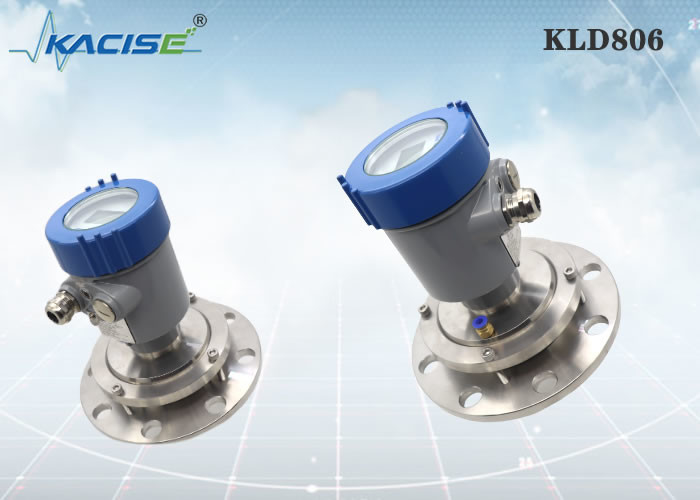

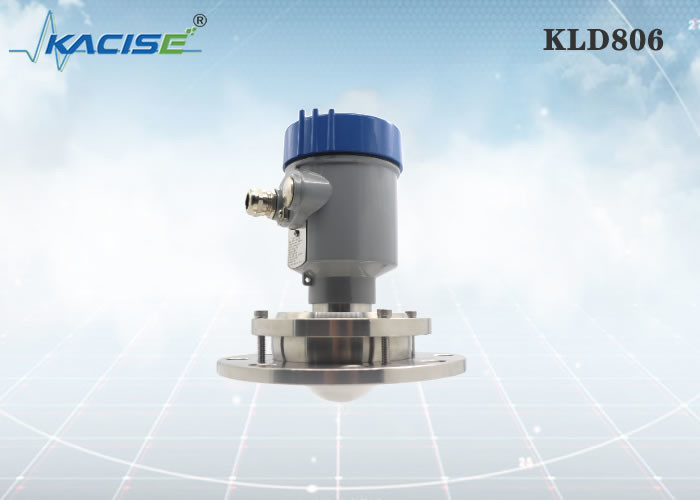

KLD806 Flour Radar Level Sensor With Purge Function Apply In Strong Dust Application

KLD806 80G FM Radar Level Sensor

Introduction

Technology for Silo Level Measurement

The state of the agriculture industry and the scale of operations in today’s market has demanded more effective tools for grain management. Where a silo level monitoring system of the past could have used manual or mechanical methods to determine grain levels, many of the silos used today are massive, making these systems highly impractical.Today, silo-level radar is a popular method for designing an efficient bin-level measurement tool. Silo radar level measurement uses a pulse generator and a grain bin fill sensor to determine the level of solids present in the silo. The pulse is transmitted down a contact cable or rod, then returns when it encounters the change in dielectric marked by the shift from air to the grain. The system then calculates the travel time of the pulse to determine the grain silo level measurement.Another method of wireless bin monitoring employs ultrasonic sensors to launch and receive a mechanical pulse that detects a level-based density change. These systems are relatively small and tend to be highly cost-effective. However, since sound waves are affected by both moisture and ambient temperature, ultrasonic bin level monitors are not ideal for humid environments or those prone to significant temperature fluctuation.A more robust solution, laser silo level sensors require no contact and can accurately detect grain levels at a long-range. These wireless bin monitoring systems are less subject to environmental interference and will perform well even in tall, narrow silos thanks to their concentrated beam style of measurement.

Feature

• High Frequency 80GHz, More Focus
• One type of PTFE Antenna, no cable, rod, or drop structure.
• Suitable for long/tall/narrow applications
• Not affected by temperature changes, dust or vapors
• Dielectric Constant > 2 is recommended
• Support small batch OEM service

​　　

Dimensions

Installation





Production:

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
