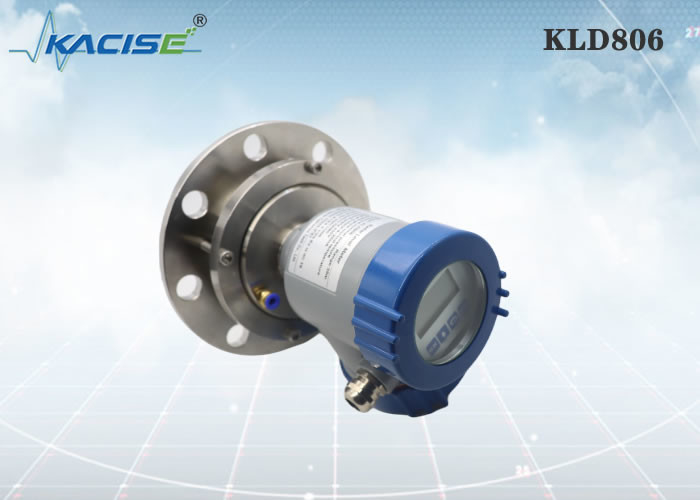

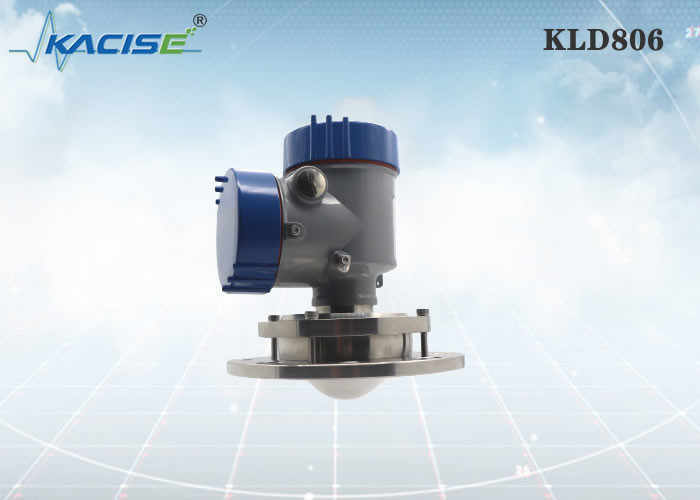

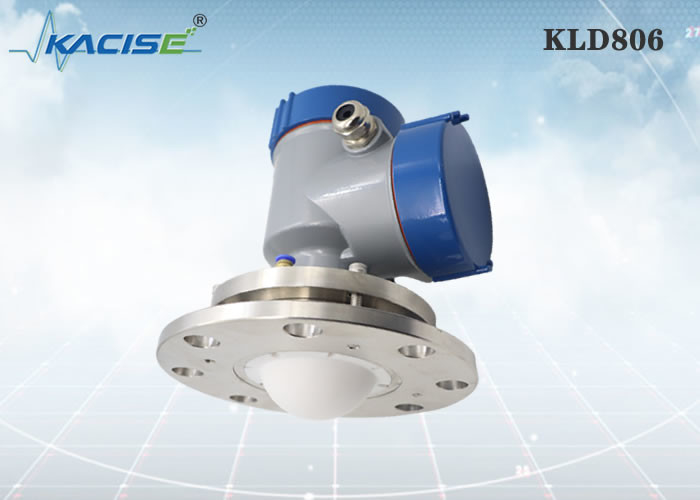

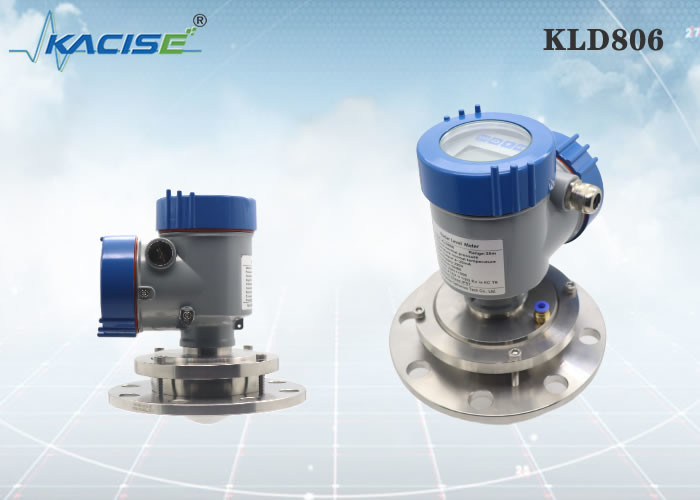

KLD806 Bean Radar Level Sensor With Flange Installation And Small Beam Angle

KLD806 Bean Radar Level Sensor With Flange Installation And Small Beam Angle

Introduction

Beam Angle

The beam angle is the beam angle at which the energy density of the radar wave reaches half of its maximum value (3dB width). Microwaves emit signals out of beam range and can be reflected by interfering objects.

The larger the antenna size and the smaller the beam angle α, the less interference echoes will be generated.

For more accurate measurements, avoid installing any internal devices (such as limit switches, temperature sensors, bases, vacuum rings, heating coils, baffles, etc.) within the range of the signal beam.

Feature

• High Frequency 80GHz, More Focus
• One type of PTFE Antenna, no cable, rod, or drop structure.
• Suitable for long/tall/narrow applications
• Not affected by temperature changes, dust or vapors
• Dielectric Constant > 2 is recommended
• Support small batch OEM service​

Dimensions

Installation





Production:

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
