KLD806 Radar Transmitter Long Range Detection And Hart Based Monitoring System

Product Details:

Place of Origin:	China
Brand Name:	Kacise
Model Number:	KLD806

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100+

Contact Now

Detailed Product Description

Medium:	Solid, Storage Container, Process Container, Strong Dust Application	Measuring Range:	0.3m~10/20/30/60/100m
Process Connection:	Flange ≥ DN100	Process Temperature:	-40～110℃
Process Pressure:	-0.1～0.3MPa	Antenna Size:	76mm Lens Antenna (purge Optional)
Antenna Material:	PTFE	Accuracy:	±5mm
Protection Class:	IP67	Center Frequency:	80GHz
Launch Angle:	3°	Power Supply:	DC24V/DC12~24V /AC220V
Casing:	Aluminum / Plastic / Stainless Steel	Signal Output:	4...20mA/HART Protocol/RS485 Modbus
High Light:	Hart Based Monitoring Radar Transmitter , Long Range Detection Radar Transmitter , 0.3MPa Radar Level Sensor

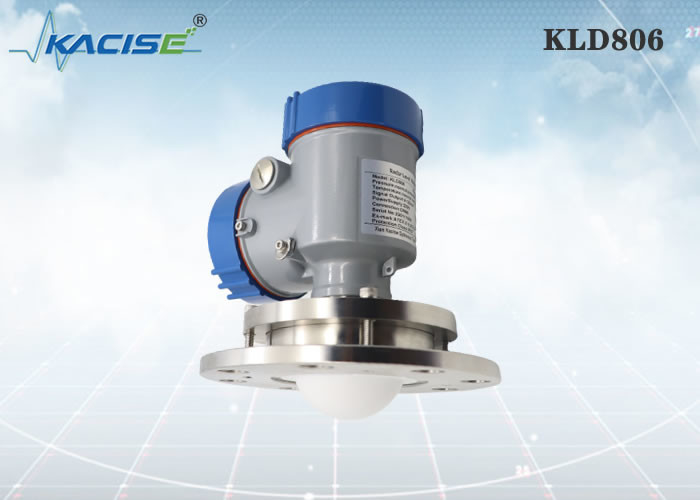

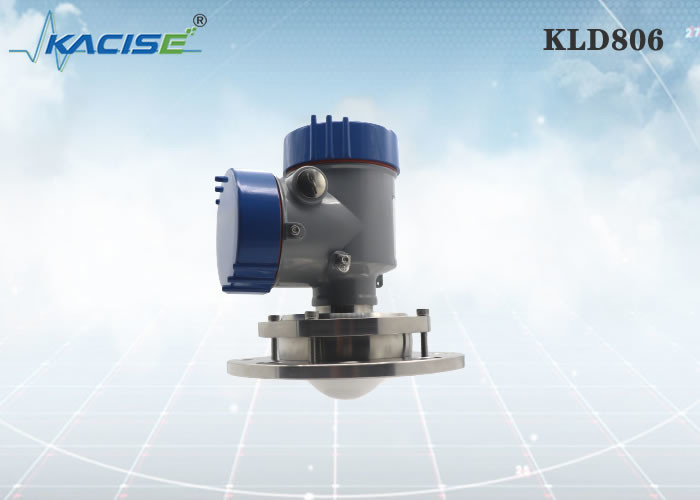

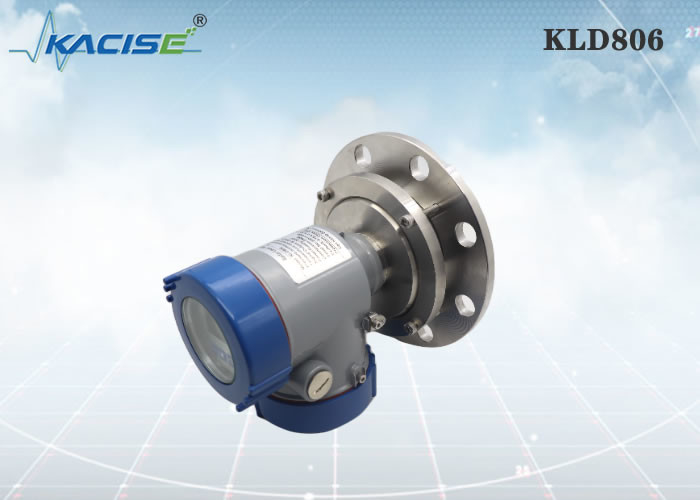

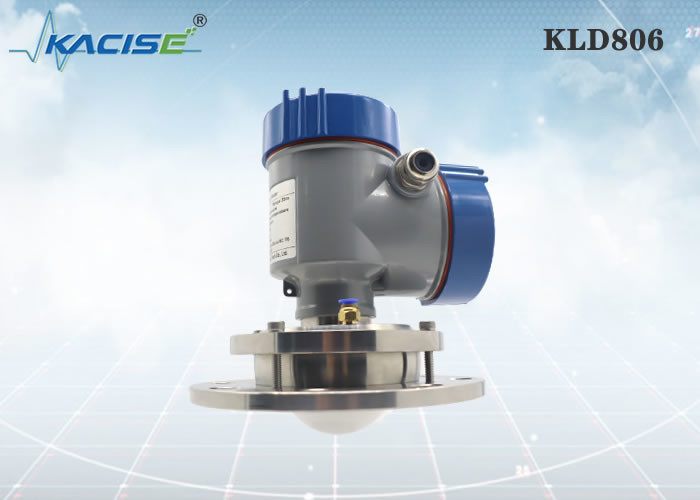

KLD806 80G FM Radar Level Sensor

Introduction

There is often a considerable amount of dust created during the fill cycle of solid materials.
KLD806 80G FM Radar Level Sensor can handle dust in the vapor space without being disturbed. Other technologies such as ultrasonic and laser devices are less suitable since their signal is significantly impacted by dust.

The benefits of choosing the HART protocol mainly include; digital capability, analog capability, availability & interoperability. This protocol can also be utilized with different devices and sensors. HART protocol-based devices are extensively accepted in industries.

Feature

High Frequency 80GHz, More Focus
One type of PTFE Antenna, no cable, rod, or drop structure.
Suitable for long/tall/narrow applications
Not affected by temperature changes, dust or vapors
Support small batch OEM service

KLD806

KLD806 Radar Transmitter Long Range Detection And Hart Based Monitoring System 0

Medium: solid, storage container, process container,

strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: flange ≥ DN100

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Antenna size: 76mm lens antenna (purge optional)

Antenna material: PTFE

Accuracy: ±5mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

Dimensions

Installation

1.Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

① datum plane

② vessel center or axis of symmetry

2.Hoisting Installation

Installation Requirements

When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.

KLD806 Radar Transmitter Long Range Detection And Hart Based Monitoring System 7

Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.

KLD806 Radar Transmitter Long Range Detection And Hart Based Monitoring System 10

Installation connection diagram:

The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.

Too long installation connection will affect the radar performance.

KLD806 Radar Transmitter Long Range Detection And Hart Based Monitoring System 11

Dimensions

Casing Dimension
Unit in mm:

KLD806 Radar Transmitter Long Range Detection And Hart Based Monitoring System 12

Production:

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
