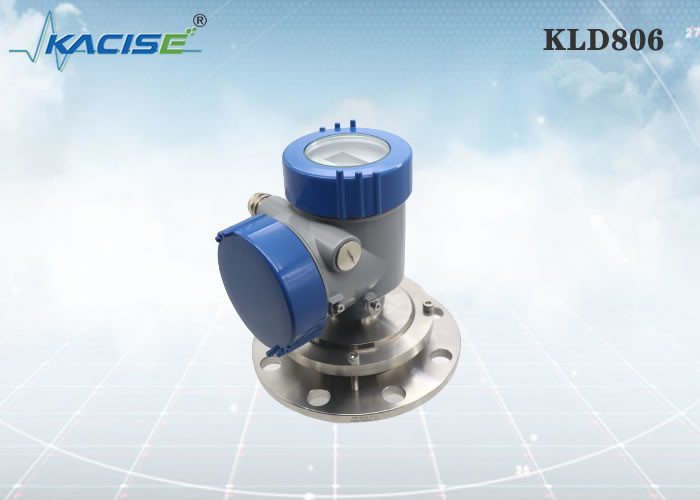

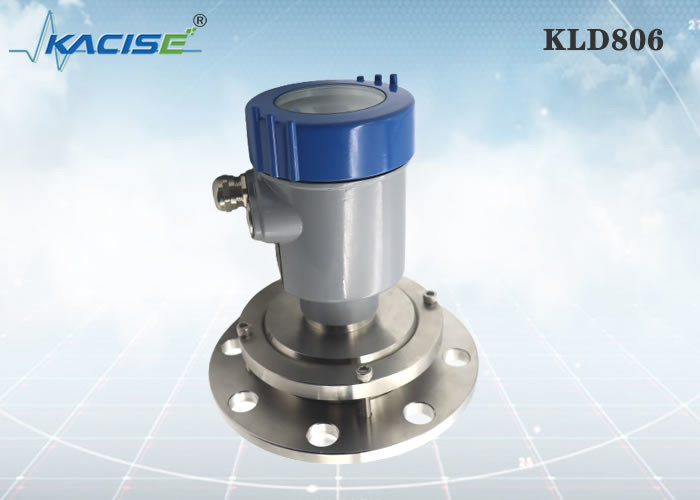

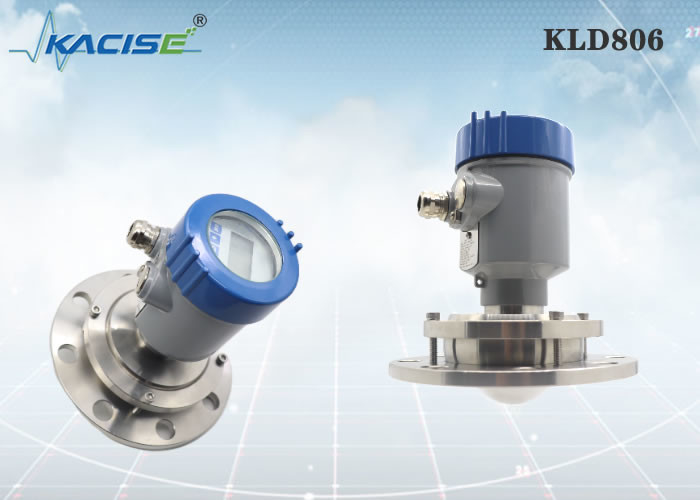

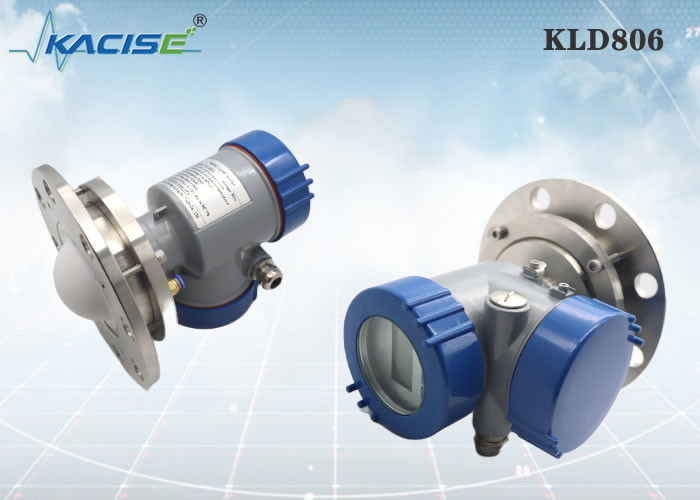

Name: KLD806 Solid State Radar Transmitter With LCD Display Support 4 - 20mA RS485
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD806
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

KLD806 Solid State Radar Transmitter With LCD Display Support 4 - 20mA RS485

RS485 Solid State Radar Transmitter

20mA Solid State Radar Transmitter

LCD Display PTFE Radar Level Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLD806

Request A Quote

Product Details

Medium:

Solid, Storage Container, Process Container, Strong Dust Application

Measuring Range:

0.3m~10/20/30/60/100m

Process Connection:

Flange ≥ DN100

Process Temperature:

-40～110℃

Process Pressure:

-0.1～0.3MPa

Antenna Size:

76mm Lens Antenna (purge Optional)

Antenna Material:

PTFE

Accuracy:

±5mm

Protection Class:

IP67

Center Frequency:

80GHz

Launch Angle:

3°

Power Supply:

DC24V/DC12~24V /AC220V

Casing:

Aluminum / Plastic / Stainless Steel

Signal Output:

4...20mA/HART Protocol/RS485 Modbus

Highlight:

RS485 Solid State Radar Transmitter

20mA Solid State Radar Transmitter

LCD Display PTFE Radar Level Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

KLD806 80G FM Radar Level Sensor

Introduction

A solid state radar transmitter for use in airborne applications has a modular design which extends into the transmitter. The transmitter is formed of a plurality of power modules the number of which is selected based on the power required for a particular application.

Feature

High Frequency 80GHz, More Focus
One type of PTFE Antenna, no cable, rod, or drop structure.
Suitable for long/tall/narrow applications
Not affected by temperature changes, dust or vapors
Dielectric Constant > 2 is recommended
Support small batch OEM service

KLD806

KLD806 Solid State Radar Transmitter With LCD Display Support 4 - 20mA RS485 0

Medium: solid, storage container, process container,

strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: flange ≥ DN100

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Antenna size: 76mm lens antenna (purge optional)

Antenna material: PTFE

Accuracy: ±5mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

Dimensions

Installation

1.Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

① datum plane

② vessel center or axis of symmetry

2.Hoisting Installation

Installation Requirements

When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.

KLD806 Solid State Radar Transmitter With LCD Display Support 4 - 20mA RS485 7

Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.

KLD806 Solid State Radar Transmitter With LCD Display Support 4 - 20mA RS485 10

Installation connection diagram:

The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.

Too long installation connection will affect the radar performance.

KLD806 Solid State Radar Transmitter With LCD Display Support 4 - 20mA RS485 11

Dimensions

Casing Dimension
Unit in mm:

KLD806 Solid State Radar Transmitter With LCD Display Support 4 - 20mA RS485 12

Production:

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
