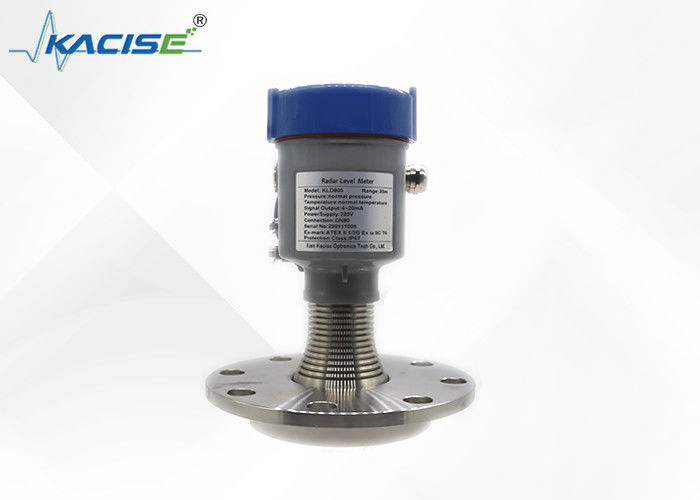

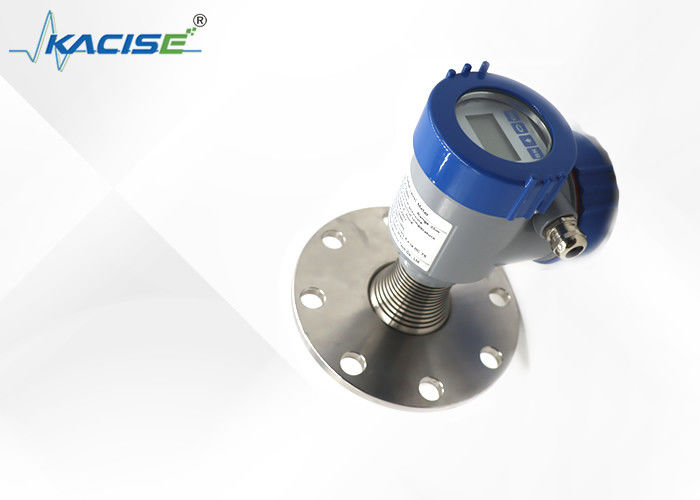

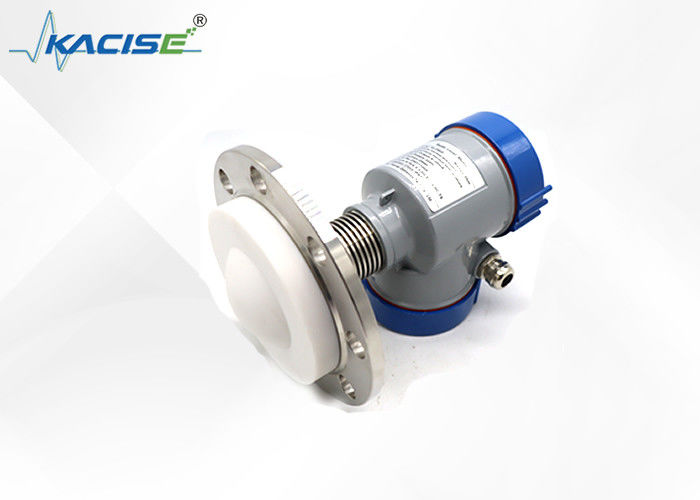

Name: 80G Radar Level Gauge with 80GHz Frequency ±1mm Accuracy and PTFE Antenna for Harsh Environments
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD804
Price: 530.00 USD
Availability: InStock

Home > Products > Fluid Level Meter >

80G Radar Level Gauge with 80GHz Frequency ±1mm Accuracy and PTFE Antenna for Harsh Environments

80G Radar Type Level Gauge

High Pressure Resistance Radar Level Gauge

Aluminum Casing Radar Level Gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLD804

Request A Quote

80G Radar Level Gauge with 80GHz Frequency ±1mm Accuracy and PTFE Antenna for Harsh Environments

Product Details

Medium:

Strong Corrosive Liquid, Steam, Foam, High Temperature. And High Pressure

Measuring Range:

0.1m~10/20/30/60/100m

Process Connection:

Flange ≥ DN80

Process Temperature:

-40～200℃

Process Pressure:

-0.1～2.5MPa

Antenna Size:

76mm Lens Antenna (according To Flange Size)

Antenna Material:

PTFE

Accuracy:

±1mm

Protection Class:

IP67

Center Frequency:

80GHz

Launch Angle:

3°

Power Supply:

Two-wire /DC24V Four-wire /DC12~24V Four-wire /AC220V

Casing:

Aluminum/plastic/stainless Steel

Signal Output:

Two-wire /4...20mA/HART Protocol Four-wire 4...20mA/ RS485 Modbus

Highlight:

80G Radar Type Level Gauge

High Pressure Resistance Radar Level Gauge

Aluminum Casing Radar Level Gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

230-830

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram， Paypal

Supply Ability

1000 Piece/Pieces per Week negotiable

80G Radar Level Gauge with 80GHz Frequency ±1mm Accuracy and PTFE Antenna for Harsh Environments

Get Best Price

Video

KUS550 Analog Output Ultrasonic Sensor for Short Distance Measurement with Low Power Consumption

Get Best Price

Video

KUS550 Series Ultrasonic Level Sensor with Low Power Consumption IP68 Protection and PVDF Shell Material

Get Best Price

80GHz Radar Level Meter with IP67 Protection and PTFE Antenna for High Precision Measurement

Get Best Price

Contact Now

Product Description

KLD800 Series 80G Radar Level Gauge

Product Overview

The KLD800 series 80G radar level gauge offers strong corrosion resistance with advantages including low maintenance, high performance, precision, reliability, and long service life. Compared to contact instruments like capacitors and weights, it provides superior performance in challenging environments.

Microwave signal transmission remains unaffected by atmospheric conditions, making this product suitable for volatile gases, high temperature, high pressure, steam, vacuum, and high dust environments. It enables continuous measurement of various material levels under demanding industrial conditions.

The KLD-80G series features 80G ultra-high frequency millimeter-wave radar technology with measurement accuracy up to ±2mm and a minimum blind zone of 0.05m. The lens antenna design provides a smaller beam angle, making it ideal for complex applications including small-diameter tanks and tanks with stirring coils.

Key Features

Millimeter wave radar with measurement accuracy up to ±2mm and minimum measurement blind zone of 0.05m
Compact antenna size suitable for diverse measurement applications
Multiple lens antennas with smaller launch angles for concentrated energy and stronger echo signals
Enhanced penetration capability for reliable operation in conditions with adhesion and condensation
Larger dynamic signal range for stable measurement of low dielectric constant media
Multiple measurement modes with fast radar response capability

Technical Specifications

Model	KLD805
Medium	Strong corrosive liquid, steam, foam, high temperature, and high pressure
Measuring Range	0.1m~10/20/30/60/100m
Process Connection	Flange ≥ DN80
Process Temperature	-40～200℃
Process Pressure	-0.1～2.5MPa
Antenna Size	76mm lens antenna
Antenna Material	PTFE
Accuracy	±1mm
Protection Class	IP67
Center Frequency	80GHz
Launch Angle	3°
Power Supply	Two-wire / DC24V / Four-wire / DC12~24V / Four-wire / AC220V
Casing	Aluminum / Plastic / Stainless Steel
Signal Output	Two-wire / 4...20mA / HART protocol / Four-wire / 4...20mA / RS485 Modbus

Connection Options

Product Showcase
