Name: KLD805 80G Radar Level Gauge High Temperature And Pressure Resistance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD804
Price: 530.00 USD
Availability: InStock

Home > Products > Fluid Level Meter >

KLD805 80G Radar Level Gauge High Temperature And Pressure Resistance

80G Radar Type Level Gauge

High Pressure Resistance Radar Level Gauge

Aluminum Casing Radar Level Gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLD804

Request A Quote

KLD805 80G Radar Level Gauge High Temperature And Pressure Resistance

Product Details

Medium:

Strong Corrosive Liquid, Steam, Foam, High Temperature. And High Pressure

Measuring Range:

0.1m~10/20/30/60/100m

Process Connection:

Flange ≥ DN80

Process Temperature:

-40～200℃

Process Pressure:

-0.1～2.5MPa

Antenna Size:

76mm Lens Antenna (according To Flange Size)

Antenna Material:

PTFE

Accuracy:

±1mm

Protection Class:

IP67

Center Frequency:

80GHz

Launch Angle:

3°

Power Supply:

Two-wire /DC24V Four-wire /DC12~24V Four-wire /AC220V

Casing:

Aluminum/plastic/stainless Steel

Signal Output:

Two-wire /4...20mA/HART Protocol Four-wire 4...20mA/ RS485 Modbus

Highlight:

80G Radar Type Level Gauge

High Pressure Resistance Radar Level Gauge

Aluminum Casing Radar Level Gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

230-830

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram， Paypal

Supply Ability

1000 Piece/Pieces per Week negotiable

LSBM-100 Surveying and Mapping Laser Ranging Module

Get Best Price

Standard pressure level sensor with 0.25% 0.5% 1.0% accuracy for oil water fuel waste water and sea applications

Get Best Price

Video

High Temperature Liquid Level Transmitter Water Level Sensor

Get Best Price

Video

capacitive smart water tank level indicator sensor to water level measuring sensor transmitter price

Get Best Price

Contact Now

Product Description

KLD805 80G Radar Level Gauge High Temperature And Pressure Resistance

Product Overview

The KLD800 series 80G Radar Level Gauge offers exceptional corrosion resistance with high-frequency millimeter-wave technology. Designed for demanding industrial environments, it provides superior performance with low maintenance requirements, high precision (±1mm), and long service life. Ideal for challenging conditions including high temperature, high pressure, vacuum, steam, high dust, and volatile gas environments.

Key Features

Millimeter wave radar with measurement accuracy up to ±2mm and minimum blind zone of 0.05m
Compact 76mm lens antenna design for versatile installation in small spaces
3° narrow beam angle for concentrated energy and stronger echo signals
Superior penetration capability for reliable performance with adhesion and condensation
Wide dynamic signal range for stable measurement of low dielectric constant media
Multiple measurement modes including fast response option

Technical Specifications

Attribute	Specification
Medium	Strong corrosive liquid, steam, foam, high temperature, high pressure
Measuring range	0.1m~10/20/30/60/100m
Process connection	Flange ≥ DN80
Process temperature	-40～200℃
Process pressure	-0.1～2.5MPa
Antenna size	76mm lens antenna
Antenna material	PTFE
Accuracy	±1mm
Protection class	IP67
Center frequency	80GHz
Launch angle	3°
Power supply	Two-wire /DC24V / four-wire /DC12~24V / four-wire /AC220V
Casing	Aluminum/plastic/stainless steel
Signal output	Two-wire /4...20mA/HART protocol / four-wire /4...20mA/ RS485 Modbus

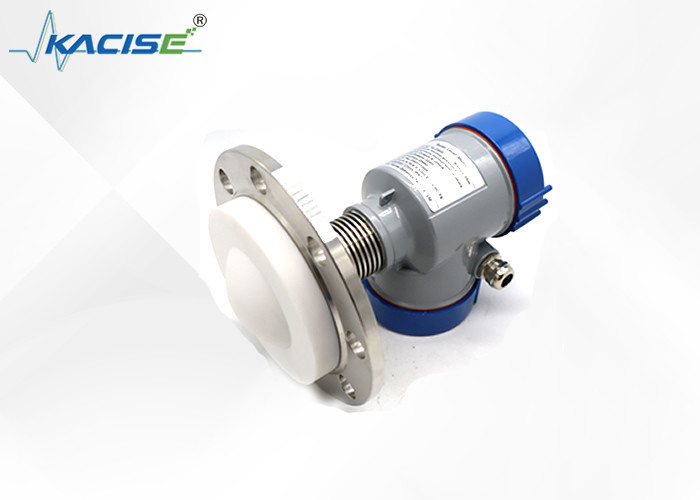

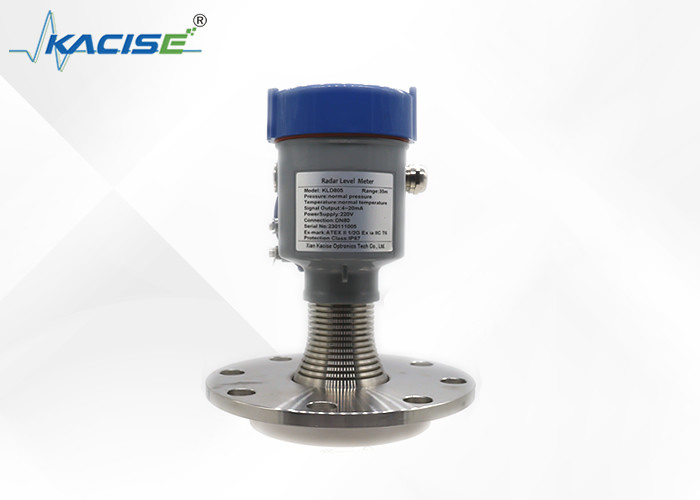

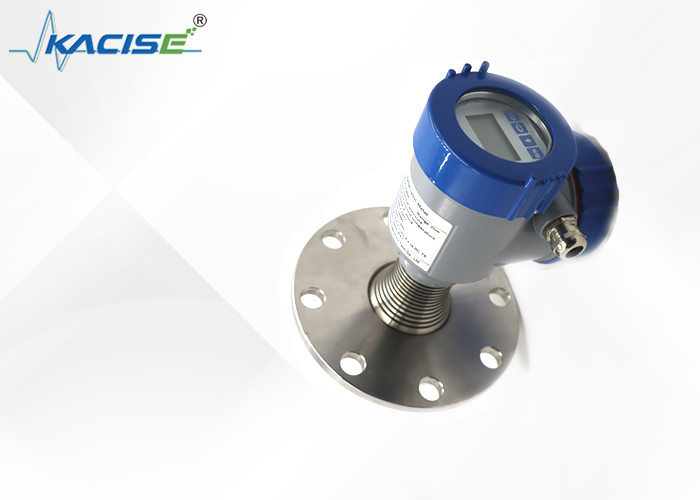

Product Images

Applications

The KLD805 80G Radar Level Gauge is specifically designed for continuous level measurement in challenging industrial environments including chemical processing, power generation, oil & gas, and other sectors requiring reliable performance under extreme conditions.
