Name: KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD801
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

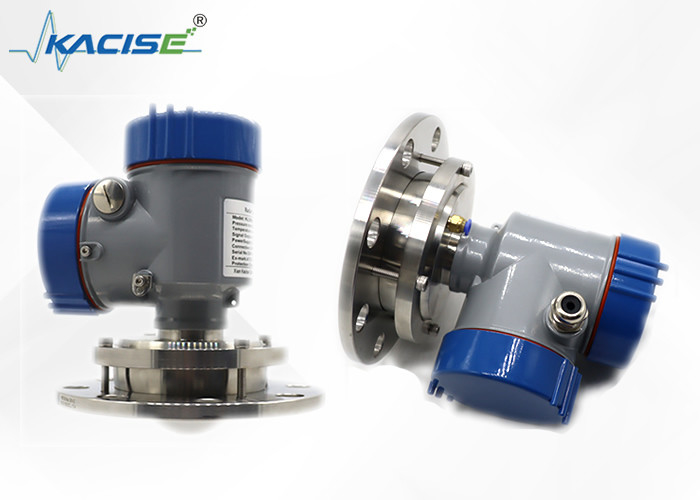

KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot

80G Radar Level Gauge

PTFE Antenna Radar Level Gauge

Small Blind Spot Radar Tank Gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLD801

Request A Quote

Product Details

Medium:

Refer To Detailed Description

Measuring Range:

0.05m～10/20/30/60/100m

Process Connection:

Refer To Detailed Description

Process Temperature:

-40～220℃

Process Pressure:

-0.1～2.5 MPa

Antenna Size:

32/34/76mm Lens Antenna

Antenna Material:

PTFE

Accuracy:

±1/±5mm

Protection Class:

IP67

Center Frequency:

123GHz/80GHz

Launch Angle:

3°/2°

Power Supply:

Two-wire /DC24V

Casing:

Aluminum/plastic/stainless Steel

Signal Output:

Two-wire /4...20mA/HART Protocol

Highlight:

80G Radar Level Gauge

PTFE Antenna Radar Level Gauge

Small Blind Spot Radar Tank Gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot

Get Best Price

Video

0.1m~3m Capacitive Water Level Sensor High Performance And Wide Range

Get Best Price

1m Liquid Tank Level Sensor IP67 Fluid Level Meter RS485 Output

Get Best Price

Video

RS232 Output 1m Ultrasonic Level Meter 40KHZ Frequency IP67 Tank Water Level Sensor

Get Best Price

86--17719566736

Contact Now

Product Description

KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot

Product Attributes

Attribute	Value
Medium	refer to detailed description
Measuring range	0.05m～10/20/30/60/100m
Process connection	refer to detailed description
Process temperature	-40～220℃
Process pressure	-0.1～2.5 MPa
Antenna size	32/34/76mm lens antenna
Antenna material	PTFE
Accuracy	±1/±5mm
Protection class	IP67
Center frequency	123GHz/80GHz
Launch angle	3°/2°
Power supply	Two-wire /DC24V
Casing	aluminum/plastic/stainless steel
Signal output	two-wire /4...20mA/HART protocol

Product Description

The KLD-80G series radar level gauge is an 80G ultra-high frequency, millimeter-wave radar with a measurement accuracy of up to ±2mm and a minimum blind zone of 0.05m. Lens antenna design, smaller beam angle, more suitable for complex working conditions such as small-diameter tanks and stirring coils in the tank.

With stronger penetrability and multiple measurement modes, various antennas can be selected according to different industries and mines to ensure that the radar can also measure stably and accurately under complex conditions such as high temperature, high pressure and high dust.

The high-frequency 80g radar level gauge has the advantages of low maintenance, high performance, high precision, high reliability, and long service life. Compared with contact instruments such as capacitors and weights, it has incomparable advantages.

Key Features

Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the minimum measurement blind zone is 0.05m.
The smaller antenna size satisfies the measurement of more working conditions.
A variety of lens antennas, smaller launch angles, more concentrated energy, stronger echo signals.
It has stronger penetration and can be used normally in the case of adhesion and condensation.
The dynamic signal range is larger, and the measurement of low dielectric constant media is more stable.
Multiple measurement modes, radar response in fast measurement mode.

Model Specifications

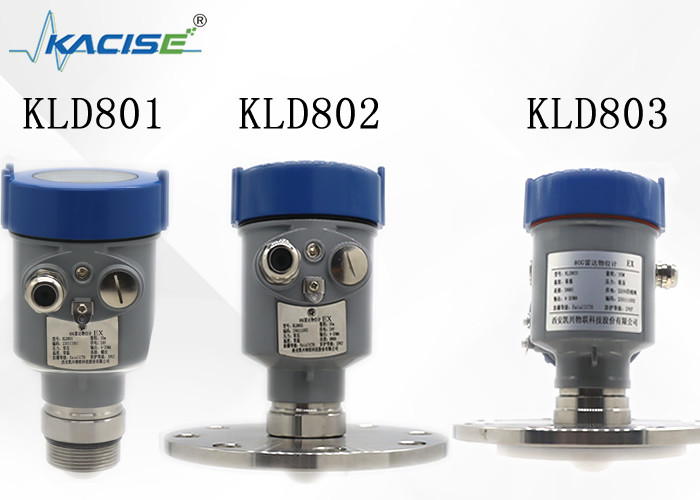

KLD801

Medium: liquid, non-corrosive

Measuring range: 0.05m～10/20/30/60/100m

Process connection: G1½A / 1½NPT thread / flange ≥ DN40

Process temperature: -40～80℃

Process pressure: -0.1～0.3 MPa

Antenna size: 32mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 123GHz

Launch angle: 3°

Power supply: Two-wire /DC24V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

KLD802

Medium: non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN80

Process temperature: -40～110℃

Process pressure: -0.1～1.6MPa

Antenna size: 32mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm (range below 35m) ±5mm (range between 35m and 100m)

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

KLD803

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m～10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～2.5MPa

Antenna size: 34mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm (range below 35m) ±5mm (range between 35m and 100m)

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

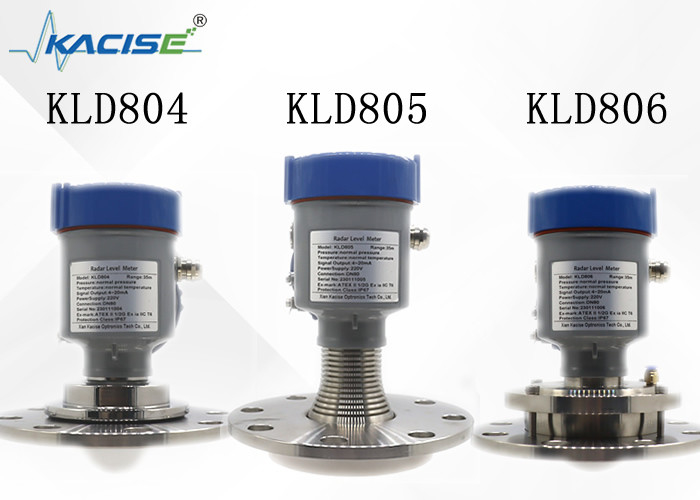

KLD804

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～1.0MPa

Antenna size: 76mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 2°

Power supply: two-wire /DC24V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

KLD805

Medium: strong corrosive liquid, steam, foam, high temperature and high pressure

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN80

Process temperature: -40～200℃

Process pressure: -0.1～2.5MPa

Antenna size: 76mm lens antenna

Antenna material: PTFE/overall filling

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

Casing: aluminum / plastic / stainless steel

Signal output: two-wire /4...20mA/HART protocol

KLD806

Medium: solid, storage container, process container, strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: flange ≥ DN100

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Antenna size: 76mm lens antenna (purge optional)

Antenna material: PTFE

Accuracy: ±5mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

Installation Connection Diagram

The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle. Too long installation connection will affect the radar performance.

KLD801/02

KLD803/KLD804/KLD805A

KLD806

Power Supply

Type	Description
(4～20) mA/HART(2 wire)	The power supply and the output current signal share a two-core shielded cable. Please refer to the technical data for the specific supply voltage range.
(4～20) mA(4 wire/6 wire)	The power supply needs to be powered separately, and a four-core shielded cable is used for the power supply and current signal (the current signal and the RS485 interface can be output at the same time, and a six-core shielded cable is required for simultaneous output).
RS485/Modbus	The power supply needs to be powered separately, and a four-core shielded cable is used for power supply and digital signal. (The current signal and the RS485 interface can be output at the same time, and a six-core shielded cable is required for simultaneous output).

Connection Diagram

Safety Guide

Please observe the requirements of the local electrical installation regulations!

Follow local regulations for personnel health and safety. All operations on the electrical components of the instrument must be completed by professionals who have received formal training.

Please check the nameplate of the instrument to ensure that the product specification meets your requirements. Please ensure that the power supply voltage is consistent with the requirements on the nameplate of the instrument.

Grade of Protection

This instrument fully meets the requirements of protection class IP66/67, please ensure the waterproofness of the cable sealing head.

How to ensure that the installation meets the requirements of IP67:

Make sure the sealing head is not damaged.
Make sure the cable is not damaged.
Please make sure that the cables used meet the requirements of the electrical connection regulations.
Before entering the electrical interface, bend the cable down to ensure that water will not flow into the housing.
Please tighten the cable gland.
Please plug the unused electrical interface with a blind plug.

Casing Dimension

Unit in mm:
