Name: KUS550 Series Compact Ultrasonic Sensor High Sensitivity Corrosion Resistant with measurement accuracy ≤1 %
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

KUS550 Series Compact Ultrasonic Sensor High Sensitivity Corrosion Resistant with measurement accuracy ≤1 %

KUS550 Series Ultrasonic Sensor

Compact Ultrasonic Level Sensor

Corrosion Resistant Ultrasonic Level Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KUS550

Document:

KUS550 series ultrasonic se....8.pdf

Request A Quote

Product Details

Measuring Range:

0.25m~3m （5m Customizable）KUS550A； 0.15m-0.6m（1m Customizable）KUS550B

Blind Spot:

The Dead Zone Of KUS550A Is 0 ... 250 Mm (within 250mm Is Unstable Working Zone, It Is Not Recommended To Work In This Range); The Dead Zone Of KUS550B Is 0-150mm;

Supply Voltage:

3.3 ... 30 VDC, Ripple 10 %SS

Working Current:

≤ 45 MA (fastest Measurement Speed), Typical Power Consumption ≤ 10 MA;

Output Signal:

0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog Output.

Measurement Accuracy:

≤1 %F.S.

Temperature Compensation:

Yes

Ranging Resolution:

0.1mm

Highlight:

KUS550 Series Ultrasonic Sensor

Compact Ultrasonic Level Sensor

Corrosion Resistant Ultrasonic Level Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

KUS550 Series Ultrasonic Sensor Compact High sensitivity Corrosion resistant

Features

High sensitivity.

Compact and robust structure.

IP68 high protection rating.

Corrosion resistant casing, suitable for corrosive medium and application

KUS550 low-power ultrasonic liquid level gauge is a real low-power ultrasonic sensor with low operating current, the stable time is short and the stability is good. Especially suitable for power supplies with short response times and emission times not exceeding 1ms, to meet the requirement of short wake-up time. It has the characteristics of low voltage, low power consumption, easy installation and use; Temperature digital compensation function, wide operating temperature range; high precision, high frequency response, good stability; impact resistance, resistance fatigue, high reliability. Widely used in the Internet of Things, water supply, industrial control and other fields.

Dimension

Unit in the diagram is mm.

Parameter

General specifications

Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS

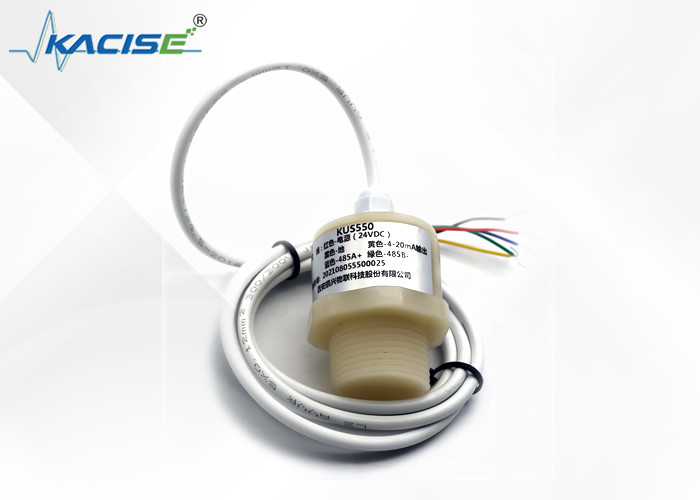

KUS550 Series Compact Ultrasonic Sensor High Sensitivity Corrosion Resistant with measurement accuracy ≤1 % 1

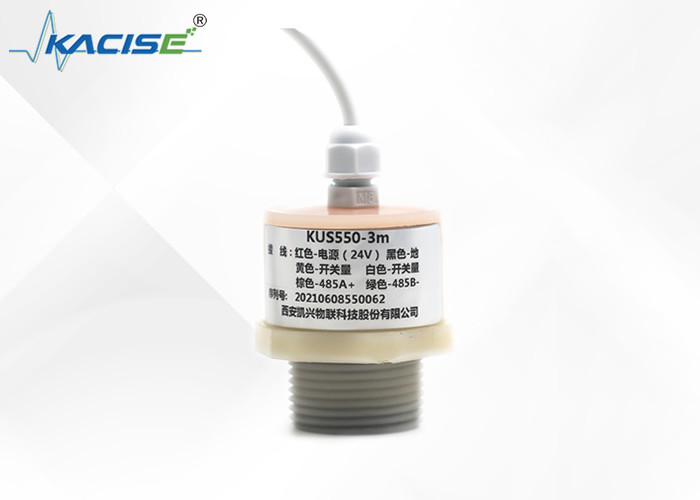

KUS550 Series Compact Ultrasonic Sensor High Sensitivity Corrosion Resistant with measurement accuracy ≤1 % 2

Company Information

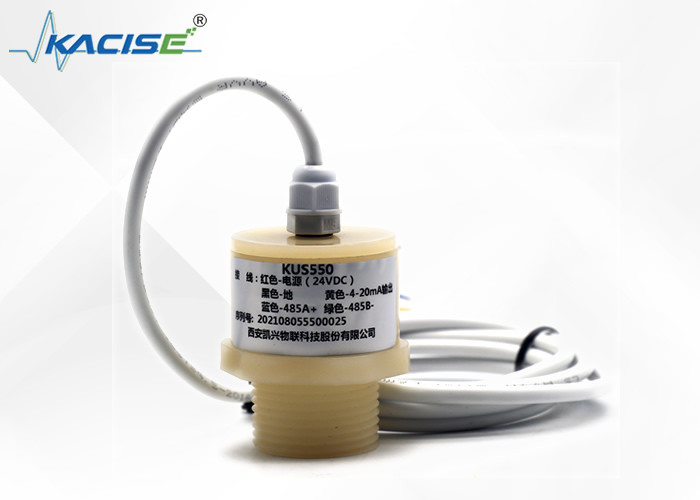

KUS550 Series Compact Ultrasonic Sensor High Sensitivity Corrosion Resistant with measurement accuracy ≤1 % 3
