Name: KUS630 Series Ultrasonic Sensor Fully Sealed IP68 Corrosion Resistant Housing
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS630
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

KUS630 Series Ultrasonic Sensor Fully Sealed IP68 Corrosion Resistant Housing

Corrosion Resistant Housing Ultrasonic Sensor

KUS630 Series Ultrasonic Sensor

Sealed Fluid Level Meter IP68

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KUS630

Request A Quote

Product Details

Measuring Range:

600... 12000 Mm

Blind Area:

0 ... 600 Mm（less Than 600mm Is An Unstable Work Area,it Is Not Recommended To Work In This Range）；there Is A 300mm Blind Zone Version That Can Be Customized.

Power Supply:

3.3 ... 24V DC , Ripple 10 %SS

Working Current:

≤ 45 MA（maximum Measurement Speed） Low-power Version: The Hibernation Power Is Less Than]0.3mA, The Transmit Power Is Less Than 20mA (less Than 2ms), And The Receive Power Is Less Than 5mA(less Than 150ms).

Output:

1 Programmable Analog Output 0-10V. 2 RS485 Output. 3 UART Serial Port Output 4 .4-20mA Output 5.Switch Output

Accuracy:

≤1 %

Temperature Compensation:

Yes

Highlight:

Corrosion Resistant Housing Ultrasonic Sensor

KUS630 Series Ultrasonic Sensor

Sealed Fluid Level Meter IP68

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

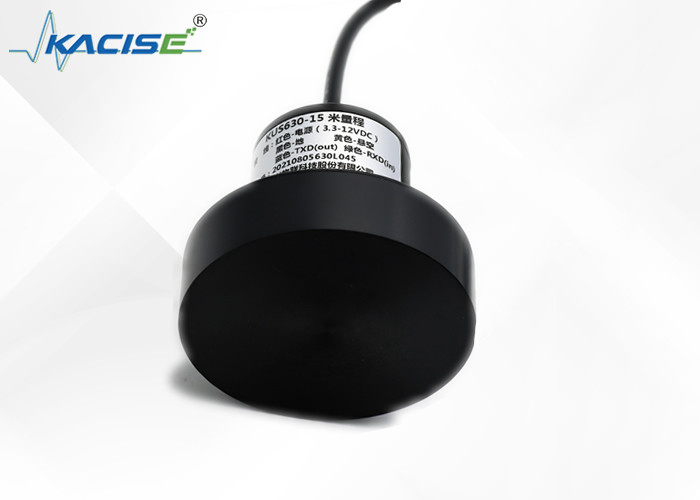

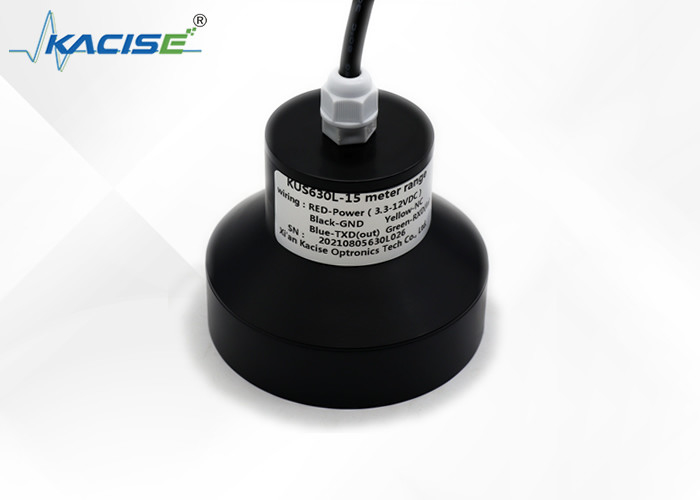

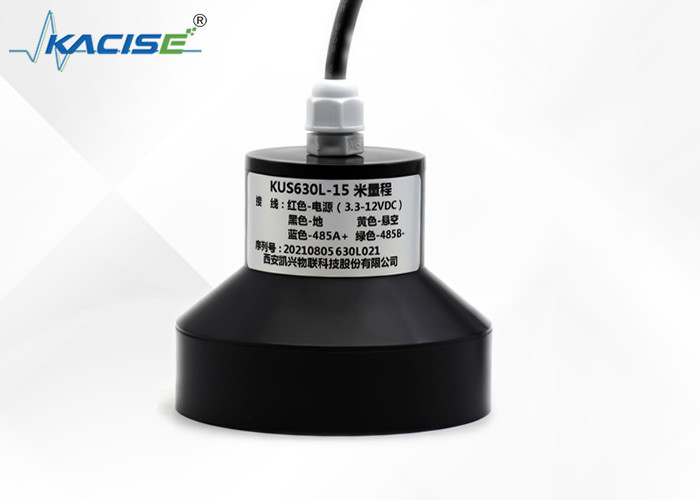

KUS630 Series Ultrasonic Sensor High sensitivity Fully sealed IP68corrosion resistant housing

Features

High sensitivity

Fully sealed

IP68corrosion resistant housing,suitable for corrosive media and applications

KUS series low power ultrasonic liquid level gauge sleep state is less than 0.3mA, wave state is less than 20mA, detection state is less than 5mA. That is, when the power supply is 3.3V, the sleep current is 0.3mA, and the power consumption at this time is 0.0003X3.3=0.00099W. Collect data through high-precision ultrasonic liquid level gauges, monitor liquid level/level height and temperature in real time, and update cloud platform data in real time and issue real-time alarms, thereby reducing the cost of manual inspection and accurately grasping the system status.KUS630 low-power ultrasonic liquid level gauge is a real low-power ultrasonic sensor with low operating current, the stable time is short and the stability is good.

Dimension

The unit is mm.

Parameter

Measuring range	600... 12000 mm
Blind area	0 ... 600 mm(less than 600mm is an unstable work area,it is not recommended to work in this range)；there is a 300mm blind zone version that can be customized.
Power supply	3.3 ... 24V DC , ripple 10 %SS
Working current	≤ 45 mA(maximum measurement speed) Low-power version: the hibernation power is less than]0.3mA, the transmit power is less than 20mA (less than 2ms), and the receive power is less than 5mA(less than 150ms).
Output	1 Programmable analog output 0-10V. 2 RS485 output. 3 UART serial port output 4 .4-20mA output 5.Switch output
Accuracy	≤1 %
Temperature compensation	Yes

The working conditions

Operating temperature	-40…85℃ (233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical	5-wire cable / 6 wire cable for switch ouput
Protection grade	IP68
Material Housing	PVC /PVDF/PTFE(Default PVC)

Sensor Function

Analog

The analog output can be set through RS485, and the sensor can work in 8 modes. The specific reference is as follows:

Step 1: Connect to the host computer through serial port debugging assistant or modus debugging assistant.

Step 2: is to set a near point reference distance point.

Step 3: set a far point reference point

Step 4: is to set the output voltage or current of the near-point reference point.

Step 5: Set the output voltage or current of the remote reference point.

Step 6:is to set the analog output as the switch characteristic selection.

Step7: is to set the analog output as a linear output or switch output option.

Step 8: reset the sensor to make the new parameters take effect.

8 working modes of the sensor.

1: Open window mode by default

2: The window mode is closed by default

3: Single point mode is turned on by default

4: Single point mode is turned off by default

5: Single-point hysteresis mode is turned on by default

6: Single-point hysteresis mode is turned off by default

7: The presence or absence detection mode is turned on by default

8: The presence or absence detection mode is turned off by default
