| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KUM-A |
| Price: | $200.00/pieces >=1 pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 200 Piece/Pieces per Month |
| Description: | KUM-A | Type: | Liquid Level Sensor |
|---|---|---|---|
| Usage: | Measuring Liquid Level | Theory: | Ultrasonic Level Sensor |
| Output: | 4~20mA/510Ωload | Range: | 5m,10m,15m,20m,30m, 40m,50m,60m |
| Resolution: | 3mm Or 0.1%(bigger) | Display: | Chinese And English LED |
| Analog Output: | Four-wire 4~20mA/510Ω Load Two-wire 4 ~ 20mA/250Ω Load | Relay Output: | Two Groups: AC 250V/ 8A Or DC 30V/ 5A Status Can Be Programmed |
| Power Supply: | Standard:24VDC Optional: 220V AC+15% 50Hz | Environment Temperature: | LED : -20~+60℃, Probe : 20~+80℃ |
| Communication: | Option:485,232 Communication (manufactures Agreement) | Protection Grade: | LED: IP65, Probe: IP68 |
| Accuracy: | 1% | Port: | Xi'an Or Other |
| High Light: | Ultrasonic Water Level Indicator Sensor,Tank Ultrasonic Water Level Indicator |
||

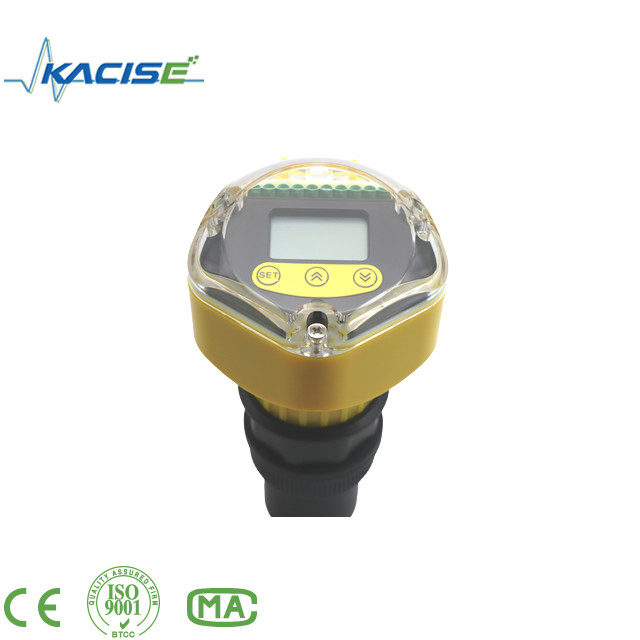

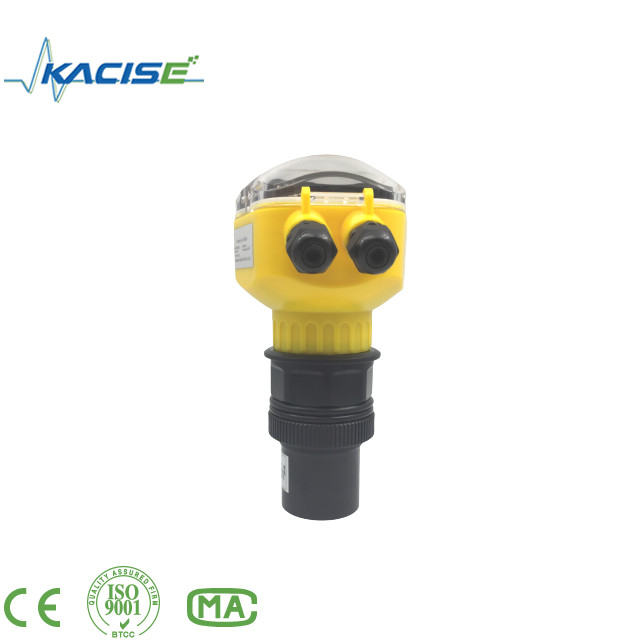

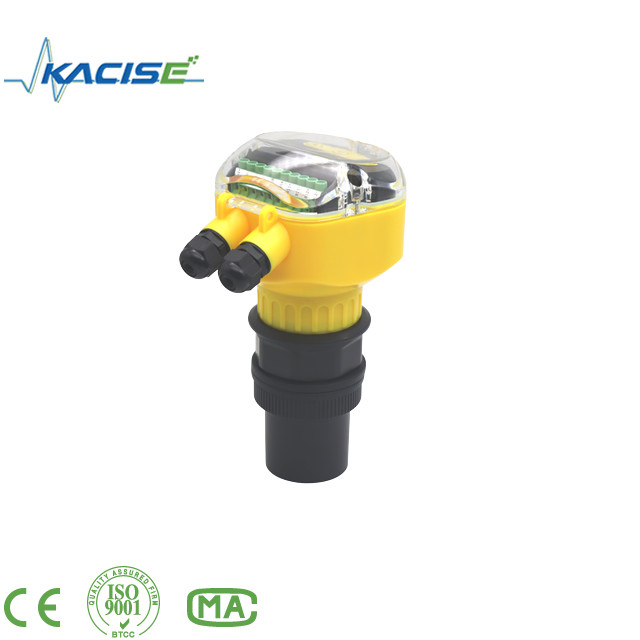

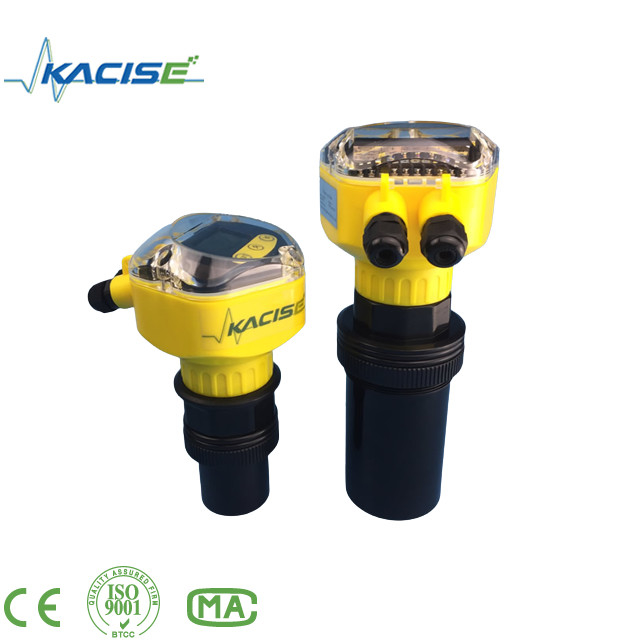

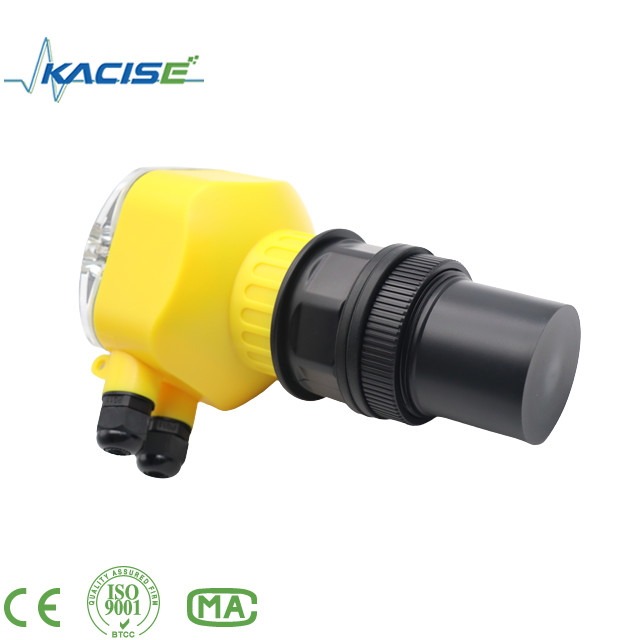

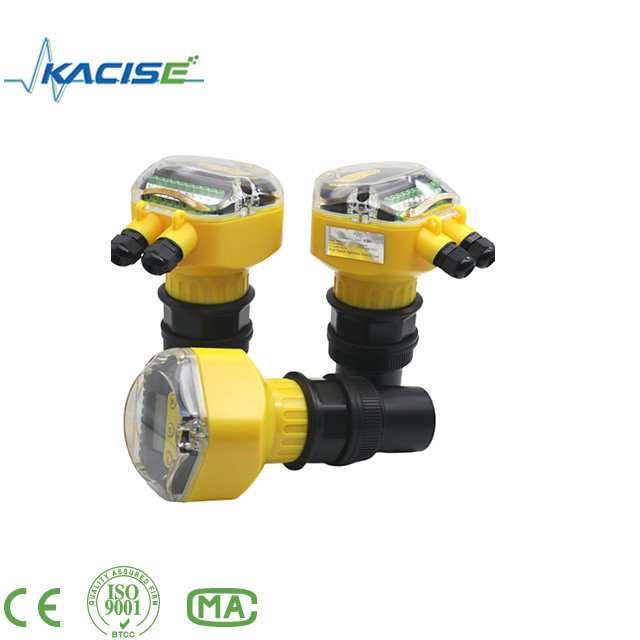

Brief introduction of ultrasonic level sensor
This ultrasonic sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.
Features of long range ultrasonic leve sensor
Parameters
|
Function |
Integral type |
Remote type |
|
Measurement range |
5m,10m,15m,20m,30m,40m,50m,60m |
5m,10m,15m,20m,30m,40m,50m,60m,70m |
|
Measurement accuracy |
0.5%~1% |
|
|
resolution |
3mm or 0.1%(The larger one is effective) |
|
|
display |
Chinese and English LCD |
Chinese and English LCD |
|
Analog output |
4wires4~20mA/510Ω load 2wires4~20mA/250Ω load |
4~20mA/510Ω load |
|
Relay output |
2 AC 250V/ 8A or DC 30V/ 5A state programmable(optional) |
2 for GXUMS series product , 4 for GXUMSD series AC 250V/ 8A or DC 30V/ 5A state programmable( optional ) |
|
Power supply |
Standard configuration 24VDC(default) 220V AC+15%@50Hz or 110V AC+15%@60Hz |
220V AC+15%@50Hz(default) 24VDC or 12VDC or 110V AC+15%@60Hz |
|
Environment temperature |
Display instrument-20~+60℃, transducer-20~+80℃ |
Display instrument -20~+60℃, transducer-20~+80℃ |
|
Communication port |
RS485(default),RS232 |
|
|
Protocol |
Modbus-RTU(default) or Modbus-ASCII |
|
|
Protection grade |
Display instrument IP65,transducer IP68 |
|
|
transducer cable |
no |
10m(default) can be ordered as need but cannot longer than 100m |
|
Transducer installation |
According to the range and transducer select |
According to the range and transducer select |
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: Whan information need to be provided to choose the suitable ultrasonic leve lsensor?
A: Please provide us application field, output, measuring range, medium ( liquid type ), temperature, installation method. Based on these infoemations, we can choose model and quote for you quickly.
2. Q: How can we guarantee quality?
A: Always a per-production sample before mass production;
Always final inspection before shipment.
3 Q: Are you a trade company or a manufacturer?
A: We are an ISO9001 approved manufacturer specialized in level and folw measuring instruments.
0EM & ODM service are available. Welcome to visit us.
4. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6.Q: What is Trade Assutance payment method?
A: It's free service which can protect your orders from payment to delivery.
And we now have USD104.000.00 of caution money to assure your orders.
7. Q: What is your delivery data?
A: The delivery data is about 3-15 working days after receipt of payment.
8. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
