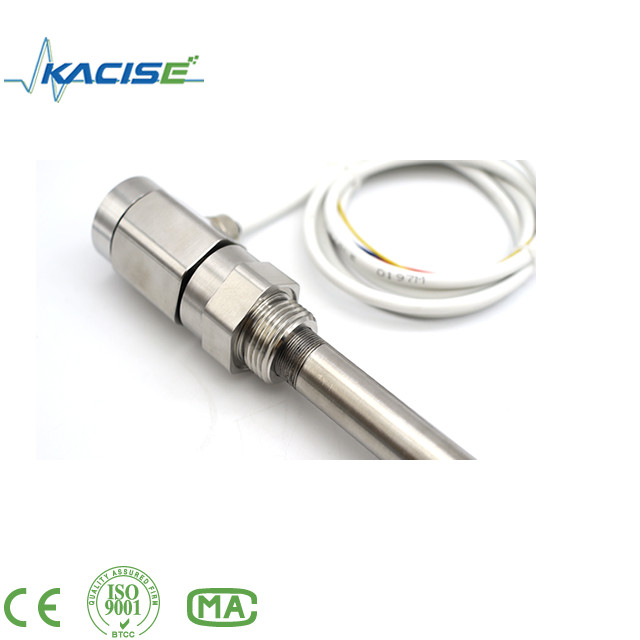

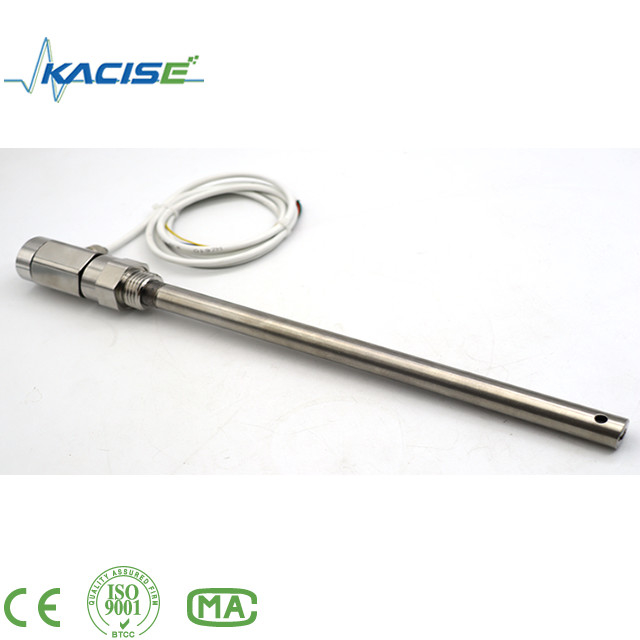

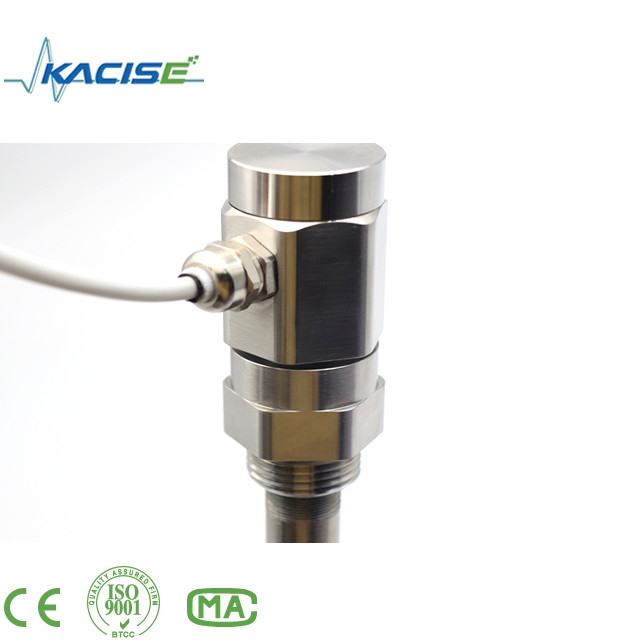

Name: High Accuracy KSLV605 4 - 20mA Diesel Fuel Tank Level Oil Level Sensor For Cars And Trucks
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSLV605
Price: 63.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

High Accuracy KSLV605 4 - 20mA Diesel Fuel Tank Level Oil Level Sensor For Cars And Trucks

Trucks Oil Level Sensor 3m

Diesel Fuel Tank Level Sensor 20mA

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSLV605

Request A Quote

Product Details

Type:

Liquid Level Sensor

Usage:

Liquid Level Sensor

Theory:

Capacitive Level Sensor

Output:

4~20mA, 485 Communication, Etc.

Description:

Liquid Level Sensor

Measuring Range:

0.1~3m

Capacitance Measurement Range:

10PF~500PF

Pressure Range:

-0.1MPa~32MPa

Probe Temperature Resistance:

-50~250℃

Power Supply Voltage:

5~36V DC

Temperature Drift:

≤0.01%FS/ ℃ (within The Range Of 0~70 ℃)

Accuracy:

0.1 Class, 0.2 Class, 0.5 Class, 1 Class

Storage Temperature:

-55℃~+125℃

Explosion-proof Grade:

ExibIICT6

Protection Level:

IP67

Port:

Xi'an Or Other

Highlight:

Trucks Oil Level Sensor 3m

Diesel Fuel Tank Level Sensor 20mA

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$56.00 - $70.00/meters

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Rs485 Intelligent Ultrasonic Sensor 4 - 20mA Wide Range

Get Best Price

GXRS Series Water Tank Level Indicator Sensor Stainless Steel Material

Get Best Price

KUS550 Ultrasonic Sensor For Distance And Level Measurement with ip68

Get Best Price

RS485 Output Fluid Level Meter Beer Tank Liquid Level Measurement Sensor

Get Best Price

86--17719566736

Contact Now

Product Description

High Accuracy KSLV605 4-20mA Diesel Fuel Tank Level Oil Level Sensor For Cars And Trucks

Product Specifications

Attribute	Value
Type	Liquid Level Sensor
Theory	Capacitive level sensor
Output	4~20mA, 485 communication
Measuring range	0.1~3m
Capacitance measurement range	10PF~500PF
Pressure range	-0.1MPa~32MPa
Probe temperature resistance	-50~250℃
Power supply voltage	5~36V DC
Accuracy	0.1 class, 0.2 class, 0.5 class, 1 class
Explosion-proof grade	ExibIICT6
Protection level	IP67

Product Overview

The KSLV605 capacitive intelligent liquid level sensor is a high-performance transmitter suitable for liquid, oil, solid, and interface measurement applications. With no moving parts, it offers exceptional reliability and is unaffected by environmental factors like water vapor, dust, or condensation.

Key Features

Modbus protocol for easy integration
Simple structure with no movable components for high reliability
Multiple signal output options for flexible system configuration
Suitable for high temperature and high pressure applications
Ideal for measuring corrosive liquids including acids and alkalis
Comprehensive overcurrent, overvoltage, and polarity protection
Optional wireless remote transmission capability
Compatible with virtually any medium

Technical Specifications

Detection range: 0.1~30m
Accuracy levels: 0.1 class, 0.2 class, 0.5 class, 1 class
Pressure range: -0.1MPa~32MPa
Probe temperature resistance: -50~250℃
Output signals: 4~20mA, 485 communication
Power supply: 5~36V DC
Materials: 316 stainless steel, 1Gr18Ni19Ti or PTFE
Long-term stability: ≤0.1%FS/year

Product Structure

The capacitive liquid level sensor consists of two main components: the sensor probe and the transmitter. The sensor directly measures within the container, while the transmitter converts capacitance changes into standard 4-20mA current signals.

Display & Wiring

Wiring Options

The KSLV606 display model supports two wiring configurations:

RS485 Connection:

4-20mA Connection:

Installation Note: When first using the sensor, always open the gas phase valve before the liquid phase valve to prevent measurement errors from liquid level fluctuations. Ensure all cable connections are secure and protected against corrosion. Regular maintenance is recommended to maintain optimal performance.
