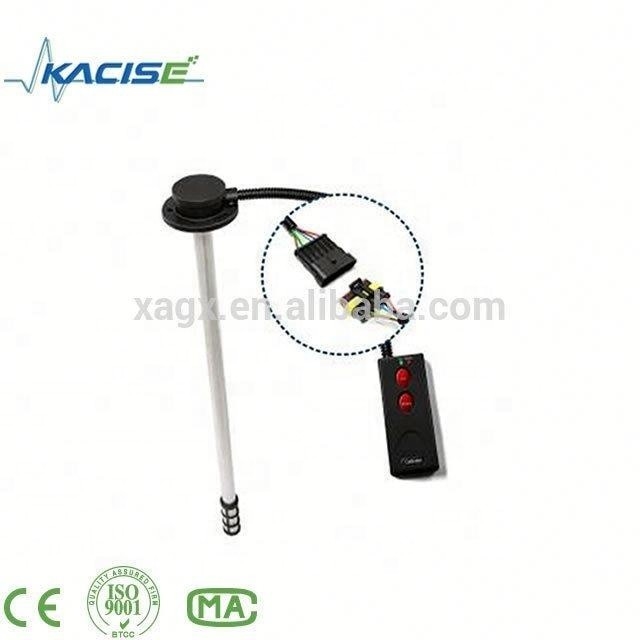

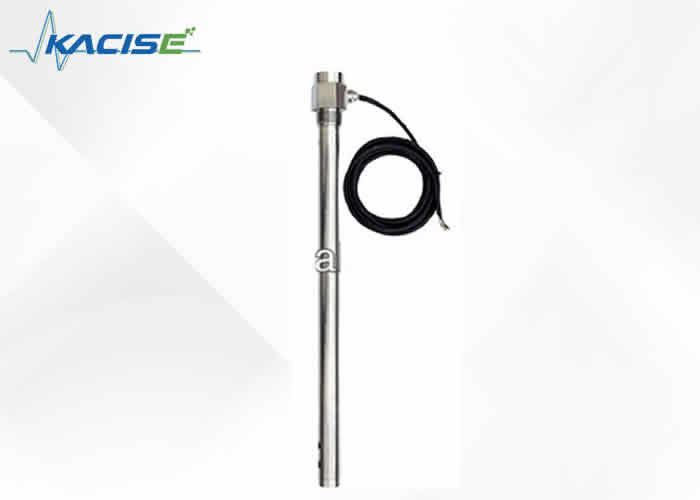

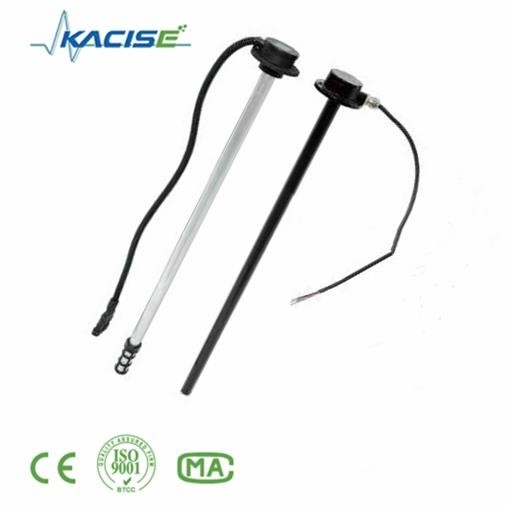

KCF406 Series Digital Fuel Level Sensor 4 - 20mA

 Description of KCF406 series 4-20mA digital fuel level sensor

KCF capacitance level sensor is used to continuously detect fuel level by measuring the capacitance variations as the level changes.

Feature of KCF406 series 4-20mA digital fuel level sensor

• Suitable for vehicle, truck, coach, agrimotor, GPS fleet management, GPS tracking system, generator set, construction machinery and more.
• KCF can be easily shortened to fit different tank depths in the field, and the parameters can be conveniently calibrated with an external calibrator.
• Used for diesel, gasoline and kerosene level measuring.
• Compatible with GPS market leading GPS tracker and software to monitor vehicle fuel level at any time.

Specification of KCF406 series 4-20mA digital fuel level sensor

• Supply voltage : 10~32V or 5V;
• Signal output : 0.5 ~ 4.5V, 0~5V, RS232,RS485,can be customized;
• Resolution ≤1mm;
• Assembly: SAE 5-bolt flange mount, other assembly methods are available;
• Accessories: 5 x M5 screws and 2mm thick NBR gasket. If installing on a gas tank, we recommend the optional 2mm thick FPM gasket.
• Protection rank : IP65
• Operational temperature : - 40℃ ~ +85℃

Dimension of KCF406 series 4-20mA digital fuel level sensor

Product Models of KCF406 series 4-20mA digital fuel level sensor

Packing Details  : Standard Export Packing

Delivery Details  : 3-15 days after payment
