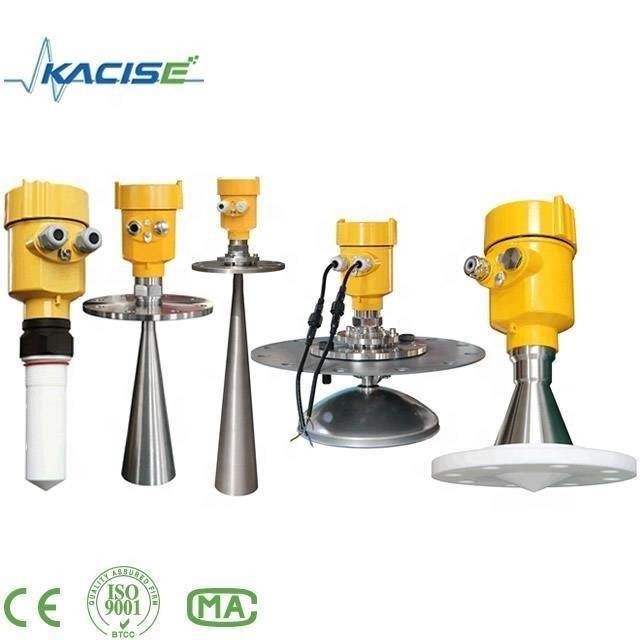

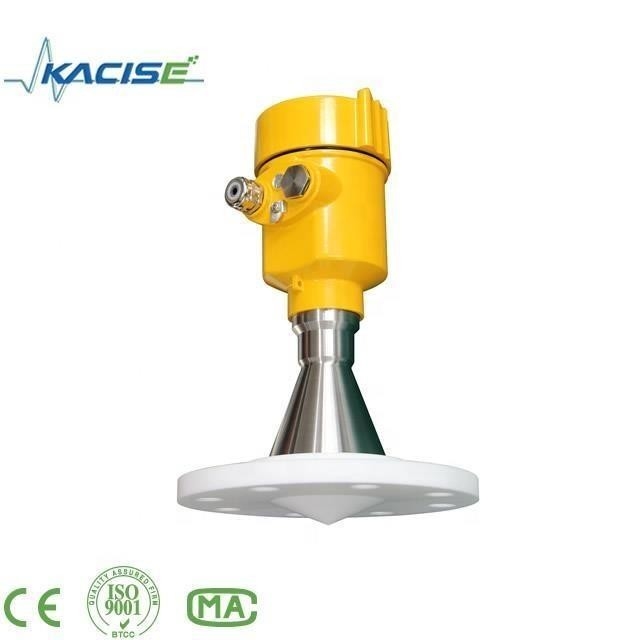

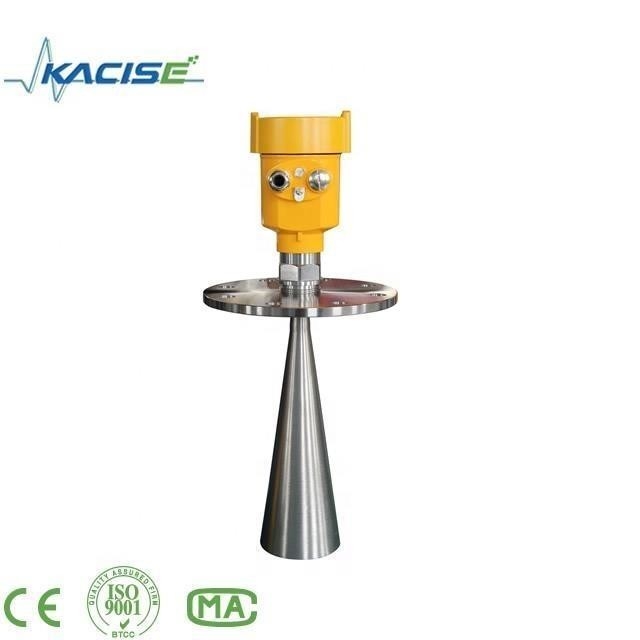

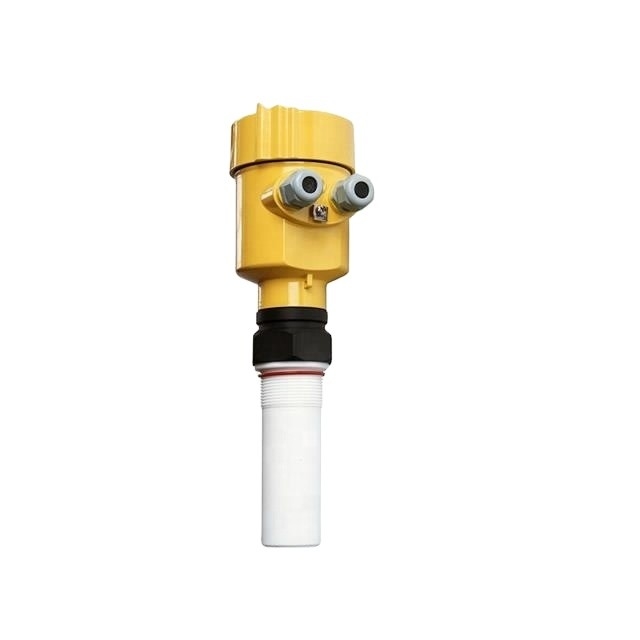

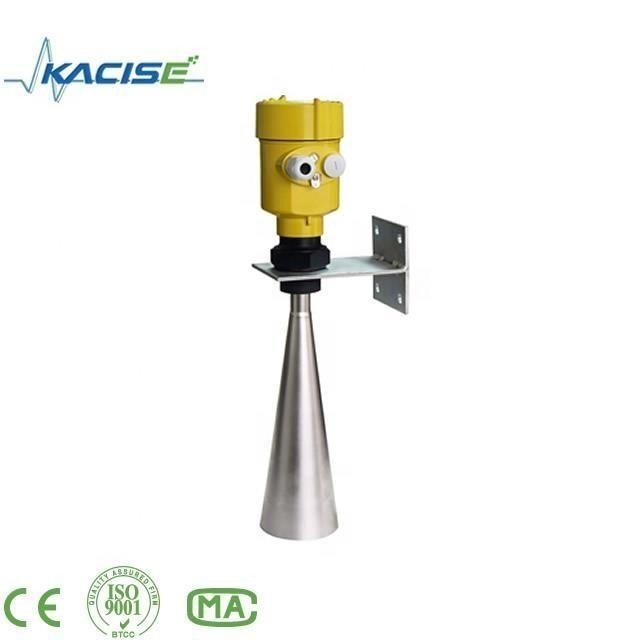

Radar Water Level Gauge

Radar Water level Gauge

Introduction

26G radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature,pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

Operation principle

Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal

Features of 26G Radar Level Sensor
 1). Antenna size is small, easy to install;
 2). Non-contact radar, no wear, no pollution.
 3). Almost free from corrosion, foam impact;
 4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
 5). Severe dust working environment has little effect on high-frequency level meter.
 6). Shorter wave length that has a better reflection on the inclined solid surface.
 7). Small beam angle, energy concentration, enhanced echo capabilities meanwhile beneficial to avoid interferences.
 8). Measuring blind zone is smaller, it will achieve good results for canister’s measuring.
 9). High signal to noise ratio, even in the case of fluctuations can obtain better performance.
10). High frequency, it is the best choice for measurement of solids and low dielectric media

Parameters
