KLD260 series 26Ghz High Frequency Radar Level Meter

Wireless Radar Type Level Transmitter

Intelligent Radar Level Transmitter

Radar Liquid Level Sensor Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Request A Quote

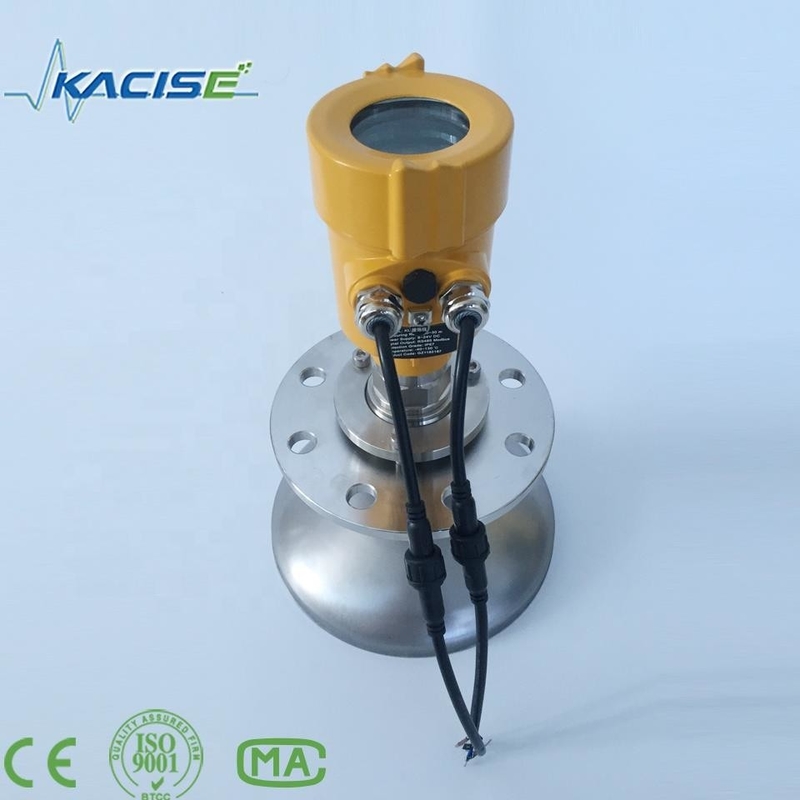

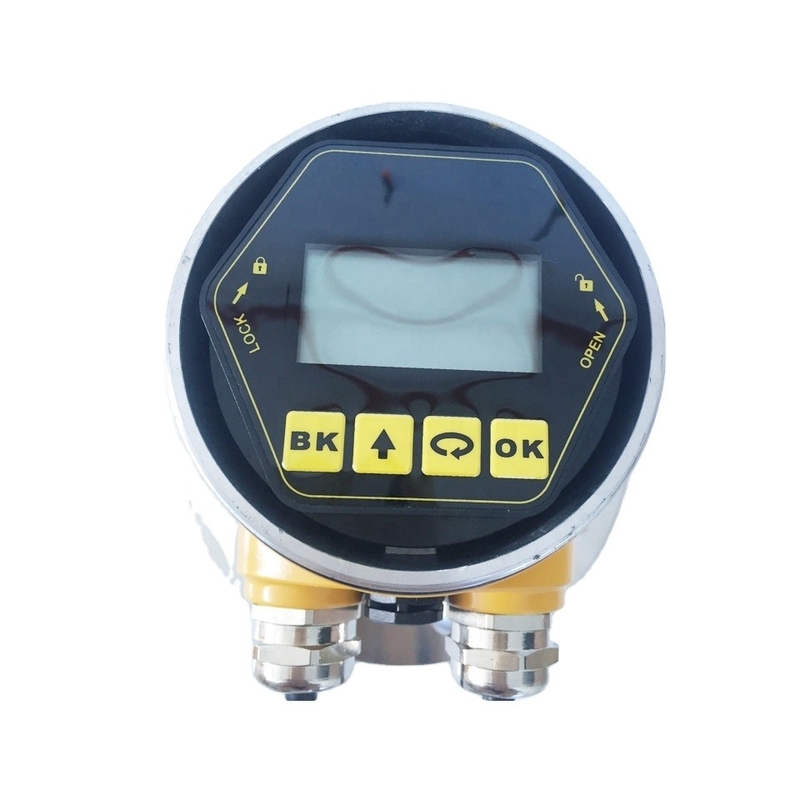

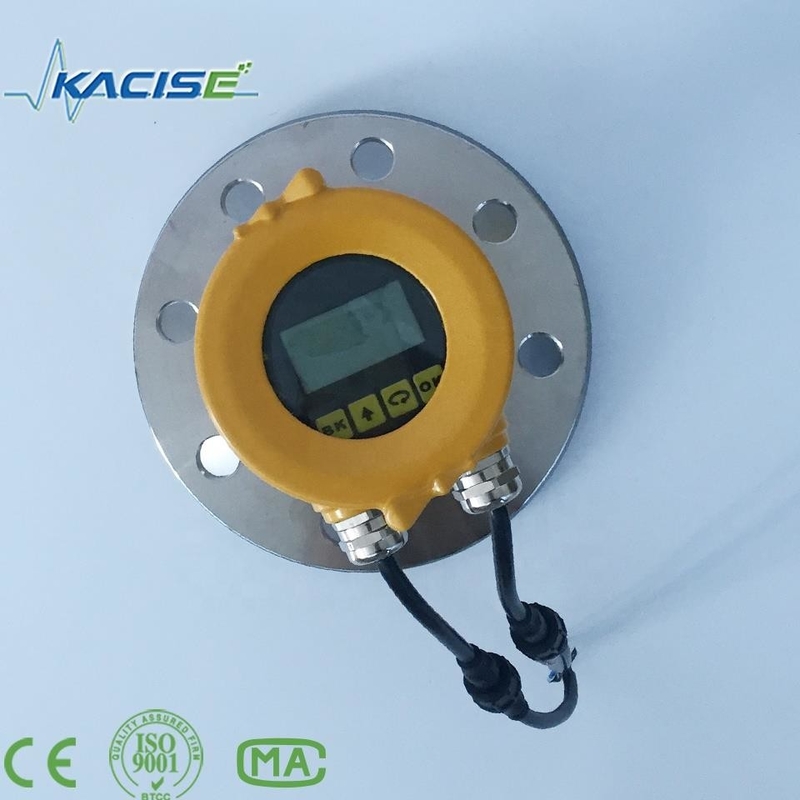

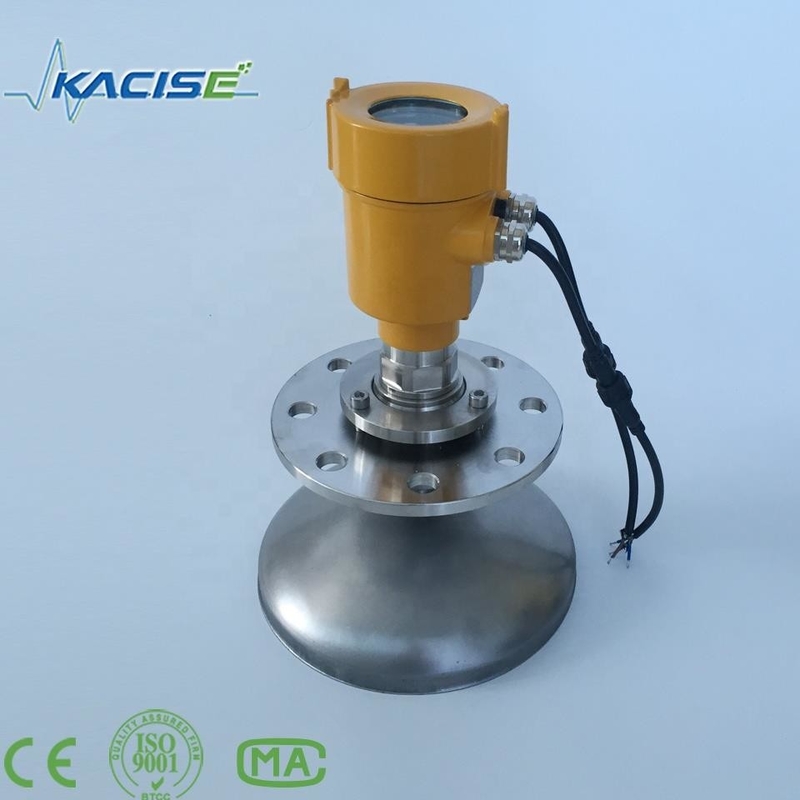

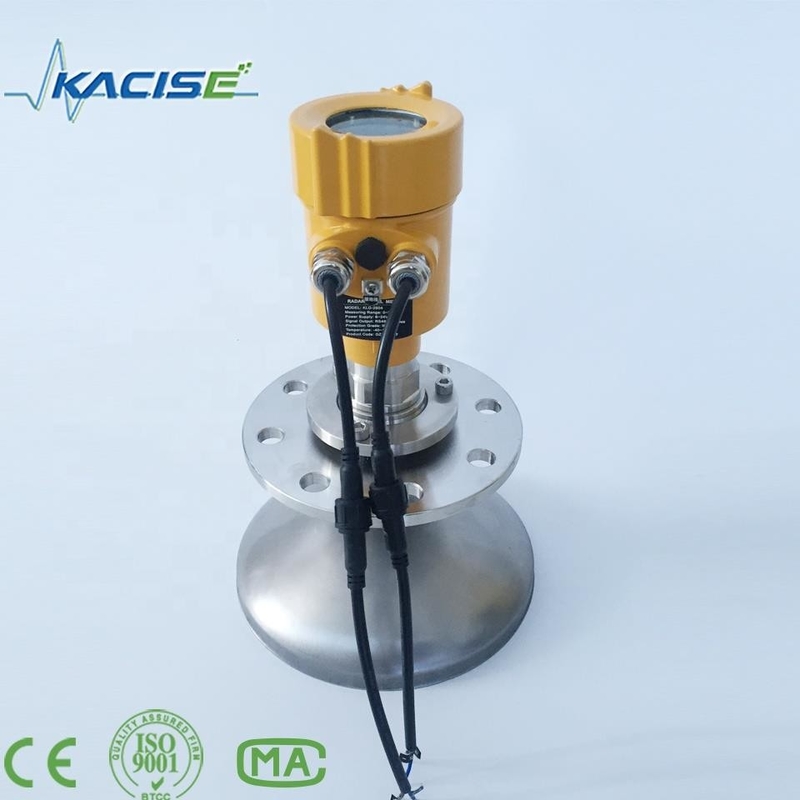

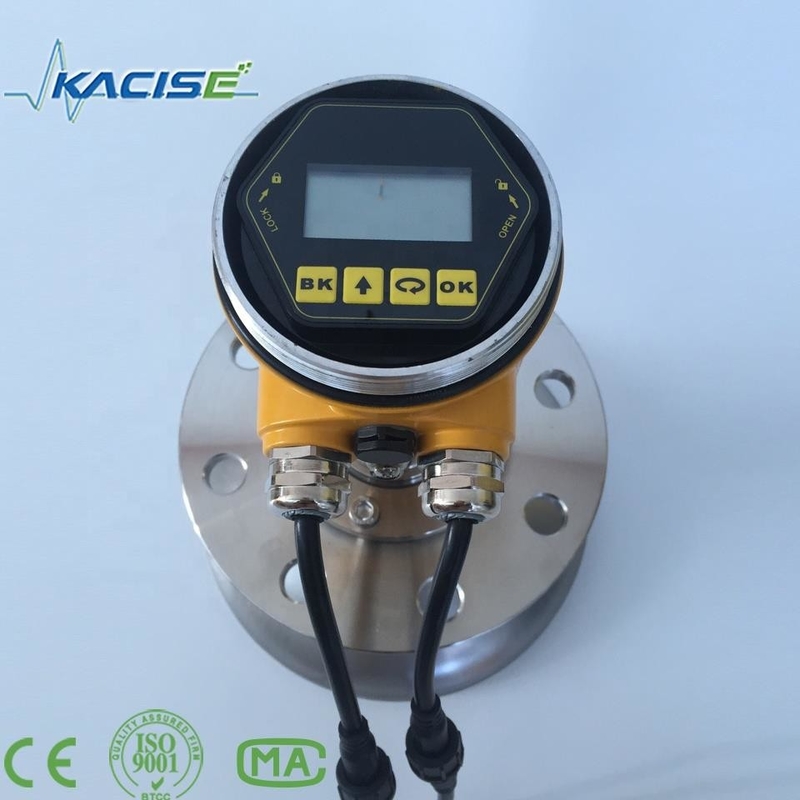

KLD260 series 26Ghz High Frequency Radar Level Meter

Product Details

Range:

80 Meters

Analog Output:

4... 20mA/HART (Two-wire / Four) RS485/ Modbus

Accuracy:

± 15mm

Application:

Solid Material, Strong Dust

Temperature:

(-40 ~ 250 ) ℃

Port:

Xi'an, Shanghai, Tianjin Or Other

Highlight:

Wireless Radar Type Level Transmitter

Intelligent Radar Level Transmitter

Radar Liquid Level Sensor Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$350.00 - $850.00/sets

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

KLD260 series 26Ghz Radar Level Meter

We also produce 6G and Guided wave radar level meter.

Introduction

KLD260 series 26Ghz Radar Level Meter is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature,pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

Operation principle

Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal

Features of 26G Radar Level Sensor
1). Antenna size is small, easy to install;
2). Non-contact radar, no wear, no pollution.
3). Almost free from corrosion, foam impact;
4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
5). Severe dust working environment has little effect on high-frequency level meter.
6). Shorter wave length that has a better reflection on the inclined solid surface.
7). Small beam angle, energy concentration, enhanced echo capabilities meanwhile beneficial to avoid interferences.
8). Measuring blind zone is smaller, it will achieve good results for canister’s measuring.
9). High signal to noise ratio, even in the case of fluctuations can obtain better performance.
10). High frequency, it is the best choice for measurement of solids and low dielectric media

Parameters

KLD260 series 26Ghz High Frequency Radar Level Meter 0

KLD260 series 26Ghz High Frequency Radar Level Meter 1

KLD260 series 26Ghz High Frequency Radar Level Meter 2

Production Flow

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services

Your inquiry will be replied in 24hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
OEM&ODM, we can help you to design and your request will be put into product.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
Discounts are offered based on order quantities.
We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

FAQ

1. Q: What information need to be provided to choose the suitable model?

A: Please provide us: application field, medium, measuring range, output signal, power supply,

temperature, installation method, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ for the KLD260 series 26Ghz Radar Level Meter?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty for the KLD260 series 26Ghz Radar Level Meter?

A: Yes, we have the warranty of 12 months.
