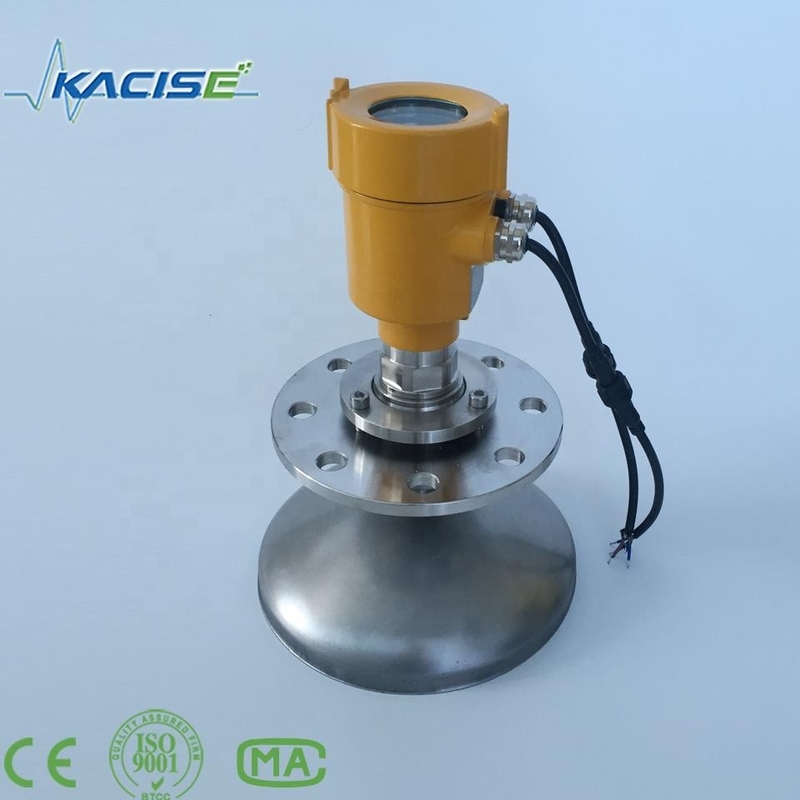

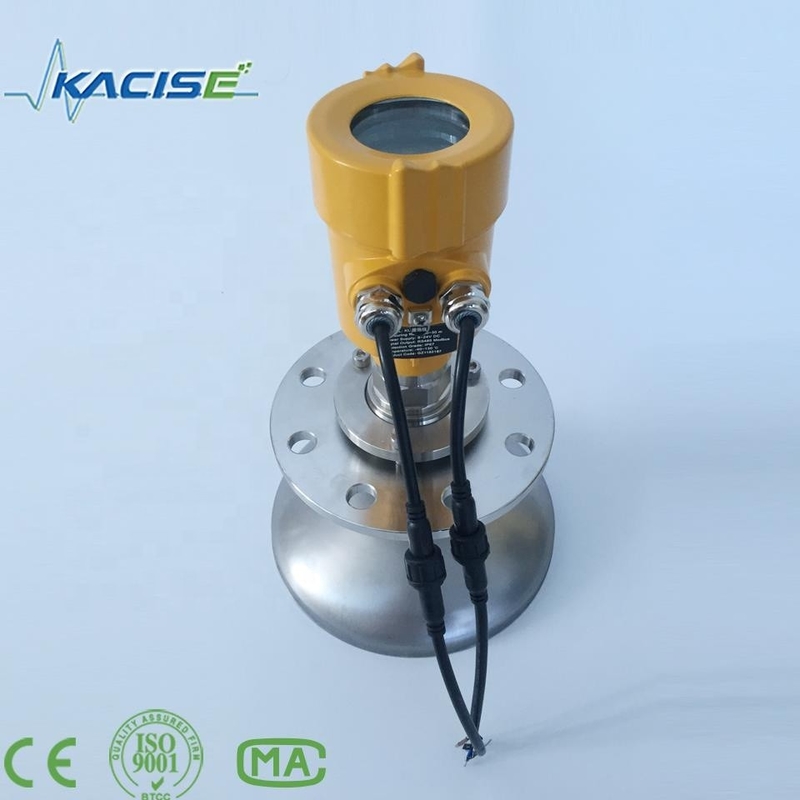

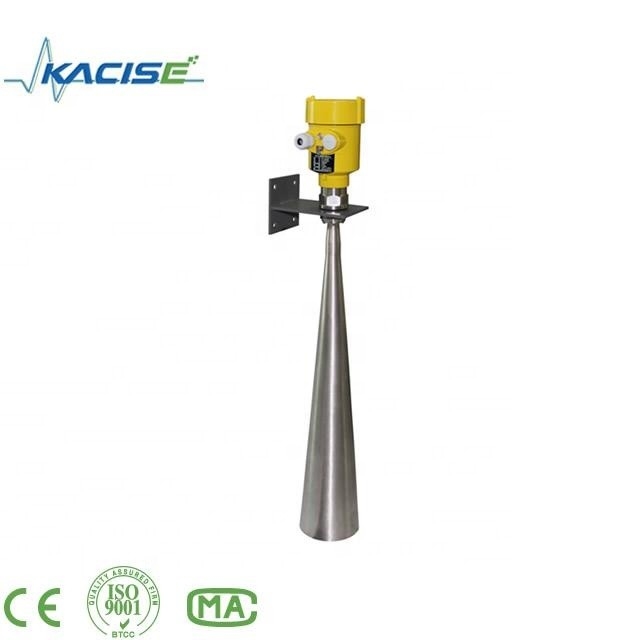

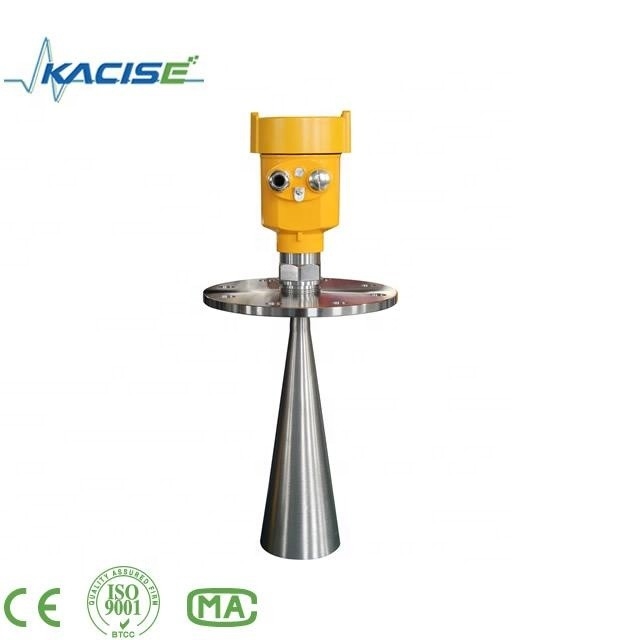

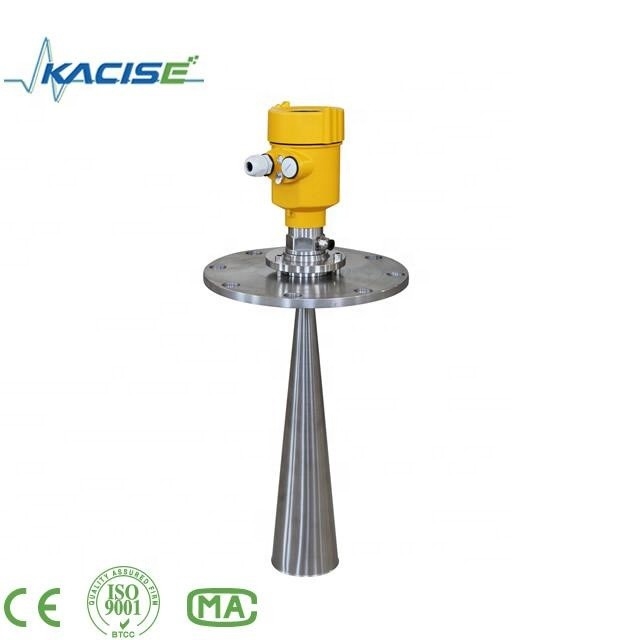

KLD260 Series 26Ghz Radar Water Level Sensor

KLD260 Series 26Ghz Radar Water Level Sensor

Wireless Radar Type Level Transmitter

Intelligent Radar Level Transmitter

Radar Liquid Level Sensor Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KLD260 series

Contact Us
Request A Quote
Product Details
Process Connection:
Thread Or Flange
Measuring Range:
10m, 20m, 30m, 70m, 80m
Signal Output:
4...20mA/HART/RS485 Modbus
Explosion-proof Grade:
Exia IIC T6 Ga/ Exd Ia IIC T6 Gb
Medium:
Corrosive Liquid/solid/powder
Temperature:
-40~400℃
Frequency Range:
26GHz
Port:
Xian Or Other
Highlight:

Wireless Radar Type Level Transmitter

,

Intelligent Radar Level Transmitter

,

Radar Liquid Level Sensor Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$420.00 - $1,100.00/pieces
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

KLD260 Series 26Ghz Radar Water Level Sensor

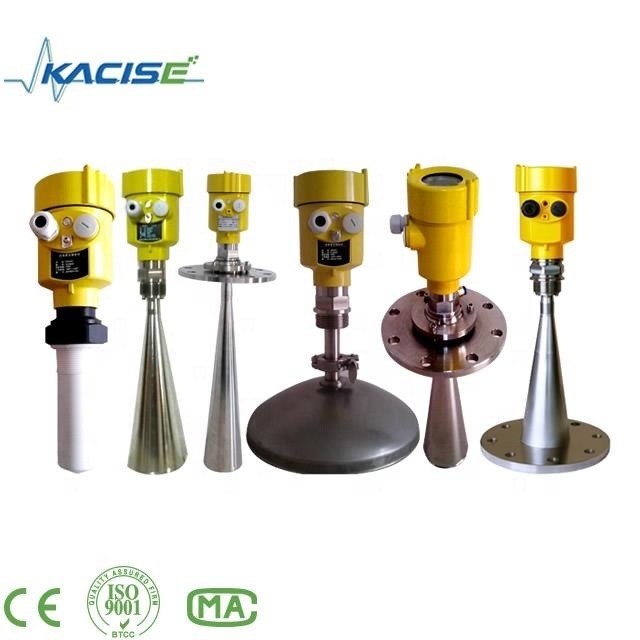

 We also produce 6G and guided wave radar level meter.

Introduction of KLD260 series guided radar water level sensor

26G radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

Operation principle of KLD260 series guided radar water level sensor

Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal

Features of KLD260 series guided radar water level sensor

1). Antenna size is small, easy to install;
 2). Non-contact radar, no wear, no pollution.
 3). Almost free from corrosion, foam impact;
 4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
 5). Severe dust working environment has little effect on high-frequency level meter.
 6). Shorter wave length that has a better reflection on the inclined solid surface.
Parameters of KLD260 series guided radar water level sensor

KLD2601

KLD260 Series 26Ghz  Radar Water Level Sensor 0





Application: All kinds of corrosive liquid
Measuring Range:10 meters
Process Connection: Thread, Flange
Medium Temperature: -40℃ ~ 130℃
Process Pressure: -0.1~0.3 MPa
Accuracy: ± 5mm
Protection Grade: IP67
Frequency Range: 26GHz
Signal Output:4~ 20mA/HART (Two-wire / Four)
RS485/ Modbus
Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb



KLD2602

KLD260 Series 26Ghz  Radar Water Level Sensor 1



KLD260 Series 26Ghz  Radar Water Level Sensor 2

KLD2603

KLD260 Series 26Ghz  Radar Water Level Sensor 3



KLD260 Series 26Ghz  Radar Water Level Sensor 4



KLD2604

KLD260 Series 26Ghz  Radar Water Level Sensor 5





KLD260 Series 26Ghz  Radar Water Level Sensor 6



KLD2605

KLD260 Series 26Ghz  Radar Water Level Sensor 7



KLD260 Series 26Ghz  Radar Water Level Sensor 8



KLD2606

KLD260 Series 26Ghz  Radar Water Level Sensor 9



Application:Hygienic liquid storage, Corrosive medium container

Measuring Range:20 meters

Process Connection:Flange

Medium Temperature:-40 ~ 130

Process Pressure:-0.1 ~ 4.0MPa

Accuracy:± 3mm

Protection Grade:IP67

Frequency Range:26GHz

Power Supply: Two-wire (DC24V) / Four-wire (DC24V/AC220V)

Signal Output:4~ 20mA/HART (Two-wire / Four)

 RS485/ Modbus

Explosion-proof Grade:Exia C T6 Ga/ Exd ia IIC T6 Gb





Production Flow

KLD260 Series 26Ghz  Radar Water Level Sensor 10

Packaging & Shipping

KLD260 Series 26Ghz  Radar Water Level Sensor 11

Cases

KLD260 Series 26Ghz  Radar Water Level Sensor 12

Certificates

KLD260 Series 26Ghz  Radar Water Level Sensor 13

Company Information

KLD260 Series 26Ghz  Radar Water Level Sensor 14



Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services



  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
  • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
FAQ

1. Q: What information need to be provided to choose the suitable model?

    A: Please provide us: application field, medium, measuring range, output signal, power supply,

         temperature, installation method, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

        OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ for the KLD260 series 26G High Frequency Radar Level Mete?

    A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.
