Name: Submersible ultrasonic liquid level gauge with 4 - 20mA output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS400
Price: 244.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

Submersible ultrasonic liquid level gauge with 4 - 20mA output

Capacitive Liquid Level Sensor

Electronic Capacitive Level Sensor

Capacitive Water Level Meter 20mA

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

GXPS400

Document:

GXPS400 datasheet_v2.5.pdf

Request A Quote

Submersible ultrasonic liquid level gauge with 4 - 20mA output

Product Details

Usage:

Level Sensor

Theory:

Resistance Sensor

Output:

Analog SENSOR

Pressure Range:

0~1...500mH2O

Port:

Shanghai Or Other

Highlight:

Capacitive Liquid Level Sensor

Electronic Capacitive Level Sensor

Capacitive Water Level Meter 20mA

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$99.00 - $390.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

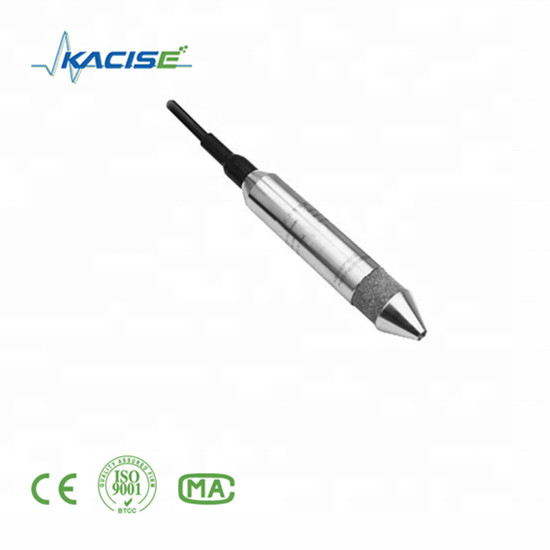

Submersible ultrasonic liquid level gauge with 4 - 20mA output

Specifications

Specification of GXPS400 serial 4-20ma liquid water level sensor :

Spec.	Numerical value			Remark
Pressure range	0~1……500mH2O			1mH2O≈9.81kPa
Overload pressure	1.5times Rated pressure
fracture pressure	3 times rated pressure
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40 °C ~125 °C
compensation temperature	-10°C~70°C
medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
electrical properties	2 line	3 line
Output signal	4~20mA	0~5V	0~10V
Power supplies	10~30Vdc	80~30Vdc/ac	11~30Vdc/ac	Vdc/ac
load resistance	(U-10)/0.02( Omega )	more than 100k Omega
insulation	more than 100M Omega @50V
Electrical Connections	waterproof fixed cable + Two rectangle circle+Sealing Rings+seal gum+ Pure glue protection grade : IP68
pressure interface	G1/4,input type
response time	10ms
Electric strength	500Vac@1 second
Graduate Certificate Programs	certificate of explosion-proof, CE
electromagnetic compatibility	electromagnetic radiation EN50081-1/-2, electromagnetic susceptibilty: EN50082-2
lightning protection	air conduction resistance 8000V,case, cable conduction
