Price: | $300.00 - $800.00/pieces |
---|---|
Packaging Details: | Each unit has individual box, and all boxes are packed into big carton. |
Supply Ability: | 2000 Piece/Pieces per Month |
Name: | Radar Level Meter | Measuring Range: | 20m |
---|---|---|---|
Frequency Range: | 26GHz | Signal Output: | 4...20mA/HART, RS485/Modbus |
Process Pressure: | -0.1~4MPa | Explosion-proof Grade: | Exia IIC T6 Ga/Exd Ia IIC T6 Gb |
Protection: | IP67 | Port: | Shanghai Or Other |
High Light: | 20m Radar Level Transmitter,26GHz HART Radar Level Meter,Corrosive Medium Radar Level Transmitter |

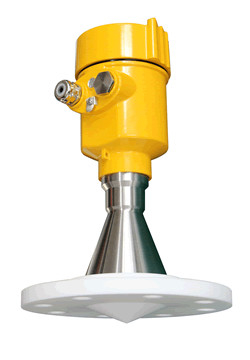

KLD-2606 4-20mA 26GHz Radar Level Meter Corrosive Medium Container Level Meter
1. General Introduction:
This series of radar level meter adopts 26G high frequency radar sensor. The maximum measurement range can be up to 80 meters. The newly developped microprocessor achieves much faster signal analysis and process, making sure that the unit can be used for the measurement of complicated environment such as reactor and solid silo.
2. Working Principle:
The radar antenna transmites narrow microwave pulse which will be reflected back when reaching the surface of the medium tested and then received again by the antenna system. The signals shall be transmitted to the electric circuit and then converted into level signals. As the transmission speed of microwave is so fast, the time used for the microwave transmission to the surface of the medium tested and then reflected back is almost 0.
3. Technical Features:
4. Technical Specifications:
Application |
Hygienic liquid storage, Corrosive medium container |
Measuring Range |
20m |
Process Connection |
Flange |
Medium Temperature |
-40℃ ~ 130℃ |
Process Pressure |
-0.1 ~ 4.0MPa |
Accuracy |
± 3mm |
Protection Grade |
IP67 |
Frequency Range |
26GHz |
Signal Output |
4... 20mA/HART (Two-wire / Four) RS485/ Modbus |
Explosion-proof Grade |
Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb |
All our products are produced by experienced workers, and tested at least 3 times before shipping out to make sure the quality.
Each unit has individual box and the boxes are packed into one big carton, upmostely making sure that the goods are still in nice conditions when arriving at our esteemed customers.
