Name: KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD60 series
Price: 400.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel

6G Radar Level Meter

Intelligent Radar Level Meter

Gasoline Radar Level Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLD60 series

Request A Quote

Product Details

Measuring Range:

15m, 20m, 35m

Power Supply:

Two-wire (DC24V), Four-wire(DC24V/AC220V)

Output Signal:

4-20mA / HART

Temperature:

(-40 ~ 400) ℃

Item:

KLD60 Series 6G Intelligent Radar Level Meter

Liquid Medium:

Water, Sea Water, Sewage, Chemical Liquids, Bases, Oil,

Sanitary/food-grade Liquid:

Milk, Beer, Juice, Alcohol, Red Wine, White Wine, Iodine.

Oil Liquid:

Gasoline, Diesel, Fuel, Palm Oil, Soybean Oil, Peanut Oil

Solid Medium:

Powder, Granule , Corn, Beans, Bran, Wheat Husk, Coal Ash, Coal.

Port:

Shanghai Or Other

Highlight:

6G Radar Level Meter

Intelligent Radar Level Meter

Gasoline Radar Level Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$300.00 - $500.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

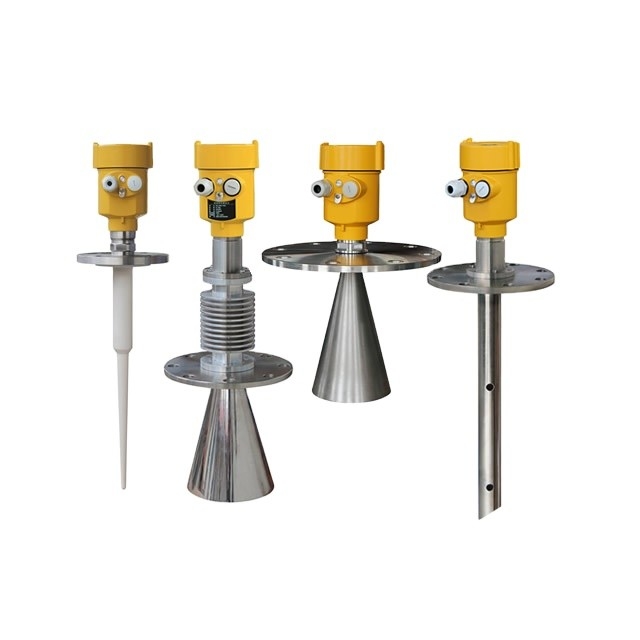

KLD60 series 6G Intelligent Radar Level Meter

We also produce 26G High Frequency and Guided wave radar level meter.

Introduction

6G radar level gauge is suitable for liquid, paste, granule and block material leve and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

Operation principle

The product uses intelligent self-tuning echo tracking technology of non-contact measurement, the use of micro-fit waveguide technology design and ultra-wideband echo trace capture / emission energy regulation and control technology to solve the measurement and pulse conditioning stability. Al Pease antenna design uses a total gain of 23dB, half-power beamwidth of about 8.5o.

Feature of 6G Radar Level Sensor

1) non-contact measurement

2) high-precision, high stability, high reliability

3) long life

4) compact structure, environmental adaptability

5) does not need periodic re-calibration and maintenance

6) easy to install

Parameters

KLD601

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 0

Suitable for Medium: Liquid, slightly corrosive liquid

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 20m

Aerials: The Rod Antenna (PP/PTFE)

Frequency: 6GHz

Temperature: (-40 ~ 130) ℃

Measurement Precision: ±10mm

Process Pressure: (-0.1 ~ 0.3) MPa

The signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional) / Thread

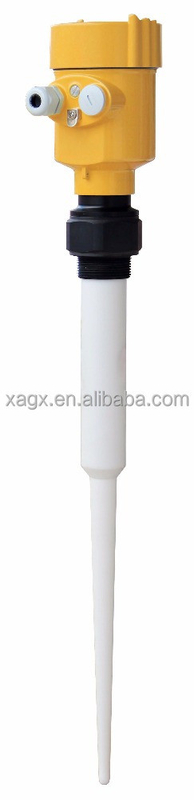

KLD602

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 1

Suitable for Medium: Liquid, especially for corrosive liquid

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 20m

Aerials: The Rod Antenna (PTFE)

Frequency: 6GHz

Temperature: (-40 ~ 180) ℃

Measurement Precision: ± 10mm

Process Pressure: (-0.1 ~ 4) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional)

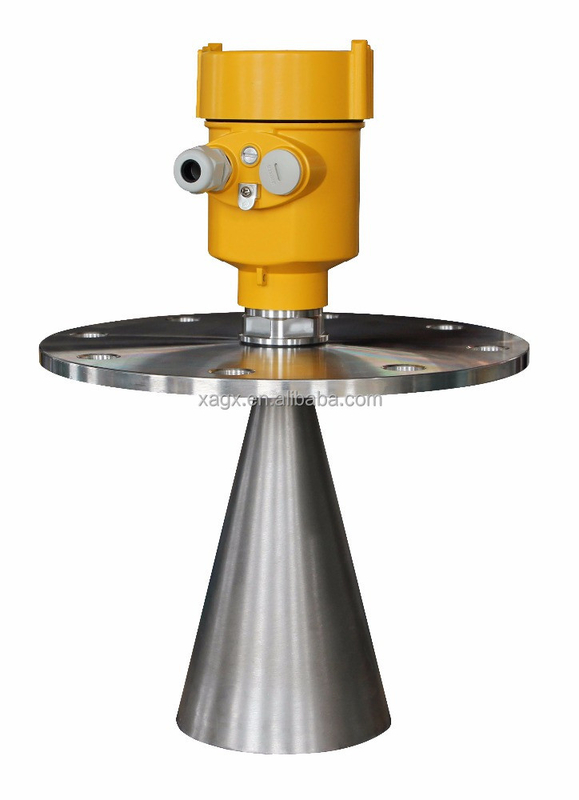

KLD603

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 2

Suitable for Medium: Liquid, especially with pressure and Volatile Liquid

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring range: 35m

Aerials: The Horn Antenna

Frequency: 6GHz

Temperature: (-40 ~ 250) ℃

Measurement Precision: ± 10mm

Process Pressure: (-0.1 ~ 4) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional)

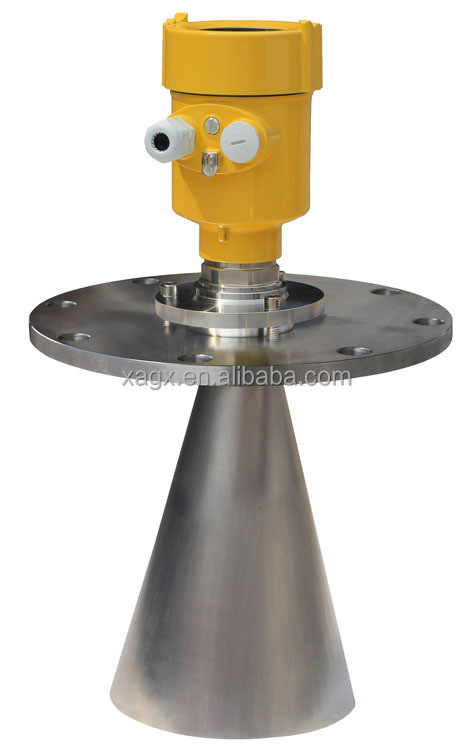

KLD604

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 3

Suitable for Medium:Solid particles or block material, And it is not suitable for solid powder

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 35m

Aerials: The Horn Antenna

Frequency: 6G Hz

Temperature: (-40 ~ 250) ℃

Measurement Precision: ± 20mm

Process Pressure: (-0.1 ~ 0.1) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Cardan Flange (optional)

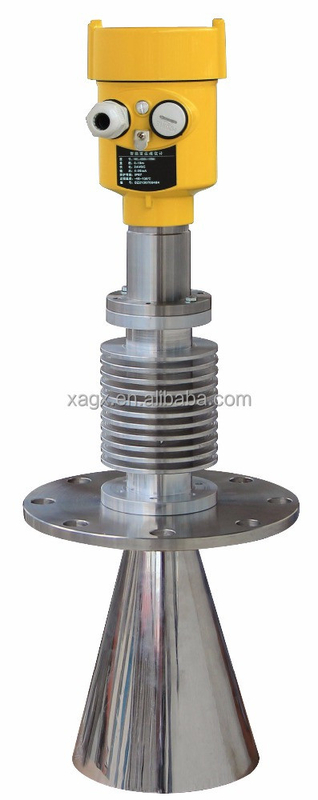

KLD605

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 4

Suitable for Medium: Liquid, especially suitable for low dielectric constant, sticky, with mixing liquid.

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 20m

Aerials: The Horn Antenna

Frequency: 6GHz

Temperature: (-40 ~ 400) ℃

Measurement Precision: ±10mm

Process Pressure: (-0.1 ~ 4) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional)

KLD606

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 5

Suitable for Medium: Solid, especially suitable for high temperature conditions

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 15m

Aerials: The Horn Antenna

Frequency: 6GHz

Temperature: (-40 ~ 400) ℃

Measurement Precision: ± 20mm

Process Pressure: (-0.1 ~ 0.1) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional)

Production Flow

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 6

Packaging & Shipping

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 7

Cases

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 8

Certificates

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 9

Company Information

KLD60 Series 6G Intelligent Radar Level Meter For Gasoline Diesel Fuel 10

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services

Your inquiry will be replied in 24hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
OEM&ODM, we can help you to design and your request will be put into product.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
Discounts are offered based on order quantities.
We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

FAQ

1. Q: What information need to be provided to choose the suitable model?

A: Please provide us: application field, medium, measuring range, output signal, power supply,

temperature, installation method, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ for the KLD60 series 6G Intelligent Radar Level Meter?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty for the KLD60 series 6G Intelligent Radar Level Meter?

A: Yes, we have the warranty of 12 months.
