| Place of Origin: | Shaanxi, China |
| Brand Name: | GX support OEM |
| Model Number: | GXPS series |
| Price: | $59.00 - $260.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week |
| Pressure Range: | -0.1MPa~1kPa......800MPa(customizable) | Accuracy: | ±0.1%, ±0.25%, ±0.5%, ±1.0%F.S |
|---|---|---|---|
| Stability: | Typical Value: 0.1%F.S Max.: 0.2% F.S | Operating Temperature: | -40°C~85°C |
| Pressure Interface: | M20*1.5,G1/4,G1/2,R1/2,NPT1/2 | Presssure Type: | Gauge Pressure, Seal Gauge |
| Certificate: | Certificate Of Explosion-proof, CE | Power Supplies: | 10~30Vdc,8~30Vdc, 5V(ratio) |
| Type: | 0-10v Pressure Transmitter | Delivery Time: | ASAP After Payment |
| Port: | Shanghai Or Other |

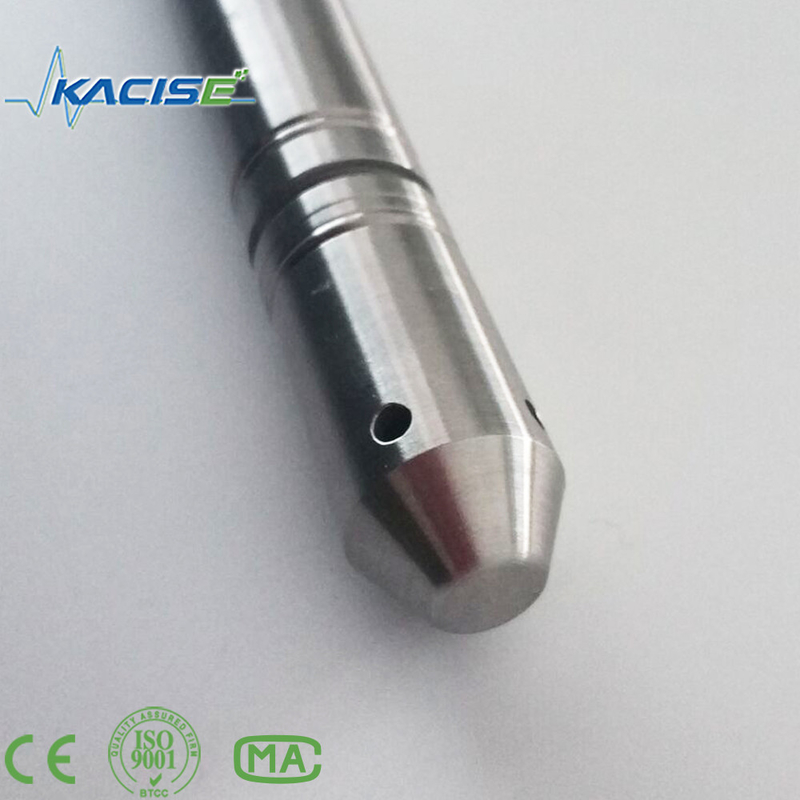

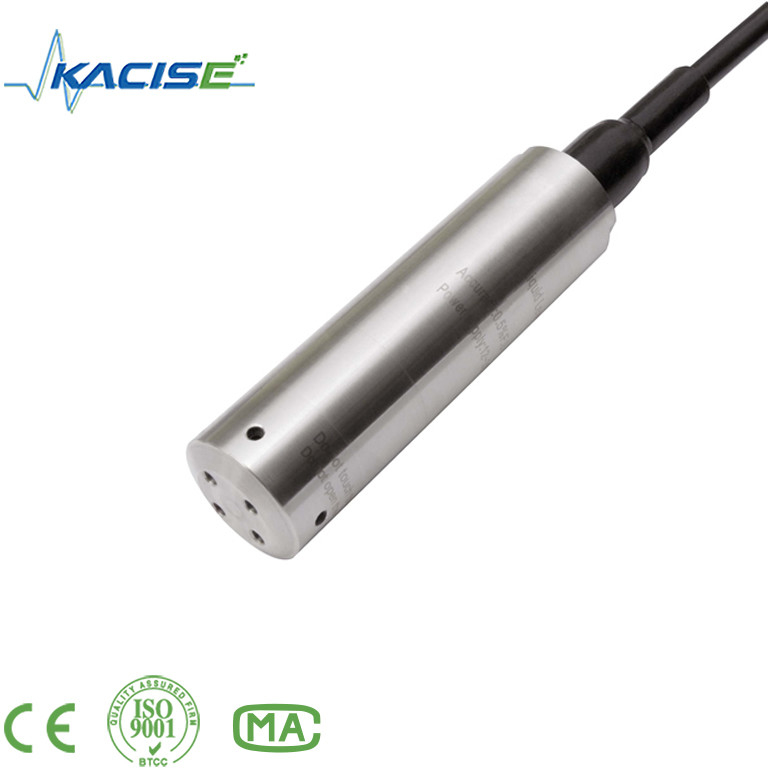

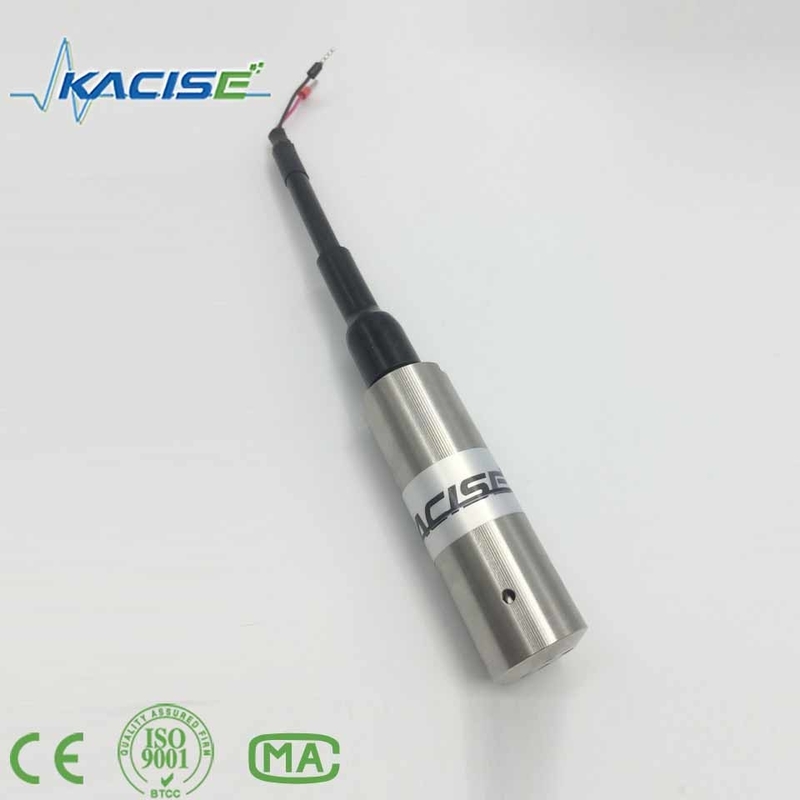

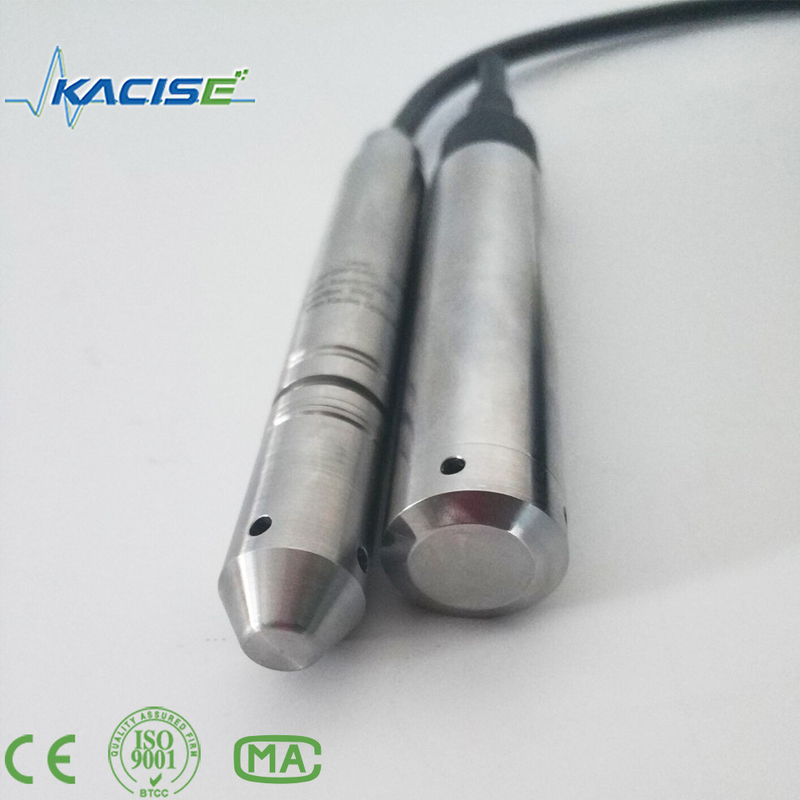

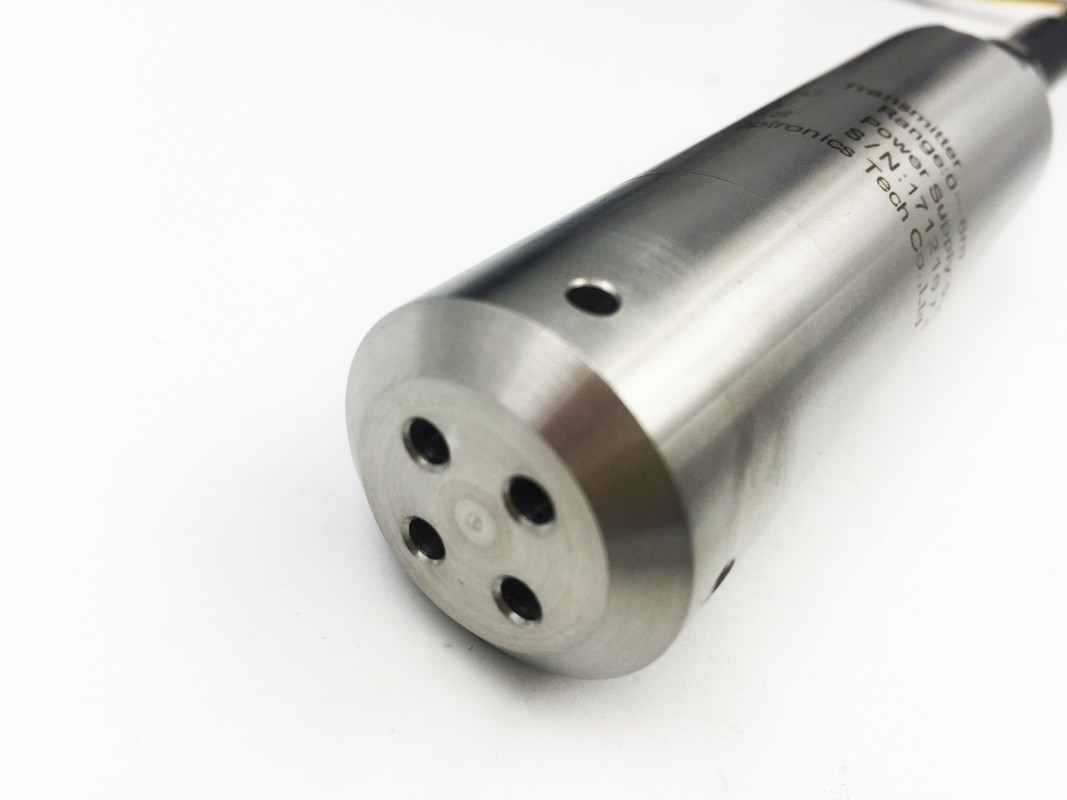

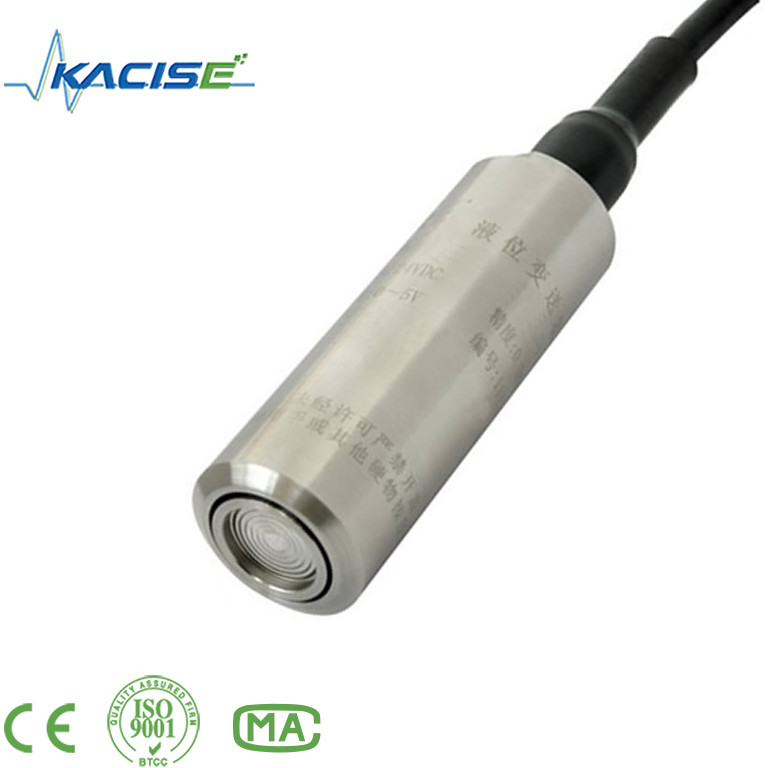

Variable range high stability and quality 0-10v level pressure transmitter
Feature
Accuracy ±0.1%F.S ±0.25%F.S ±0.5%F.S ±1.0%F.S
Various measuring range and signal output
High stability and high quality
Introduction
The GXPS pressure transmitter has the characteristics of high reliability, high stability, high accuracy. It contains a wide kind of transmitters which can meet different demands and applications. Widely used in gas, liquid pressure detection, such as water,oil,mildly corrosive,corrosive gas and liquid pressure
Parameter
Spec. | Value | |
Pressure range | -0.1MPa~1kPa......800MPa (customizable) | |
Temperature range | -40°C~85°C (customizable) | |
Load pressure | 2 times nominal value pressure (2X) | |
Rupture pressure | 4 times nominal value pressure (4X) | |
Accuracy | ±0.1%, ±0.25%, ±0.5%, ±1.0%F.S (customizable) | |
Stability | Typical value 0.25% F.S, Max. value: 0.4%F.S | |
Operating temperature | -40°C~85°C (customizable) | |
Compensation temperature | -10°C~70°C (customizable) | |
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |
Output signal | 0~10 V, 4~20mA, 0~5V, RS232, RS485,USB and so on (customizable) | |
Power supply | 5VDC,24VDV,6~24VDC,12~30VDC, 9VDC battery, 3.6VDC battery and so on (customizable) | |
Insulation | >100M Ω@50V | |
Electrical connection | Waterproof fixed cable, Hirschmann, Air plug and so on (customizable) protection grade : IP65, IP67, IP68 | |
Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 (customizable) | |
Pressure type | Gage, Seal, Absolute | Response time: 10ms |
Certificate | Intrinsically safe , CE, explosion suppression | |
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |
Package
In order to choose the suitable products for you, please send us below information with the feedback.
1. pressure range
2. accuracy
3. output signal
4. power supply voltage
5. pressure port
6. elec. connection
7. medium
8. temperature range
