Name: Diesel pressure sensor with operating temperature -40°C~400°C
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS series
Price: 137.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

Diesel pressure sensor with operating temperature -40°C~400°C

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

GXPS series

Request A Quote

Diesel pressure sensor with operating temperature -40°C~400°C

Product Details

Pressure Range:

-0.1MPa~1kPa......1000MPa(customizable)

Accuracy:

±0.1%, ±0.25%, ±0.5%, ±1.0%F.S

Operating Temperature:

-40°C~400°C

Presssure Type:

Gauge Pressure, Seal Pressure, Absolute Pressure

Certificate:

Certificate Of Explosion-proof, CE

Item:

Pressure Sensor

Medium:

Water, Oil, Gas, Corrosive Liquid

OEM:

Available

Port:

Shanghai Or Other

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$45.00 - $230.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

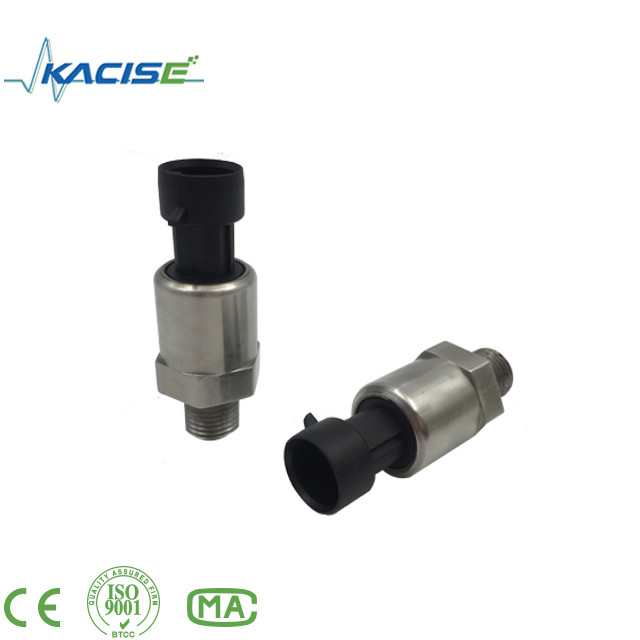

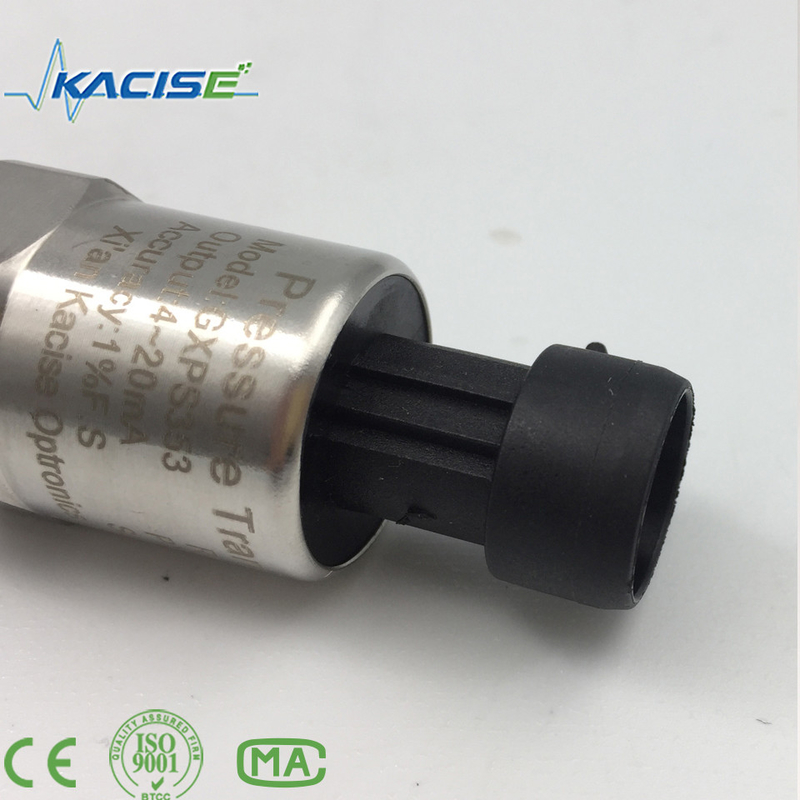

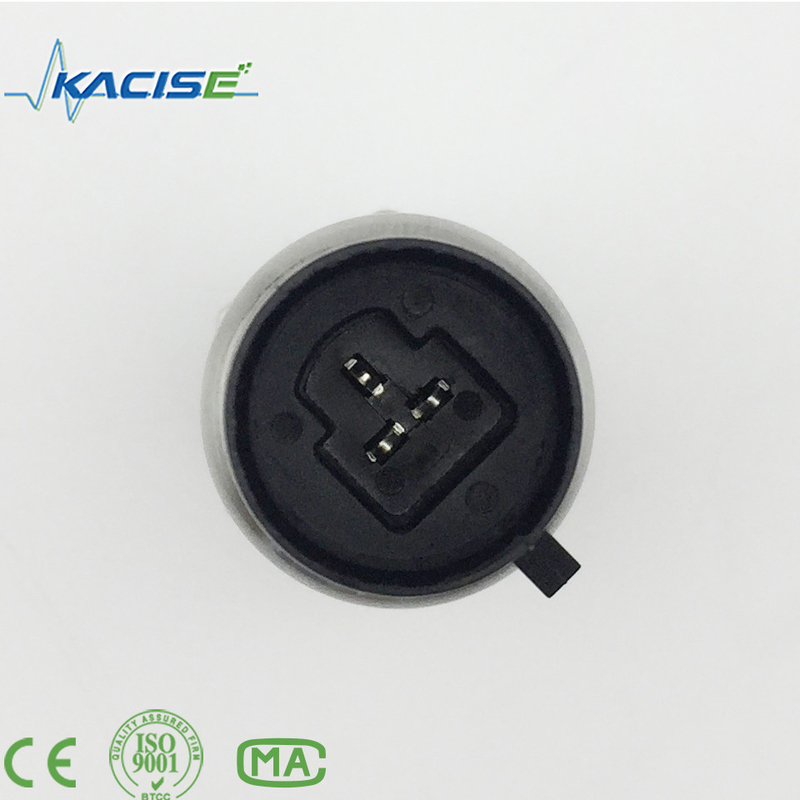

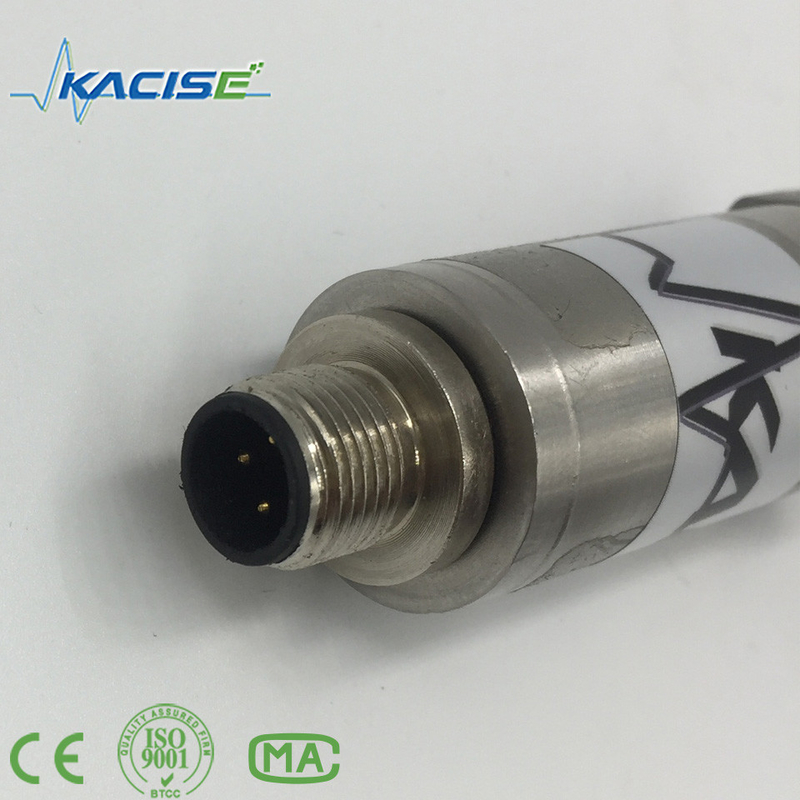

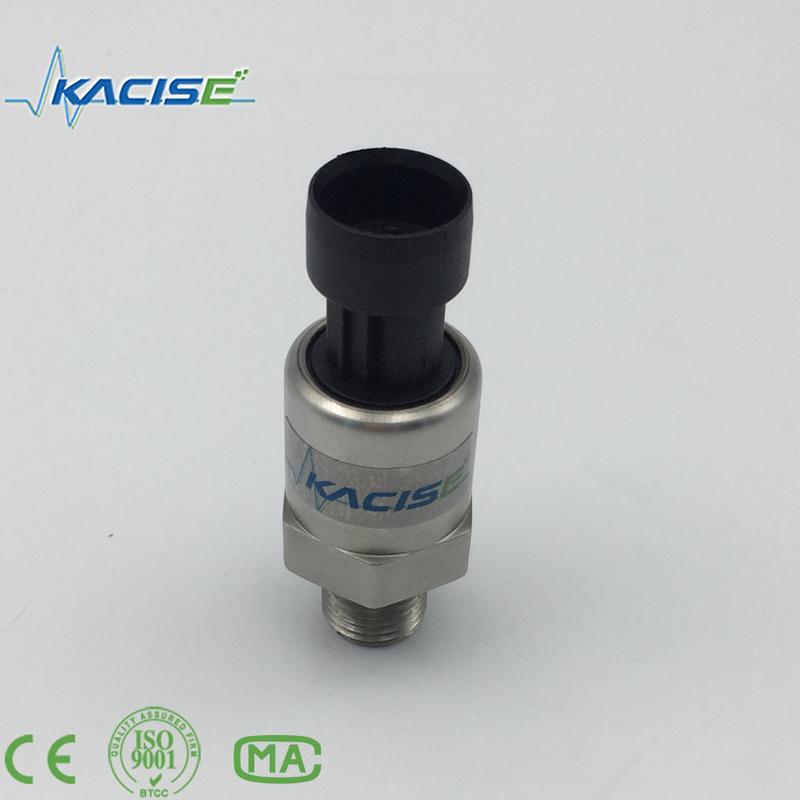

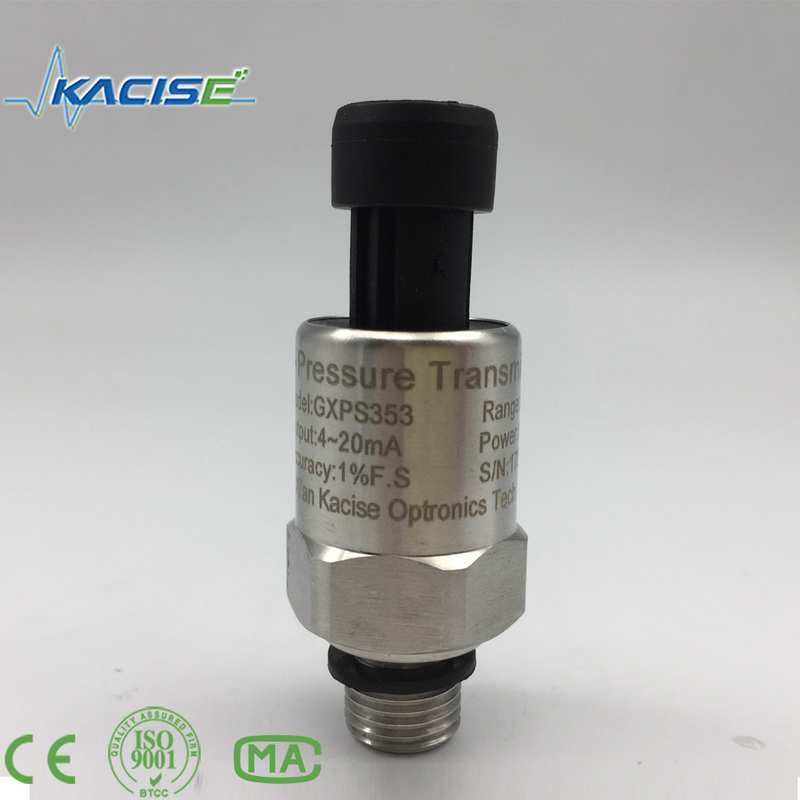

Diesel pressure sensor

Feature

Accuracy ±0.1%F.S ±0.25%F.S ±0.5%F.S ±1.0%F.S

Various measuring range and signal output

With silicon or ceramic piezo-resistive core

CE, explosion-proof

Introduction

The GXPS pressure sensor has the characteristics of high reliability, high stability, high accuracy. It contains a wide kind of sensors which can meet different demands and applications. Widely used in gas, liquid pressure detection, such as water,oil,mildly corrosive,corrosive gas and liquid pressure. Besides, our engineers team can customize various of products accordding to your requirements.

Parameter

Spec.	Value
Pressure range	-0.1MPa~1kPa......800MPa (customizable)
Temperature range	-40°C~400°C (customizable)
Load pressure	2 times nominal value pressure (2X)
Rupture pressure	4 times nominal value pressure (4X)
Accuracy	±0.1%, ±0.25%, ±0.5%, ±1.0%F.S (customizable)
Stability	Typical value 0.25% F.S, Max. value: 0.4%F.S
Operating temperature	-40°C~400°C (customizable)
Compensation temperature	-40°C~120°C (customizable)
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Output signal	4~20mA, 0~5V,0~10 V, 1~5V,1~10V, RS232, RS485,USB and so on (customizable)
Power supply	5VDC,24VDV,6~24VDC,12~30VDC, 9VDC battery, 3.6VDC battery and so on (customizable)
Insulation	>100M Ω@50V
Electrical connection	Waterproof fixed cable, Hirschmann, Air plug and so on (customizable) protection grade : IP65, IP67, IP68
Pressure port	M20×1.5, G1/4, G1/2, R1/2, NPT1/2 (customizable)
Pressure type	Gage, Seal, Absolute	Response time: 10ms
Certificate	Intrinsically safe , CE, explosion suppression
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2

Package

Some of our products

Company Information

Diesel pressure sensor with operating temperature -40°C~400°C 11

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
