Name: Manufacturer Supply High Precision digital pressure manometer made in china
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXDPG
Price: 25.50 USD
Availability: InStock

Home > products > Fluid Level Meter >

Manufacturer Supply High Precision digital pressure manometer made in china

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

GXDPG

Request A Quote

Manufacturer Supply High Precision digital pressure manometer made in china

Product Details

Pressure Range:

-0.1...0~0.01...~100MPa

Feature:

Digital Manometer China

Accuracy Class:

0.2%

Model:

Digital Manometer China

Medium:

High Viscosity, Strong Corrosion

Supply Voltage:

24VDC Or 220VAC

Name:

Manufacturer Supply High Precision Digital Manometer Made In China

Delivery Time:

Asap. After Payment

Port:

Shanghai Or Other

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$2.50 - $50.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

Manufacturer Supply High Precision digital pressure manometer made in China

GXDPG digital pressure manometer gauge measuring, display, control & transmit together. Can be easy installed to measuring pressure at the scene .It can set the zero output, span output, pressure of contact point and control pressure with key at scene.

Feature
1. Wide range, full stainless steel.
2. Various pressure point.
3. Diameter 100mm profile.
4. High light LED display.
5. Two supply power mode 24VDC or 220VAC.
6. Marking: ExiaIICT6
7. Can provide Max. 3 way control contact point,
8. Value of contact point and status of contact point can be set freely

Application

1. Compatible with 316LSS, noncorrosive liquids.
2. Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control

Specification

Measurement Range	-0.1...0~0.01...~100MPa
Proof pressure	≤1.5X rated pressure
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%(typical) ±0.5%(Max.)
Long stability	±0.3%F.S/year
Temperature Error- Zero	±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa)
Temperature Error -Span	±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa)
Operating Temperature Range	-20°C~80°C
Storage Temperature	-40°C~120°C
Power supply	24VDC or 220VAC
Output signal	Analog :4~20mA
Pressure port	M20×1.5 , G1/2 or customize
Relay control	1~3 way relay AC220V/3A
Life of contact point	More than 100000 times
Display	-1999~9999
Housing material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O ring	Fluor or ubber
Cable	Polyethylene
Insulation resistance	100MΩ 100VDC
Protection	IP65

Dimension

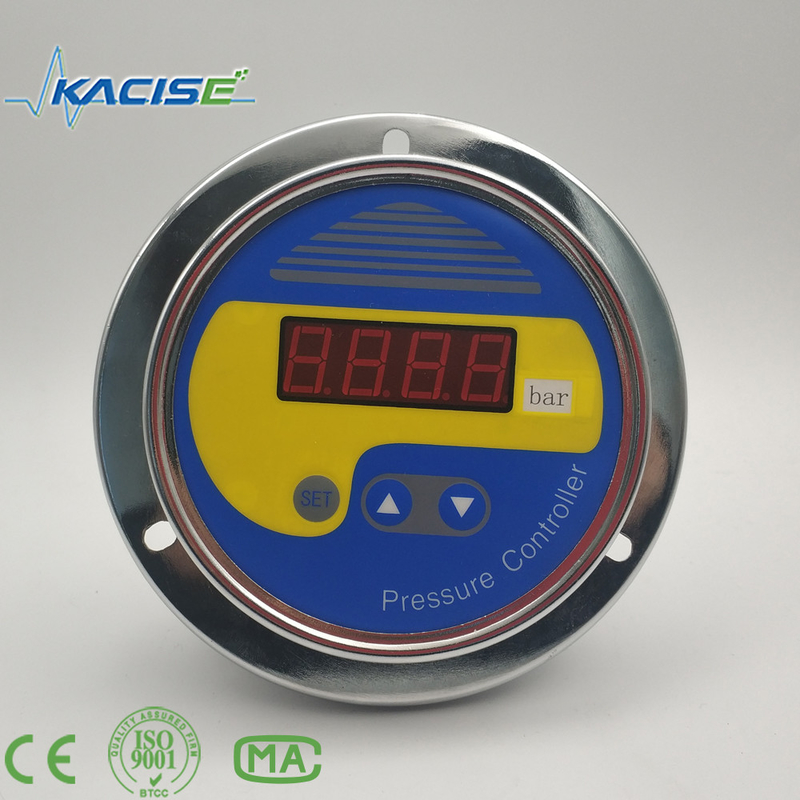

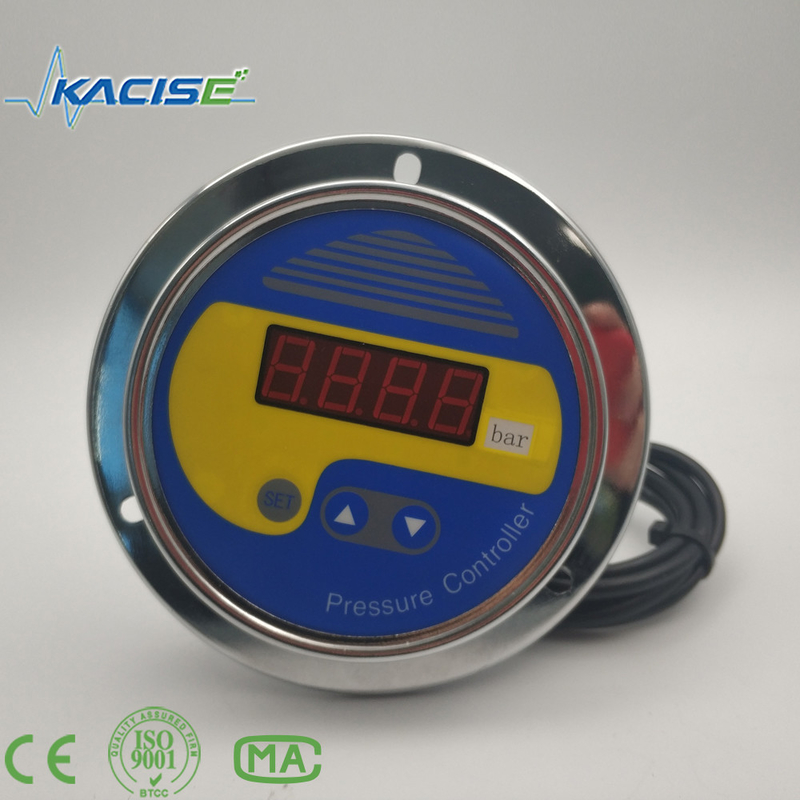

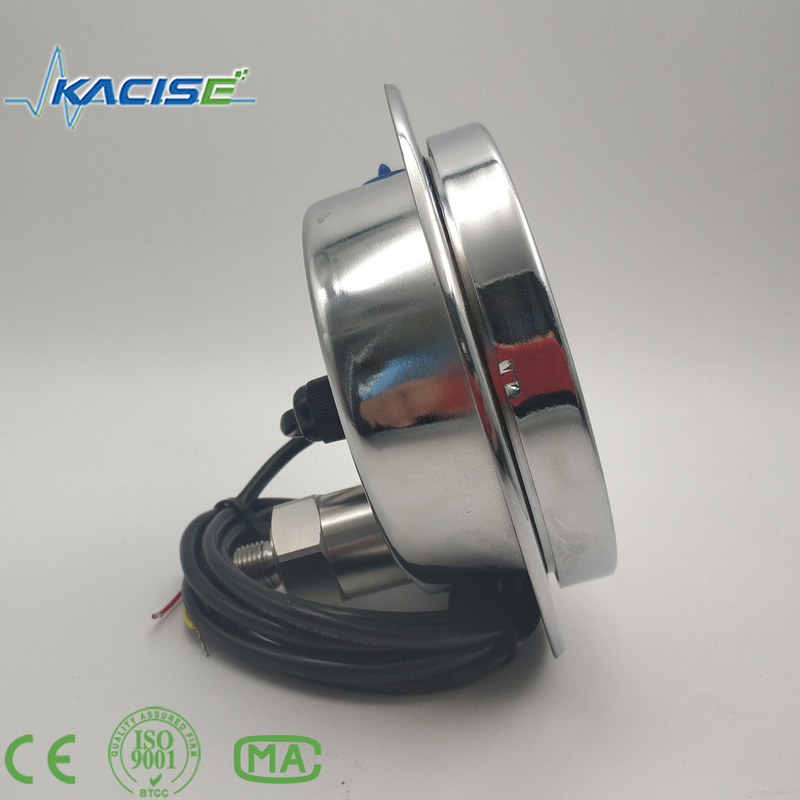

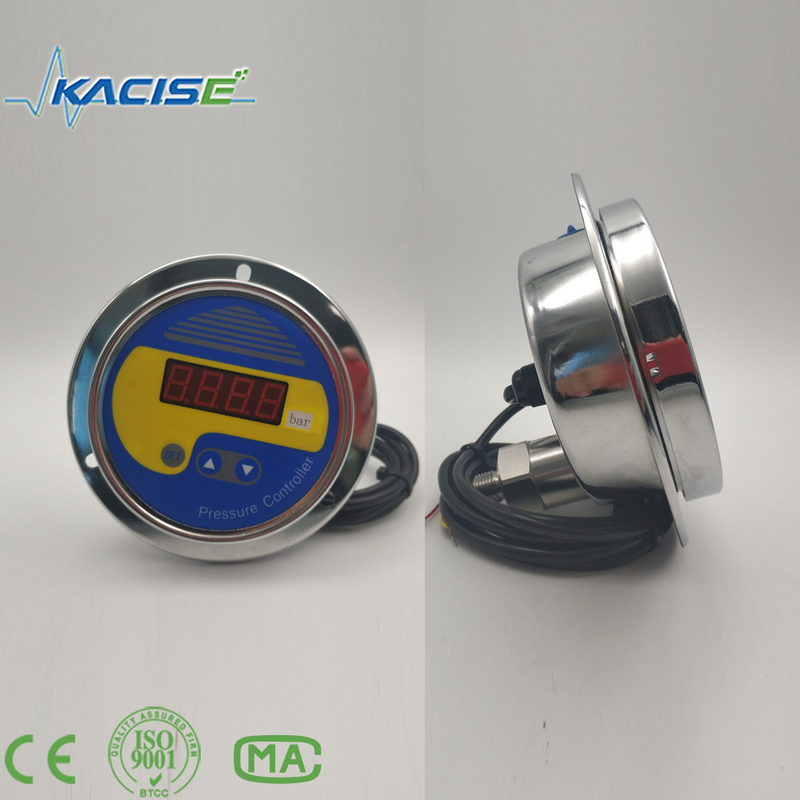

Product picture

Packaging & Shipping

Our Services

NO.1 One piece sample is available.
NO.2 Supplier Assessment--onsite Check
NO.3 100% real photos--Detailed images, detailed description
NO.4 7*24 hours online--Efficient service, Professional answers
NO.5 After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
