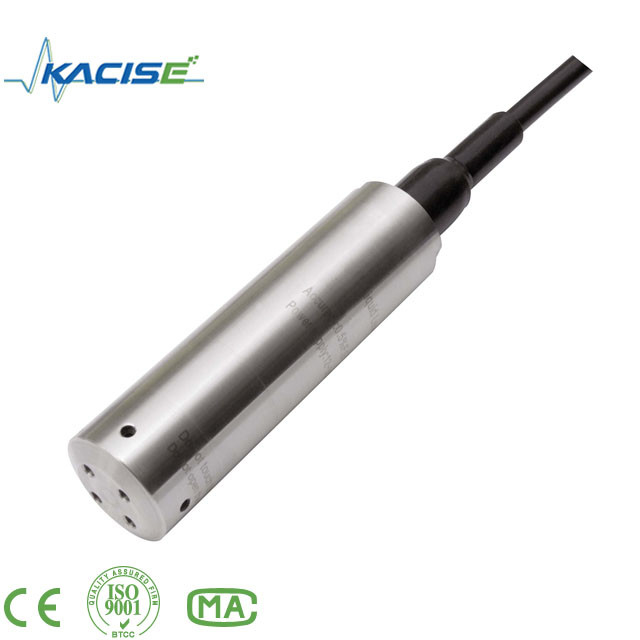

Name: High - quality pressure oil - level sensor with explosion - proof protection level of IP68
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KPS400
Price: 115.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

High - quality pressure oil - level sensor with explosion - proof protection level of IP68

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KPS400

Request A Quote

High - quality pressure oil - level sensor with explosion - proof protection level of IP68

Product Details

Pressure Range:

0~200m

Stability:

≤0.1%/year

Power Supply:

12-30VDC

Protection:

IP68

Environment Temperature:

-10~80°C

Accuracy:

≤0.25%F.S

Overload:

≤200%F.S

Wiring Way:

Cables

Relative Humidity:

0~90%RH

Medium Temperature:

0~60°C

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$50.00 - $180.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Contact Now

Product Description

High - quality pressure oil - level sensor with explosion - proof protection level of IP68

1. Specification:

Spec.	Numerical value			Remark
Pressure range	0~1……500mH2O			1mH2O≈9.81kPa
Overload pressure	1.5times Rated pressure
fracture pressure	3 times rated pressure
Accuracy	0.25%F.S, 0.5%F.S, 1.0%F.S
Accuracy	0.25%F.S, 0.5%F.S, 1.0%F.S
Stability	Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40 °C ~125 °C
compensation temperature	-10°C~70°C
medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
electrical properties	2 line	3 line
Output signal	4~20mA	0~5V	0~10V
Power supplies	10~30Vdc	80~30Vdc/ac	11~30Vdc/ac	Vdc/ac
load resistance	(U-10)/0.02( Ω )	more than 100k Ω
insulation	more than 100M Ω @50V
Electrical Connections	waterproof fixed cable + Two rectangle circle+Sealing Rings+seal gum+ Pure glue protection grade : IP68
pressure interface	G1/4,input type
response time	10ms
Electric strength	500Vac@1 second
Graduate Certificate Programs	certificate of explosion-proof, CE
electromagnetic compatibility	electromagnetic radiation EN50081-1/-2, electromagnetic susceptibilty: EN50082-2
lightning protection	air conduction resistance 8000V,case, cable conduction

High - quality pressure oil - level sensor with explosion - proof protection level of IP68 0

2. Feature :

1). Diffused-Silicon oil filled core

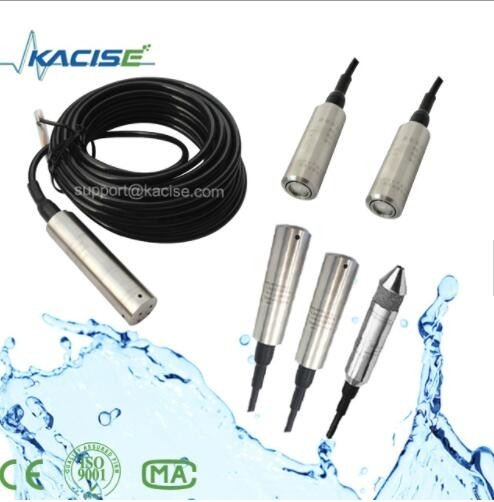

2). All kinds of structure to satisfy different users

3). Easy to use with submersible measuring

4). Multiple pressure range and signal output

5). Non-polar 2 wire system current output

6). Can be used in lightning protection products

7). Reinforcing rib of liquid cable

8). Intrinsically safe explosion proof, Isolation explosion proof, CE

3. Application:

1). Deep well level measuring

2). Hydrologic measurement for river, lake, sea

3). Sewage treatment

4). Cloudy level measuring

5). Fluid reservoir level measuring

6). Water-saving irrigation

7). Circulating liquid consumption monitoring

8). Diversion works

4. Electric connection & structure
