| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXPS series |
| Price: | $100.00 - $390.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 1000 Piece/Pieces per Week negotiable |
| Output: | Optional 0/1-5V 0-10V 4-20mA | Accuracy: | 0.5%F.S, 1%F.S |
|---|---|---|---|
| Name: | Pneumatic Pressure Transmitter | Port: | Shanghai Or Other |
pneumatic pressure transmitter
Spec. | Value | ||
Type | GXPS602A | GXPS602B | GXPS602C |
Pressure range | 0~2MPa……60MPa = 0~290.076PSI…8702.28PSI =0~20BAR…600bar =0~203.893mH2O…6116.2mH2O | ||
Over pressure safe | 1.5 times nominal pressure (1.5X) | ||
Secondary Containment | 3times nominal pressure(3X) | ||
Power | 10~30Vdc | 3.6Vdc battery | |
Electric interface | RS485 Modbus | ||
Static operating current | <15mA | <1mA | |
Accuracy | 0.5% | 1% | |
Output signal | RS485 | ||
Pressure type | Gage pressure, Absolute pressure | ||
Operating temperature | -10°C~60°C | ||
Pressure port | M20×1.5, G1/4, G1/2, NPT1/2 | ||
1. Application
Hydrologic monitoring
Constant pressure water supply
Frequency conversion water supply
Sewage treatment
Water-saving irrigation
Hydroelectric power
Diversion works
2. Introduction:
The characteristics of the GXPS602 pressure transmitter are with high reliability, high stability, the digital output. Widely used in gas, liquid pressure testing, such as water, oil, mildly corrosive liquids and gases. This series of products has 1Cr18Ni9Ti stainless steel structure, RS485 output.
GXPS602A :3.6Vdc battery-powered,selfdefination protocol product.
GXPS602B :3.6Vdc battery-powered, Mod bus-ASCII protocol product
GXPS602C :3.6Vdc battery-powered, Mod bus -ASCII high accuracy protocol product

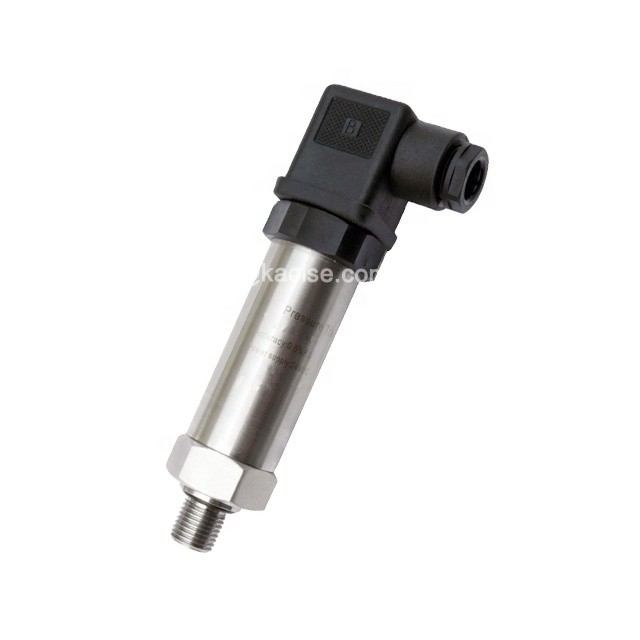

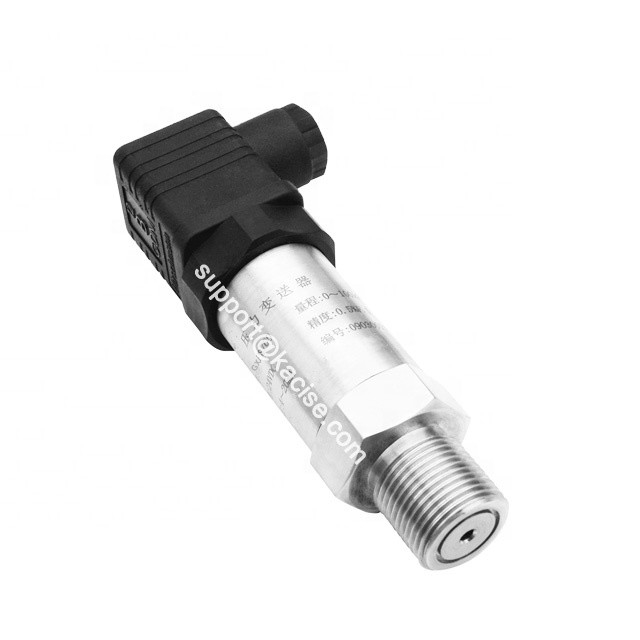

Hurischmann fitting:
1——power
2——power ground
3——RS485+
4——RS485-

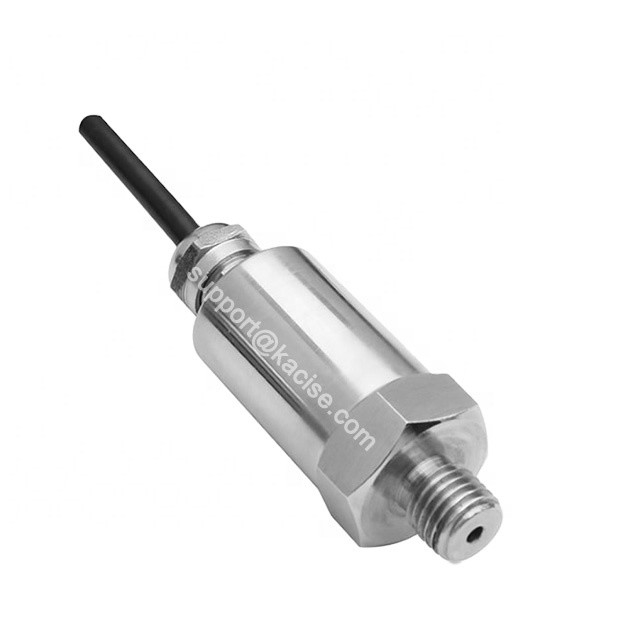

Direct leads electric connection | |
Wiring definition | Cable color |
RS485+ | Yellow |
RS485- | Bule |
Power | Red |
power ground | Black |
Ordering information
GXType—Range—Output—Power—Pressure port – Connection – Cable length—Package –Other
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
