| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | GXPS800H |
| Price: | $150.00 - $290.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog SENSOR | Type: | Water Jet Machine Pressure Transducer |
| Port: | Shanghai Or Other |
Water jet machine pressure transmitter
Feature
Integrated design, all stainless steel welding.
High performance digital processing circuit
Long-term stability, long working life,
Secure and safe in ultra-high pressure
Application
Static pressure machine
Hydraulic machine, hydraulic system
Pressurization system, highpressure pump, petrochemical
Ultra-high pressure industrial equipment
Such as metallurgical machinery, high pressure water jet cutting,
high pressure cleaning, high-pressure food machinery, high pressure water jet etc.
Electronic interface and signals definition
Parameter
Spec. | Numerical value | ||
Pressure range | 0 ~ 150MPa…300MPa…400MPa…600MPa…800MPa…1000MPa…1200MPa…1500MPa | ||
Overload pressure | 120%FS | ||
Secondary containment | 200%FS or 1700MPa,whichever is less | ||
Accuracy | ±0.25%FS,±0.5%FS;±1.0%FS selectable | ||
Stability | Typical range:≤±0.5%FS/year | ||
Operating temperature | -40~+85°C/125°C/250°C selectable | ||
Compensation temperature | -40~+80°C/120°C | ||
transmitter | sensor | ||
Electrical performance | 2 line | 3 line | 4 line |
Output signal | 4~20mA | 0~5VDC 0~10VDC | 0~20mA |
Power supply | 12~36VDC | 12~36VDC | 3~15Vdc |
vibration/Impact | 5-1000Hz amplitude 2mm axes X/Y/Z 30s output dispersion less than 0.1%F.S. | ||
Electrical connection | DIN43650Hirschmann connector(IP65) Air plug Fixed cable(IP67) | ||
Pressure port | M20×1.5,M16×1.5,9/16-18UNF or customized | ||
Ordering information
GX-Type-Range-Output-Accuracy-Power-Cable length- Pressure port- Electric connection

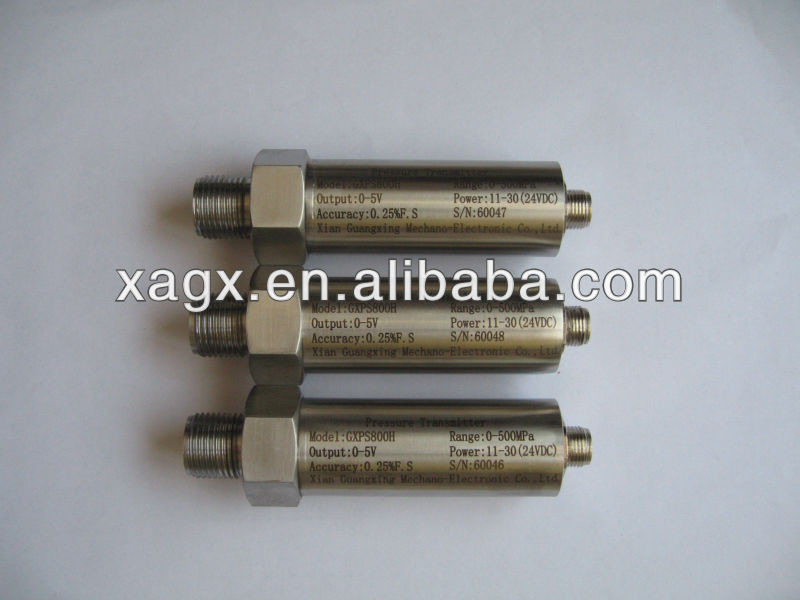

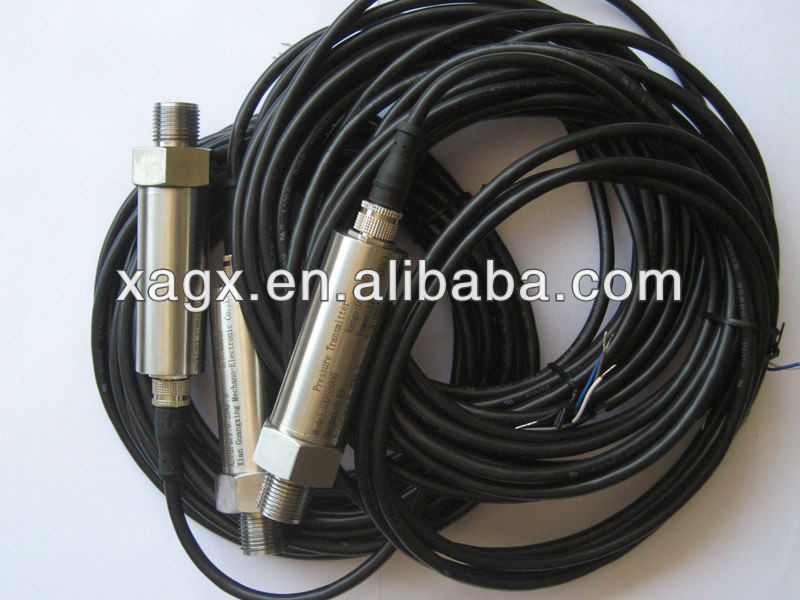

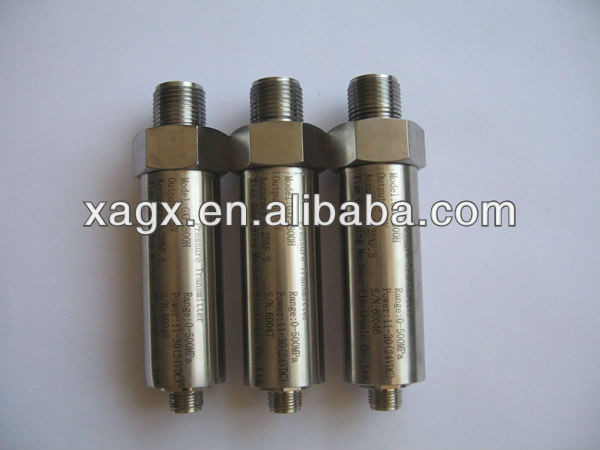

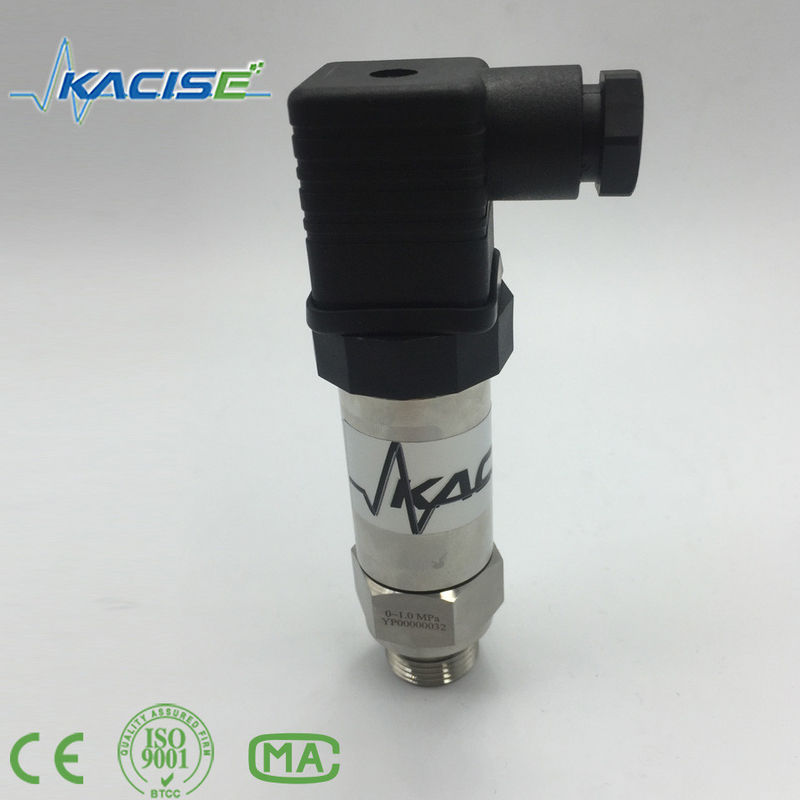

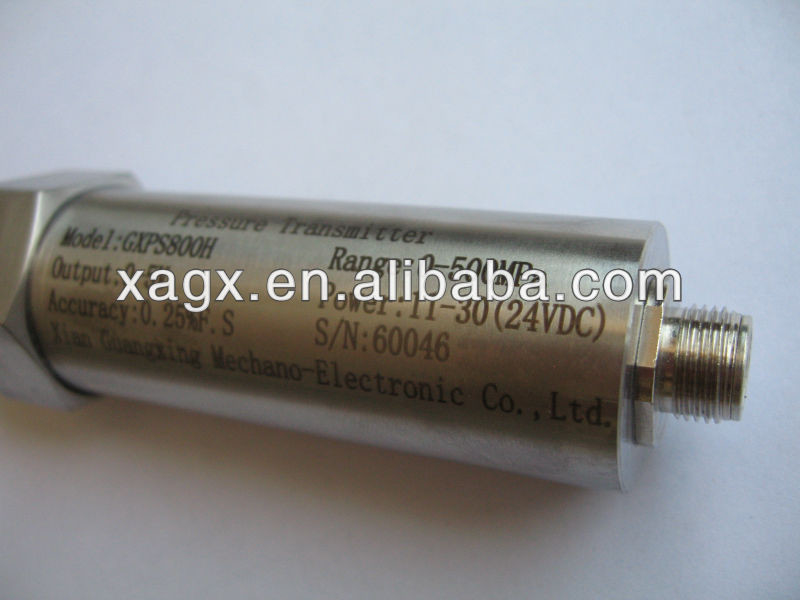

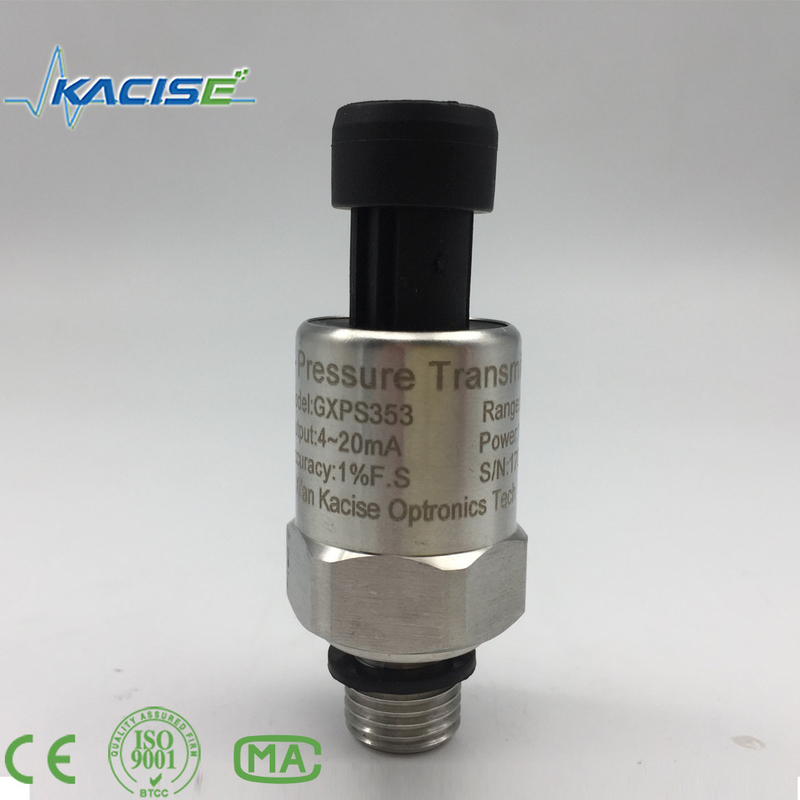

Product picture
