Digital Water Flow Meter Pulse Output

Digital Water Flow Meter Pulse Output

  • Digital Water Flow Meter Pulse Output
Digital Water Flow Meter Pulse Output
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Kacise
Model Number: KUF2000
Payment & Shipping Terms:
Price: $80.00 - $266.00/pieces
Packaging Details: carton or customers requests available
Supply Ability: 500 Piece/Pieces per Month Water Flow Meter Pulse Output
Contact Now
Detailed Product Description
Type: Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, Clamp On Type, Plug In Type, Pipe Type Name: Water Flow Meter Pulse Output
Accuracy: Up To 1.0% Temperature: Customized Available
Principle: Ultrasonic Power Supply: DC8~36V Or AC10~30V
Consumption: 1.5W Pipe Diameter: 15mm~6000mm
Output Signal: 4~20mA Protection Grade: IP68
Port: Shanghai Or Other

Water Flow Meter Pulse Output
The KUF series flow meter is designed to measure the fluid velocity of liquid within a closed conduit.
 Digital Water Flow Meter Pulse Output 0


Introduction

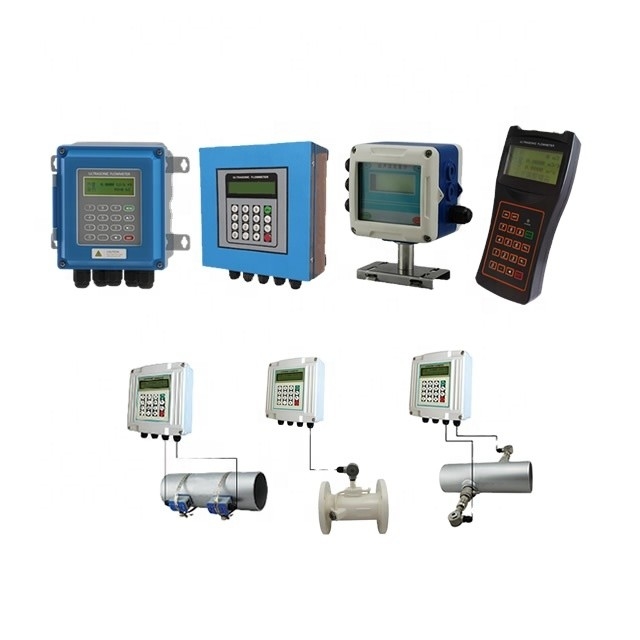

KUF2000 series ultrasonic flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type. It can measure heat if contact temperature sensor.

Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.

Insertion typeOnly two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.

Inline pipe typeDN15-32 pipes uses π shape inline pipe sensor,  DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.



Parameters

Items

Specifications

Main unit

Accuracy

Better than ±1%

Repeatability

Better than 0.2%

Principle

Transit-time measuring principle

Measurement

Period

500ms

Display

LCD with backlight,display accumulated flow/heat, instantaneous flow/heat, velocity, time etc.



Output

Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%.

OCT output: Frequency signal (1~9999HZ)

Relay output: over 20 source signal (no signal, reverse flow etc.)

RS485 serial port



Input

Three analogue input

Three-wire PT100 resistor input (optional)

Other functions

Automatically record the totaliser data of the last 64 days / 64 months / 5 years;

The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation

The instrument working status of the last 64 days

pipe

material

Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed

Size

15-6000mm

Straight pipe section

In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter)

Liquid

Types

Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid

Temperature

Standard: -30°c - 90°c ,High-temperature:-30°c- 160°c

Turbidity

Less than 10000ppm, with a little bubble



Flow Direction

Bi-directional measuring, net flow/heat measuring

Environment

Temperature

Main Unit: -30°c - 80°c

Transducer: -40°C -110°C, Temperature transducer: select on enquiry

Humidity

Main Unit: 85% RH

Transducer: water-immersible, water depth less than 3m

Power Supply

DC8~36V or AC85~264V

Protocols

MODBUS, M-BUS, Fuji extended protocol and other factory protocol



Optional Flow Meter Main Unit

Digital Water Flow Meter Pulse Output 2



Production Flow

Digital Water Flow Meter Pulse Output 3

Packaging & Shipping

Digital Water Flow Meter Pulse Output 4

Applications

Digital Water Flow Meter Pulse Output 5

Certifications

Digital Water Flow Meter Pulse Output 6





Company Information

Digital Water Flow Meter Pulse Output 7



FAQ

1. Q: What information need to be provided to choose the suitable model?

    A: Please provide us: application fieldpipe size , pipe materialmedium( liquid type),

         temperatureinstallation method, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

        OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

    A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

         For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

        And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty for the vegetable oil flow meter?

    A: Yes, we have the warranty of 12 months.
