Name: best-selling micro/low Differential pressure sensor with warranty 12 months exchange
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXSENSORS-PS540
Price: 61.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

best-selling micro/low Differential pressure sensor with warranty 12 months exchange

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

GXSENSORS-PS540

Chat Now

best-selling micro/low Differential pressure sensor with warranty 12 months exchange

Product Details

Usage:

PRESSURE SENSOR

Theory:

Resistance Sensor

Output:

Analog SENSOR

Certificate::

Warranty:

12 Months Exchange

Type:

Micro/low Differential Pressure Sensor

Port:

Shanghai Or Other

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$55.00 - $68.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Chat Now

Product Description

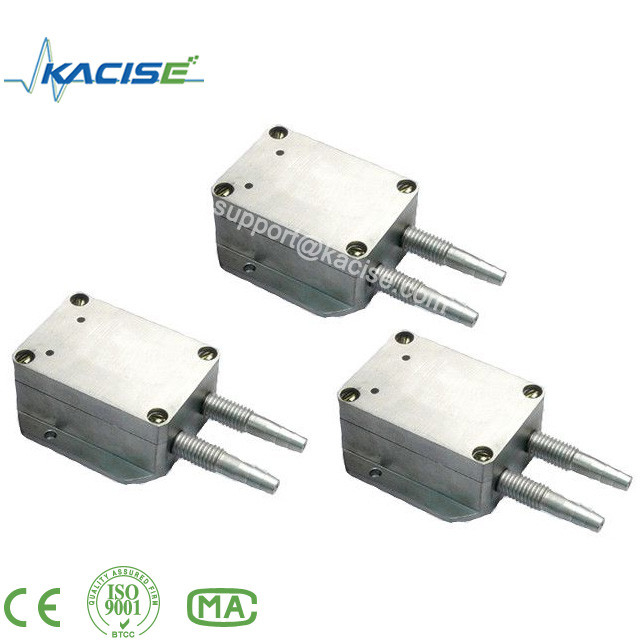

micro/low Differential pressure sensor

Feature

High sensitivity

High accuracy and high stability

Mini outline, easy to install

Application

Boiler

Dust precipitator

Air duct pressure

Differential and negativepressure

Instruction

GXPS540 Wind Pressure & Differential Pressure Transmitter adopts high-precision, high stability diaphragm and is assembled by stress isolation technics. By strict precision temperature compensation and signal amplification, transfer micro differential pressure, air pressure, flow and other parameters to reliable 4~20mA or 1~5V signal output.

Parameter

Measuring range:	0-100Pa~100Kpa; -50KPa~-50Pa-50Pa~50Kpa
Protection:	IP65
Medium Measurement:	Non-corrosive dry gas; weak corrosive and damp gas
Output signal:	4~20mA, 1~5V, 0~5V Optional
Operating voltage:	24VDC
Accuracy:	±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional
Adjustment	Zero and range are adjustable externally
Medium temperature:	-10~100°C
Ambient temperature :	-20~80°C
Electric Interface:	outlet cable
Shell material:	Aluminum alloy

Dimension

best-selling micro/low Differential pressure sensor with warranty 12 months exchange 0

Ordering information

GXPS540						Product Serial
	X (Pa or KPa)					Pressure Range
		0.3				±0.3%FS Accuracy
		0.5				±0.5%FS Accuracy
		1.0				±1%FS Accuracy
			4mA			4~20mA Output
			V0			0~5VDC Output
			V1			1~5VDC Output
			RSV			reserved
				F8		Φ8 tower-type interface
				RSV		reserved
					CX	X meters Cable
					RSV	reserved
GXPS540	1KPa	0.3	4mA	F6	C2	Example

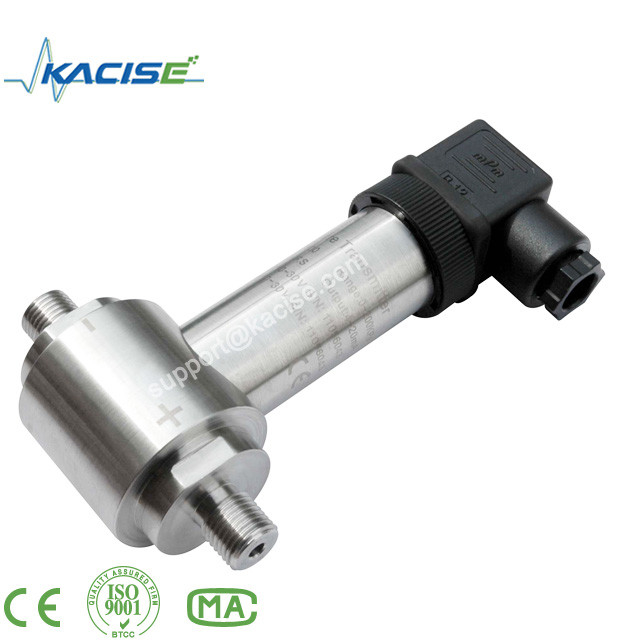

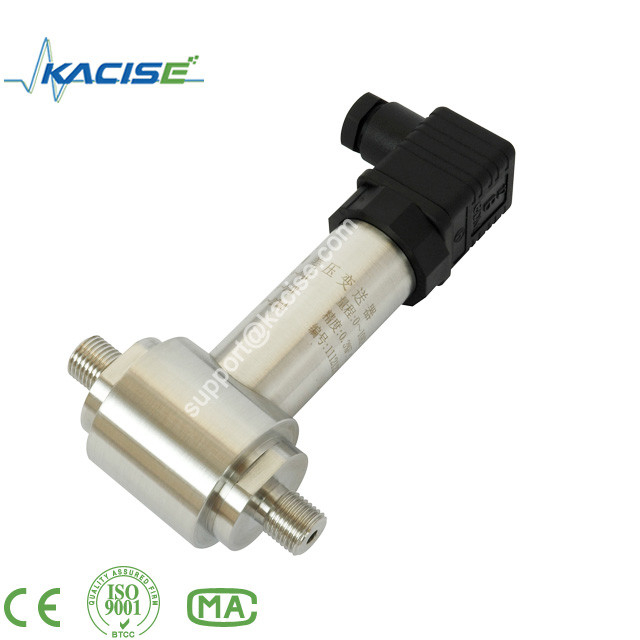

Other Differential pressure sensors for your choice
