Wireless High Pressure Portable Ultrasonic Hydraulic Flow Meter with Up to 1.0% Accuracy

Smart ultrasonic flow meter can be used to measure various kind of fluid in the application field of tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy indurstry.

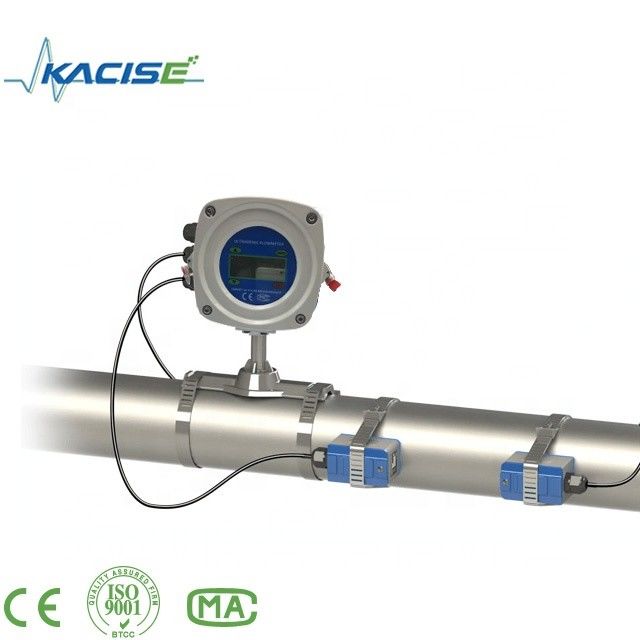

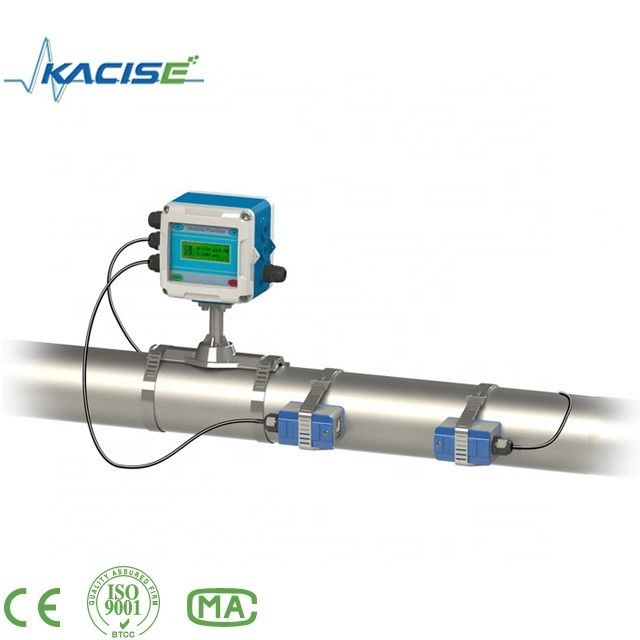

Both sensors and the host can be installed at the pipe. also can be used as calorimeter

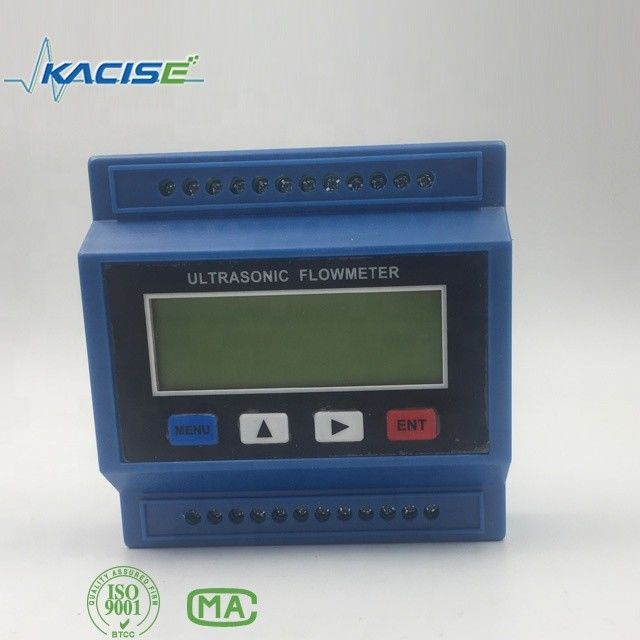

GXUF-2000 series flow meter usually is used to long-term measure at field. It's easy to use and easy to repairing without cut off the piple,without turn off the fluid.Both the sensor and the host can be installed on the pipes. The protect grade is Ip68, can be used as calorimeter, if the temperature sensor added

Clamp on type, Plug in type, Pipe type

• High flow accuracy
  Up to1%
• Wide range
  Suitable for the pipe with Dn15 toDN6000
• High reliability
  working life up to 10 years
• Robust design
  Differential signal driver and reciever, immune to low frequency transformer and Tv signal and power transmission.
• Huge storage function
  Support 512 days and 128 months and 10 years accumulated flow result,Auto save 64 times power on and off time and flow rate.
  Auto save 32 days work status of the meter
• Remote transmission and net work transmission
  Rs485 interface support Mod-bus protocol and easy to support GPRS or Zigbee networking
• Easy to used for calorimeter
  Can be used as Calorimeter after the temperature sensor installtion

sensors selection depend on the application field parameters such as the diameter of the pipe the fix method the kind of the flow back view of terminal pole front view with cover off back view with cover off 5 Powermodule(optional):AC85-265V Front view. Please refer to the fix method choice chapter for details

Picture	Description	Type No.	Piperange	Temp	Fix con	Accuracy
	3-wire PT100 clamp on type	TPT1	>DN50	40~160°C	easy	100°C±0.8°C<0.1°C
	3-wire PT100 Plug in type	PPT1	>DN50	40~160°C	shut flow down
	3-wire PT100 without pressure loss plug in type	LPT 3	>DN50	40~160°C	easy
	mini 3-wire PT100 plug in type	MPT 3	>DN50	40~160°C	shut flow down

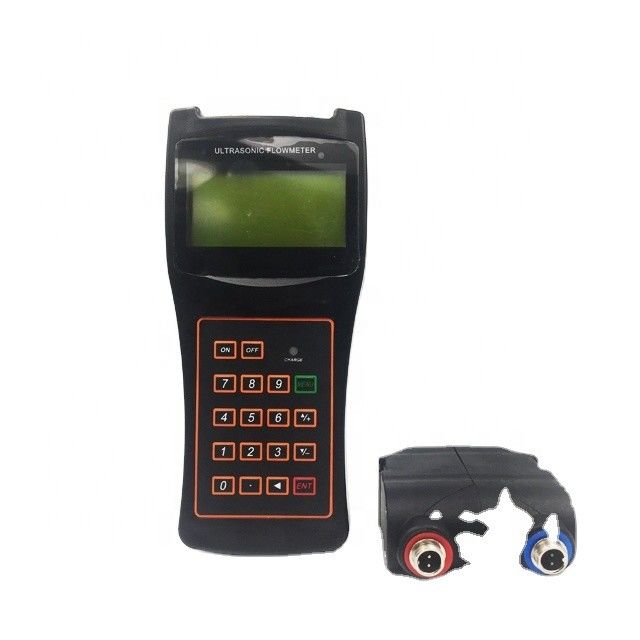

Handled type Ultrasonic flowmeter

1. Handle Ultrosonic Flowmeter
2. Repeatability 0.2%
3. Accuracy better than 1%
4. Size:210*90*30mm
5. Lin:0.5%

1. High-precision measurement, measurement accuracy better than ± 1%, linearity 0.5%, 0.2% repeatability
2. Small size, light weight, volume: 210 × 90 × 30mm, weighs only 0.5kg
3. Non-contact measurement, ultrasonic flowmeter sensor with magnetic absorption in the pipe wall to complete the flow measurement
4. Large measurement range, the choice of different types of sensors can be realized DN20 ~ DN6000 diameter pipeline flow measurement
5. Charging power supply, built-in high-capacity NiMH rechargeable batteries, can support more than 12 hours of continuous work flow

Water supply Heat supply Intelligent building Metallurgy Peroleum Powersupply

Packaing Detail: Standard export carton or wooden box.
