| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXPS series |
| Price: | $120.00 - $390.00/pieces |
|---|---|
| Packaging Details: | 1pc/box, many boxes per carton, or customized available |
| Supply Ability: | 1000 Set/Sets per Week Wireless Pressure Transducer |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog SENSOR | Name: | Wireless Low Power Dissipation Pressure Transducer |
| Range: | 0~0.2MPa......60MPa | Accuracy: | ±0.5%, 0.25% |
| Operate Temp.: | -10°C~60°C | Power: | 3.6V/1bettery(1 Pcs) |
| Process Connection: | M20x1.5,G1/4,G1/2,R1/2,NPT1/2 | Pressure Type: | Gauge,compound Gauge |
| Port: | Shanghai Or Other |

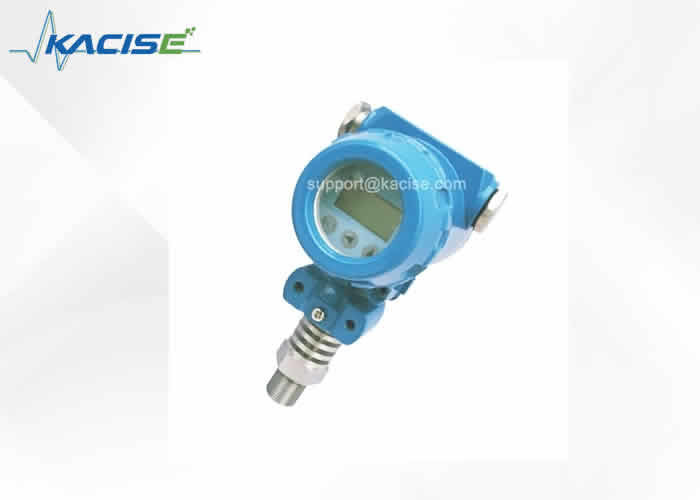

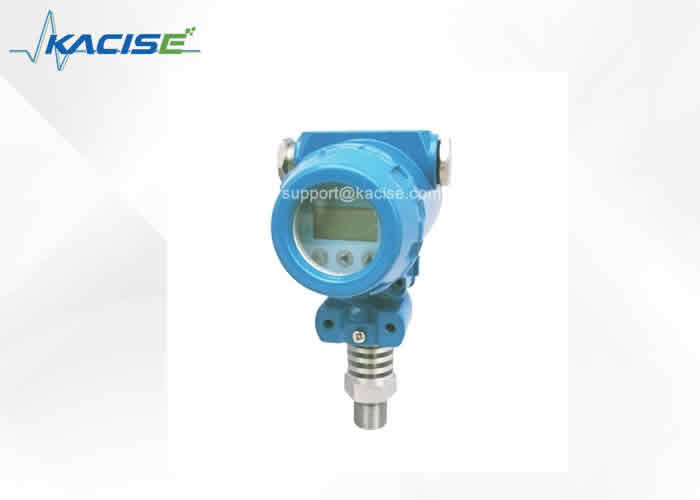

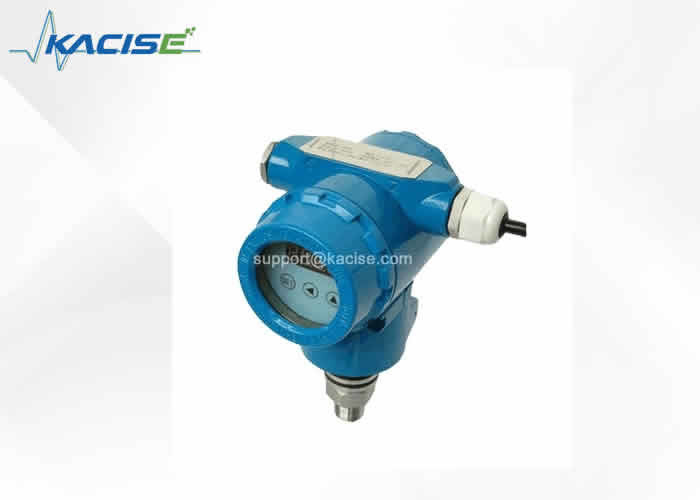

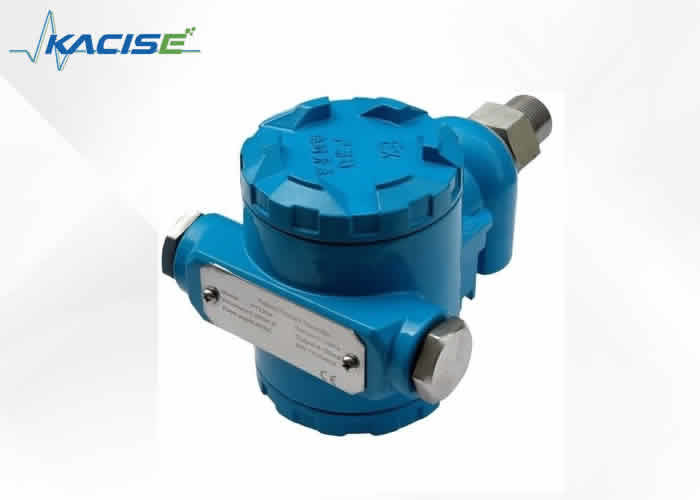

GXPS608 Wireless Low Power Dissipation Pressure Transducer
Application
Special for pipeline pressure monitoring in wild field or non power distribution
Used in metallurgical industry and chemical industry
Introduction
GXPS608 Low Power wireless pressure transducer serial is a very popular serial. It use the 1# battery dry cell to supply the power. Can display the pressure figures with LED. Zigbee wireless communication is embedded, so it can join in a Zigbee Mesh network automatically.
Electronic interface and signals definition
Parameter
Spec. | Value | |||
Type | GXPS608A | GXPS608B | ||
Pressure range | 0~0.2MPa......60MPa | |||
Over pressure safe | 1.5 times span of nominal value | |||
Secondary Containment | 3 times span of nominal value | |||
Accuracy | ±0.5% of F.S | |||
Long term stability | 0.25%F.S/Year | |||
Operate temperature | -10°C~60°C | |||
Compensated temperature range | -10°C~60°C | |||
media | compatible with Stainless Steel 1Cr18Ni9Ti | |||
Data transmission channel | Wireless ZIGBEE | |||
Power supply | 3.6V/1bettery(1 pcs) | |||
Minimum isolation between case and terminations | 100M Ω@50V | |||
Surge immunity | 500V@60 second | |||
Shock and vibration | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
Display panel | No display | 0.001~999999 | ||
Pressure Port: | M20×1.5,G1/4,G1/2,R1/2,NPT1/2 | |||
Pressure type | Gauge,compound Gauge | React time:10ms | ||
EMI/EMC | EMI:EN50081-1/-2;EMC:EN50082-2 | |||
Package: Bb, Foam
